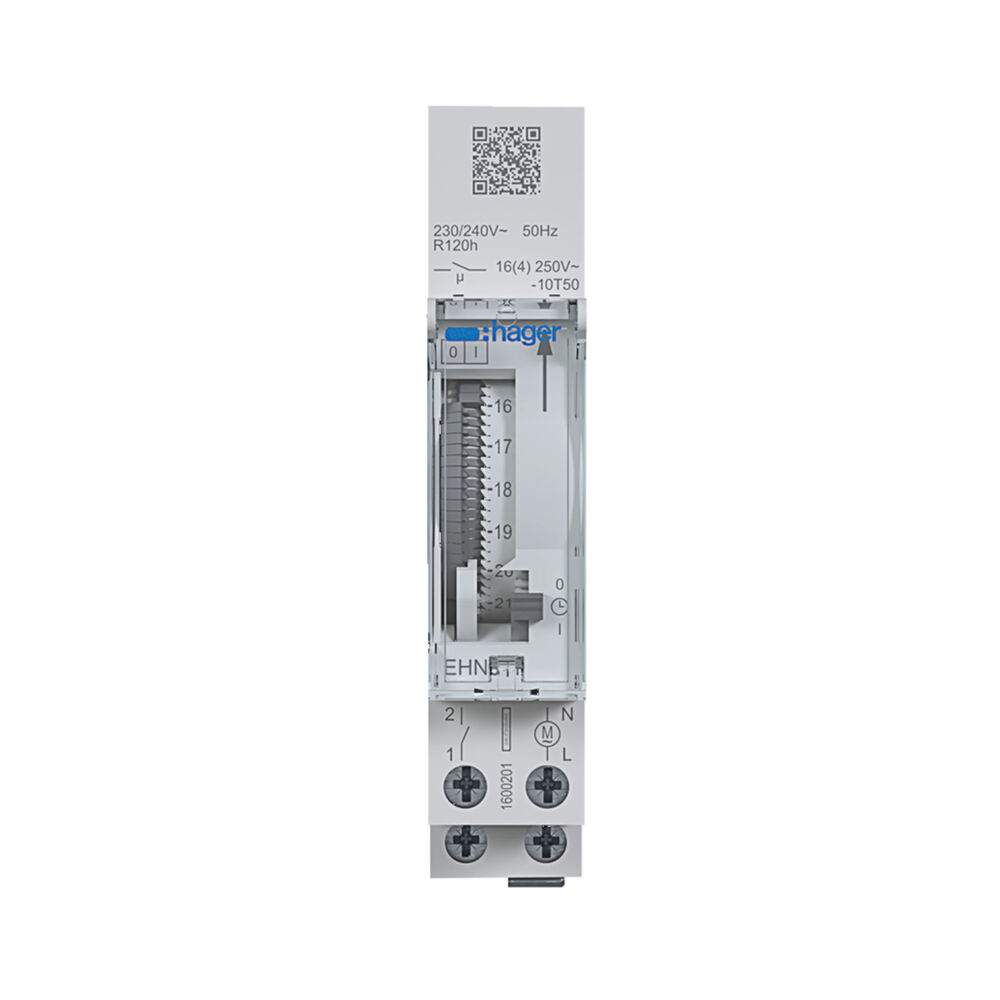

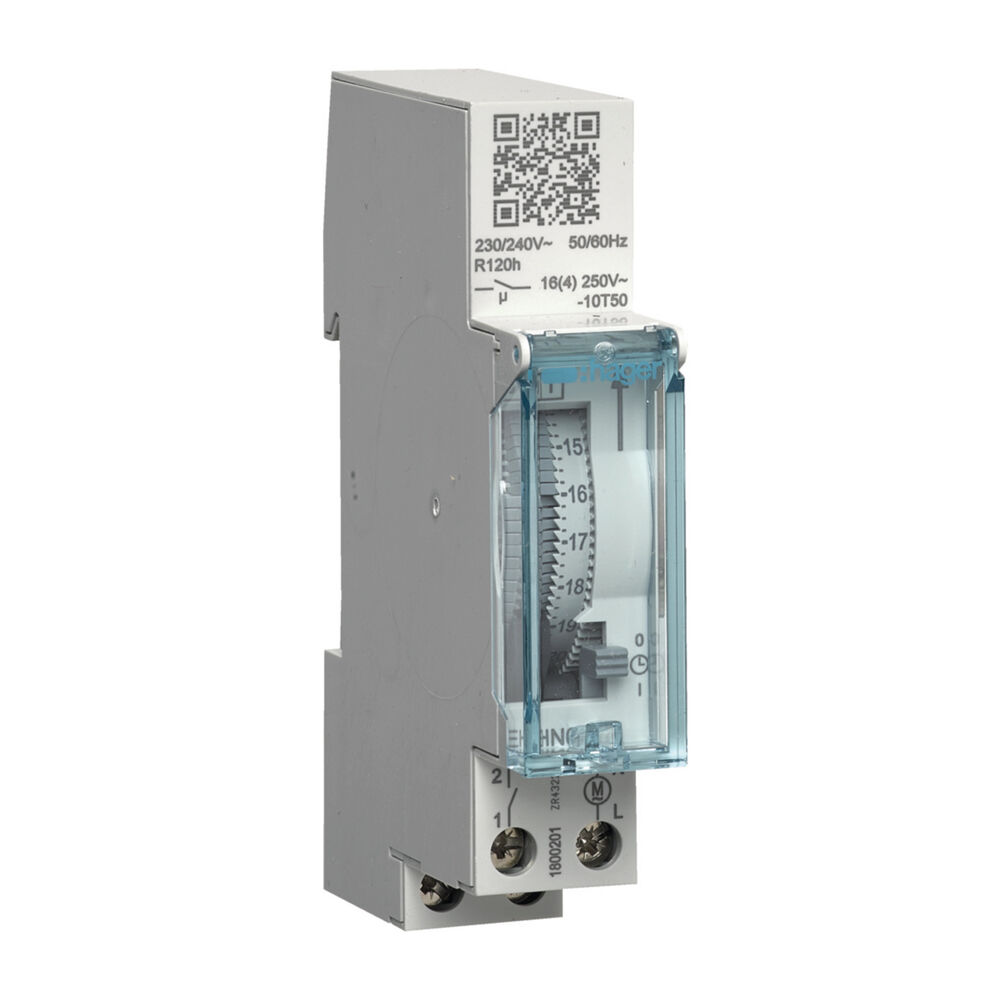

The Hager EHN011 is a reliable and efficient analogue time switch designed for daily cycle operations. With its 16A switching capacity and built-in battery reserve, it ensures consistent performance even during power interruptions, making it ideal for various residential and commercial applications.

Key Features:

  • Daily Programming: Allows up to 96 switching operations per day with 15-minute intervals, providing precise control over connected devices.
  • Battery Reserve: Equipped with a 200-hour battery backup, maintaining programmed settings during power outages.
  • DIN Rail Mounting: Compact 1-module width design for easy installation on standard DIN rails.
  • Manual Override: Features a slide switch for manual control, offering ON, OFF, and AUTO modes.
  • Versatile Applications: Suitable for controlling lighting, heating systems, ventilation, and other electrical devices.

Specifications:

  • Model Number: EHN011
  • Operating Voltage: 230/240V AC
  • Frequency: 50/60 Hz
  • Switching Capacity: 16A (AC1)
  • Switching Contacts: 1 x Normally Open (NO)
  • Minimum Switching Interval: 15 minutes
  • Power Consumption: 0.5 W
  • Operating Temperature Range: -10°C to +50°C
  • Dimensions (H x W x D): 90mm x 17.5mm x 60mm
  • Mounting: DIN rail (1 module width)
  • Battery Reserve Duration: Approximately 200 hours

Applications:

  • Lighting Control: Automate indoor and outdoor lighting schedules for energy efficiency.
  • Heating Systems: Manage electric heaters or underfloor heating systems based on daily routines.
  • Ventilation: Schedule exhaust fans or ventilation systems in commercial or residential settings.
  • Appliance Management: Control devices like water heaters, pumps, or signage to operate during specific times.

The Hager EHN011 Analogue Timer offers a dependable solution for automating daily electrical operations. Its robust design, combined with user-friendly programming and a reliable battery backup, ensures uninterrupted performance, making it a valuable addition to any electrical setup.

Q: Can the EHN011 be used for both resistive and inductive loads?
A: Yes, it is suitable for resistive loads up to 16A (AC1). For inductive loads, it's recommended to use an appropriate contactor to prevent potential damage.

Q: How do I program the timer?
A: The timer features 96 tappets on its dial, each representing a 15-minute interval. Push the tappets outward for ON periods and inward for OFF periods.

Q: What happens during a power outage?
A: The built-in battery reserve maintains the programmed settings for up to 200 hours, ensuring the timer resumes normal operation once power is restored.

Q: Is the EHN011 suitable for outdoor use?
A: The EHN011 is designed for indoor installations. If outdoor use is required, it should be housed within a suitable weatherproof enclosure.

All products must be installed by a licensed electrican. DIY electrical work is illegal and very dangerous.

Change of Mind
All products purchased from MJS Electrical Products & Supplies are backed by a thirty (30) day Peace of Mind Return Policy. All products returned must be in perfect unused condition, with all components, complete with original packaging. We will not allow returns on damaged or incomplete products. Proof of purchase is required. Should the product not be in original condition, please contact us before returning it as this may save you some unnecessary costs.

Damaged / Faulty Goods
If you find that the goods were damaged in transit or were faulty in some manner, please contact us within 24 hours of receiving the goods. We will organise for the return of the goods and arrange a credit towards your next purchase or send a replacement product. Customer will incur the cost of return postage and be credited the purchase price only. We recommend that you return your unwanted items using registered post or trackable courier. We can not be held responsible if returned items are lost in transit.

Warranties
Product warranties are governed by the respective manufacturers and / or suppliers warranty terms and conditions (available on request). We will not be liable to you or any third party for any loss suffered due to product failure. We will process product warranty claims through the respective manufacturers and/or suppliers. All warranties are void if the product is not installed by a licensed electrician.

Amp 16A
Voltage 240V AC
IP Rating IP20
Mounting Din Rail
Contact Configuration 1 x NO
PRODUCT INFO
SKU HAEHN011
Model # EHN011
Barcode # 3250617201063
Brand Hager
SHIPPING INFO
Shipping Weight 0.0900kg
Shipping Width 0.095m
Shipping Height 0.020m
Shipping Length 0.080m
