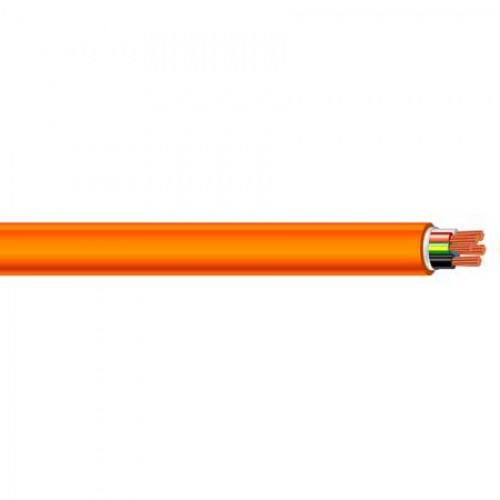

Buy exactly what the job needs with this 10.0mm² 4 Core + Earth Orange Circular cable, which is priced per metre. It is a heavy three-phase cable with three actives, a neutral and an earth, well suited to individual submains, machine supplies and switchboard connections where a full roll would be wasted.

Each core is X-90 XLPE insulated, with red, white and blue actives, a black neutral and a green/yellow earth, all protected by a tough orange 5V-90 PVC sheath. With a 0.6/1kV rating and a 90°C maximum conductor temperature, it handles demanding three-phase work in workshops, factories and commercial premises. The circular build makes gland terminations and conduit pulls straightforward.

Key Features

  • Per Metre Pricing – Cover a single run without paying for a whole drum.
  • 10.0mm² Conductors – Mid-range capacity for medium three-phase loads.
  • 4 Core + Earth – Three actives and a neutral with an integral earth core.
  • X-90 XLPE Cores – Cross-linked insulation with excellent heat resistance.
  • Phase-Coded Cores – Red, white and blue actives, black neutral and green/yellow earth.
  • 0.6/1kV Rating – Suited to three-phase mains and submain installations.
  • Durable Orange Sheath – 5V-90 PVC protection that is easy to spot on site.
  • Round Profile – Glands neatly at switchboards, isolators and equipment.

Specifications

  • Model: OC1004CE
  • Conductor Size: 10.0mm²
  • Cores: Three actives, neutral and earth
  • Conductor: Plain annealed copper, stranded
  • Core Colours: Red, white and blue (actives), black (neutral), green/yellow (earth)
  • Insulation: X-90 XLPE
  • Sheath: 5V-90 PVC
  • Sheath Colour: Orange
  • Max Conductor Temperature: 90°C
  • Voltage Rating: 0.6/1kV
  • Standard: AS/NZS 5000.1
  • Length: Sold per metre

Applications

  • Individual three-phase submains to sheds, workshops and sub-boards
  • Connections to three-phase machinery, pumps and air conditioning plant
  • Replacement of damaged or undersized three-phase cable runs

Sold by the metre, the OC1004CE 10.0mm² 4 Core + Earth Orange Circular delivers XLPE insulated three-phase cores, a 0.6/1kV rating and a tough orange sheath in exactly the length you need. It is a practical, cost-effective option for one-off three-phase runs.

Q. Is this sold by the metre?
A. Yes. The price is per metre, so the quantity ordered is the length you receive. Full 100m, 300m and 500m rolls are also listed separately.

Q. Is this suitable for single-phase circuits?
A. This cable is designed for three-phase circuits, with three actives and a neutral. For single-phase supplies, a 2 Core + Earth orange circular cable (active, neutral and earth) is usually the better choice.

Q. What voltage is it rated for?
A. It is rated 0.6/1kV, suitable for standard 230/400V low-voltage installations. Always confirm cable sizing for the load, run length and installation method under AS/NZS 3008.1.1.

All products must be installed by a licensed electrican. DIY electrical work is illegal and very dangerous.
