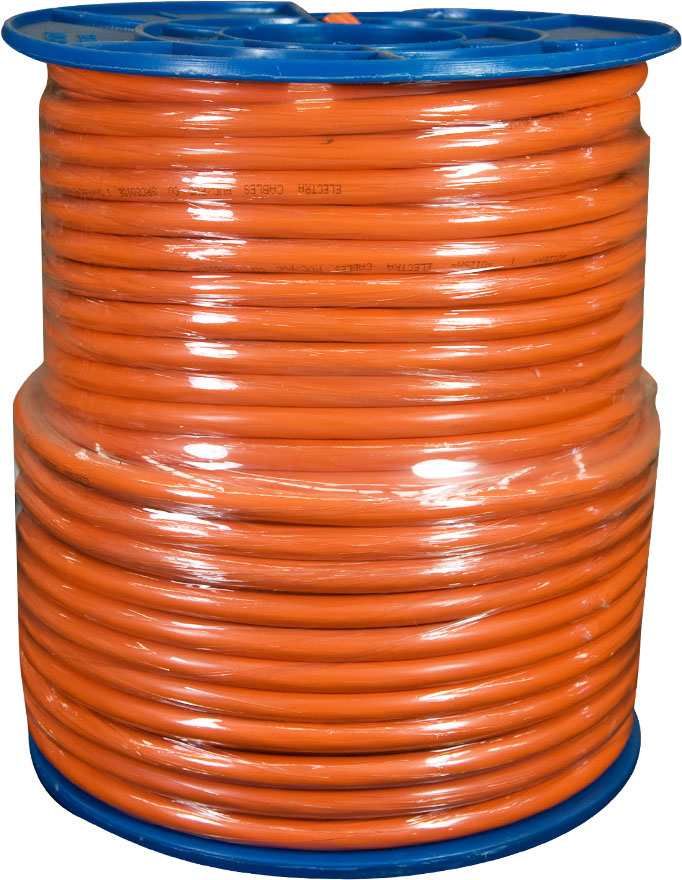

Built for heavier three-phase work, this 16.0mm² 4 Core + Earth Orange Circular cable comes on a 100 metre roll, with 200m, 250m, 300m and 500m cut lengths available on enquiry. It packs three actives, a neutral and an earth into one tough round cable for submains and large equipment supplies.

Its 7/1.70mm stranded copper cores are insulated with X-90 XLPE and joined by a 6mm² earth under an orange 5V-90 PVC sheath, giving a cable of roughly 21mm diameter. It is rated 0.6/1kV with a 90°C maximum conductor temperature, and its round profile glands cleanly into switchboards and plant. It is a staple size for factories, warehouses, commercial buildings and multi-unit developments.

Key Features

• Full 100m Roll – Suits multiple submains or long three-phase runs, with longer cuts on request.
• 16.0mm² Cores – Generous capacity for heavier three-phase loads.
• Three-Phase Configuration – Three actives and a neutral plus an integral earth.
• 6mm² Earth – Built into the cable, so no separate earth run is needed.
• XLPE Insulated – X-90 cross-linked insulation for reliable performance under load.
• Clear Phase Identification – Red, white and blue actives, black neutral and green/yellow earth.
• 0.6/1kV Rated – Designed for low-voltage mains and submains.
• Robust Orange Sheath – 5V-90 PVC for mechanical toughness and easy identification.
• Approximately 21mm Diameter – A round profile suited to glands and conduit.

Specifications

• Model: OC1604CE
• Conductor Size: 16.0mm²
• Cores: Three actives, neutral and earth
• Conductor: Plain annealed copper, stranded 7/1.70mm
• Earth Size: 6mm²
• Core Colours: Red, white and blue (actives), black (neutral), green/yellow (earth)
• Insulation: X-90 XLPE
• Sheath: 5V-90 PVC
• Sheath Colour: Orange
• Overall Diameter: 21.0mm (±10%)
• Max Conductor Temperature: 90°C
• Voltage Rating: 0.6/1kV
• Standard: AS/NZS 5000.1
• Length: 100m roll (200m, 250m, 300m and 500m cuts on enquiry)

Applications

• Three-phase submains in factories, warehouses and commercial buildings
• Main switchboard to sub-board feeds in multi-unit developments
• Supplies to large three-phase motors and plant

Combining 16.0mm² XLPE insulated cores, a 6mm² earth and a heavy-duty orange sheath, the OC1604CE 4 Core + Earth Orange Circular 100m roll is ready for serious three-phase installations. It is an ideal roll for contractors who regularly run submains, with longer cut lengths available when a project needs them.
