This 16mm² XLPE Single Core cable is a single core, double insulated copper cable sold per metre, so you can order exactly the length the job needs. It is built for consumer mains, submains and other high-current circuits, where its XLPE insulation gives higher current ratings than an equivalent PVC-insulated cable.

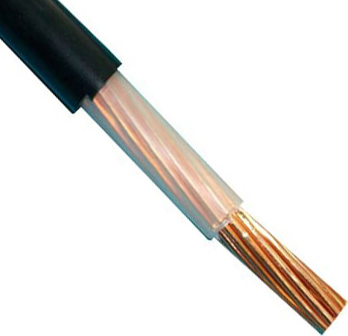

A 7/1.70mm stranded copper conductor is insulated with X-90 XLPE and protected by a black 5V-90 PVC sheath. The result is a cable of about 9.3mm diameter rated 0.6/1kV with a 90°C maximum conductor temperature.

Key Features

  • Sold Per Metre – Order only the length the run needs.
  • 16mm² Copper Conductor – Sized for mains, submains and high-current circuits.
  • X-90 XLPE Insulation – Higher current ratings than an equivalent PVC cable.
  • Double Insulated – XLPE insulation plus a black 5V-90 PVC sheath.
  • 0.6/1kV Rating – Suited to low-voltage mains and distribution work.
  • Stranded 7/1.70mm – Easier to handle and terminate than a solid conductor.
  • 90°C Rated – A 90°C maximum conductor temperature.
  • Compact 9.3mm Diameter – Easy to pull through conduit and glands.

Specifications

  • Conductor Size: 16mm²
  • Cores: Single core
  • Conductor: Plain annealed copper, stranded 7/1.70mm
  • Insulation: X-90 XLPE
  • Sheath: 5V-90 PVC
  • Sheath Colour: Black
  • Overall Diameter: 9.3mm (±10%)
  • Max Conductor Temperature: 90°C
  • Voltage Rating: 0.6/1kV
  • Standard: AS/NZS 5000.1
  • Current Rating: 78A three-phase / 86A single-phase in conduit in air; 89A three-phase / 105A single-phase buried in ducts
  • Length: Sold per metre

Applications

  • Consumer mains from the point of supply to the main switchboard
  • Submains to sub-boards, sheds and outbuildings
  • High-current circuits run in conduit or underground ducts

The 16mm² XLPE Single Core (per metre) combines a 7/1.70mm copper conductor, X-90 XLPE insulation and a black PVC sheath with a 0.6/1kV rating, cut to the length you order for mains and submain runs.

Q. Is this sold by the metre?
A. Yes. The price is per metre, so the quantity you order is the length you receive. 100m and 500m rolls are also listed for larger jobs.

Q. What is the current rating of 16mm XLPE single core?
A. It is rated at 78A three-phase / 86A single-phase in conduit in air, and 89A three-phase / 105A single-phase buried in ducts. Always size the cable under AS/NZS 3008.1.1 for the installation method, grouping and voltage drop.

Q. Why choose XLPE over PVC insulated cable?
A. XLPE insulation gives higher current ratings than an equivalent PVC cable, which often allows a smaller conductor for the same load.
