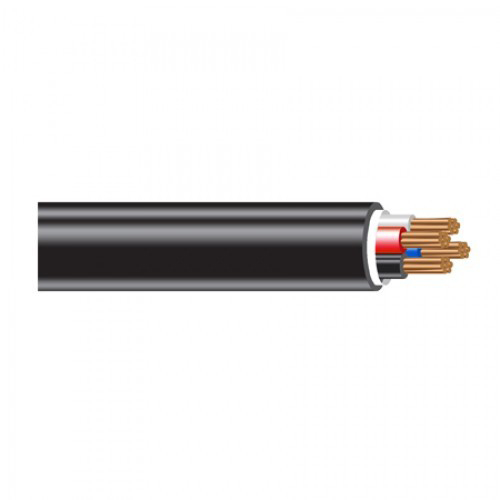

This 25mm² XLPE Four Core mains cable is a heavy-duty copper power cable sold by the metre, made for three-phase mains and submains where a separate earth is run. It carries three actives and a neutral in one round cable, with no integral earth, so you can order exactly the length the installation requires.

The stranded plain annealed copper cores are insulated with X-90 XLPE and protected by a black 5V-90 PVC sheath, giving a cable of about 27.5mm diameter rated 0.6/1kV with a 90°C maximum conductor temperature. This style of XLPE mains cable is widely used for low-voltage underground distribution and consumer mains, installed enclosed or unenclosed, in conduit, buried direct or in ducts where it is not subject to mechanical stress.

Key Features

  • Sold Per Metre – Order the exact mains length needed, with cut lengths to suit the job.
  • 25mm² Copper Conductors – High current capacity for three-phase mains and submains.
  • Four Cores, No Earth – Three actives and a neutral, for installations where the earth is run separately.
  • X-90 XLPE Insulation – Cross-linked insulation with excellent thermal performance.
  • Black 5V-90 PVC Sheath – A tough outer sheath for underground and general installation.
  • 0.6/1kV Rating – Suited to low-voltage mains and distribution work.
  • Phase Colour Coding – Red, white and blue actives with a black neutral.
  • Versatile Installation – Suits conduit, ducts, direct buried and unenclosed runs where not subject to mechanical stress.

Specifications

  • Conductor Size: 25mm²
  • Cores: Three actives and neutral (no earth)
  • Conductor: Plain annealed copper, stranded
  • Core Colours: Red, white and blue (actives), black (neutral)
  • Insulation: X-90 XLPE
  • Sheath: 5V-90 PVC
  • Sheath Colour: Black
  • Overall Diameter: 27.5mm (±10%)
  • Max Conductor Temperature: 90°C
  • Voltage Rating: 0.6/1kV
  • Standard: AS/NZS 5000.1 and AS/NZS 4026
  • Length: Sold per metre

Applications

  • Three-phase consumer mains from the point of supply to the main switchboard
  • Underground submains in conduit or ducts between buildings
  • Three-phase feeds to commercial and industrial distribution boards

The 25mm XLPE Four Core mains cable combines 25mm² stranded copper, X-90 XLPE insulation and a durable black PVC sheath with a 0.6/1kV rating. Sold by the metre, it is a cost-effective choice for three-phase mains and submains where the earth is installed separately.

Q. Does this cable include an earth?
A. No. This is a four core cable with no earth, made up of three actives and a neutral. A separate earth conductor must be installed where required by AS/NZS 3000.

Q. Is it priced per metre?
A. Yes. The price is per metre. A cutting fee or drum charge may apply for non-standard lengths.

Q. Can it be installed underground?
A. Yes. XLPE mains cable of this type can be installed in conduit, in ducts or buried direct where it is not subject to mechanical stress. Always follow AS/NZS 3000 and your local network's service rules for depth, enclosure and marking requirements.

Q. How is this different from 25mm 4 Core + Earth orange circular?
A. This cable has no integral earth and a black sheath, while 4 Core + Earth orange circular includes an earth core within an orange sheath. Choose based on whether your installation design calls for a separate earth conductor.

All products must be installed by a licensed electrican. DIY electrical work is illegal and very dangerous.
