The 3A Lighting ATLAS 4 (DL1560-WH5C10S01) is a premium 13W LED downlight kit offering excellent energy efficiency, modern style, and versatile lighting performance. With triac dimming, five selectable colour temperatures, and an anti-glare diffuser, this downlight delivers tailored lighting for any room—enhanced by a clean white finish that blends seamlessly with most ceiling types.

Built to suit both residential and commercial applications, the ATLAS 4 features an IP54 rating, wide 100° beam angle, and IC-4 compliance, making it safe for use in insulated ceilings and damp areas.

Key Features

  • Triac Dimmable – Compatible with standard dimmer switches for adjustable brightness
  • Selectable Colour Temperature – Choose from 3000K, 3500K, 4000K, 5000K, or 5700K to suit any space
  • High Light Output – Produces up to 888 lumens of bright, consistent light
  • IP54 Rated – Resistant to dust and water splashes; suitable for bathrooms and semi-outdoor use
  • Anti-Glare Diffuser – Flush style; Provides even, soft lighting while reducing visual discomfort
  • Wide 100° Beam Angle – Ensures broad coverage for general-purpose lighting
  • Neutral White Finish – Sleek and unobtrusive to complement most interior styles
  • IC-4 Rated – Approved for installation under insulation in accordance with Australian standards

Specifications

  • Model: DL1560-WH5C10S01
  • Power Consumption: 13W
  • Input Voltage: 220–240V AC, 50/60Hz
  • Colour Temperatures: 3000K / 3500K / 4000K / 5000K / 5700K (selectable)
  • Lumen Output: 888 lm
  • CRI: >80 (Ra)
  • Beam Angle: 100°
  • IP Rating: IP54

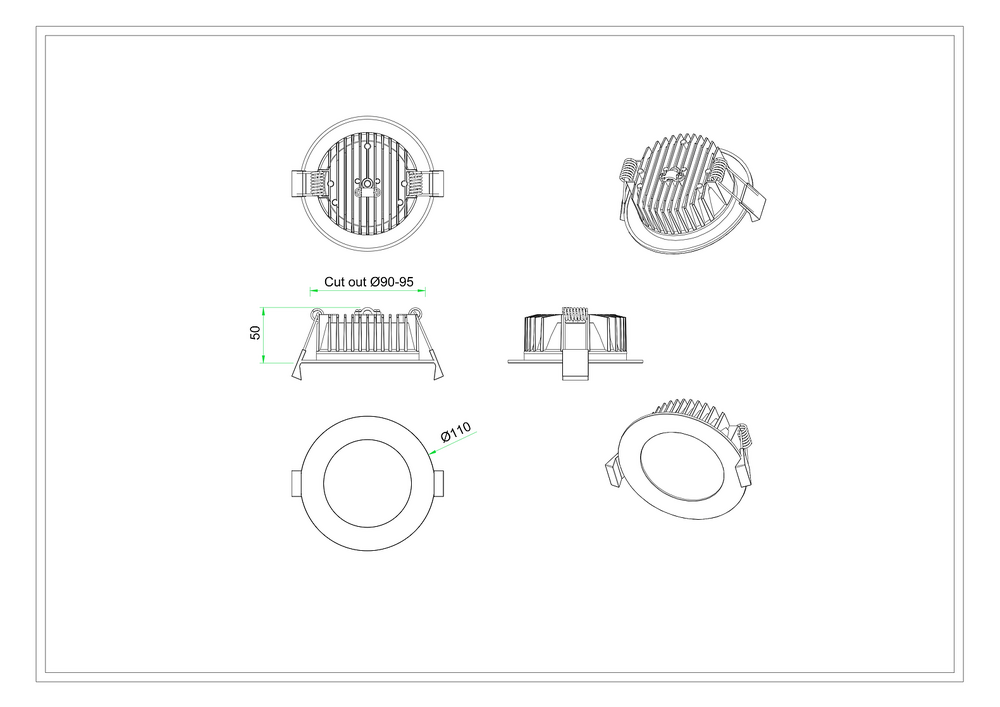

  • Cut-Out Size: Ø90–95 mm
  • Fitting Dimensions: Ø110 mm × 50 mm depth
  • Light Source: SMD LED
  • Housing Colour: White
  • Dimming: Triac compatible
  • Rating: IC-4 compliant

Applications

  • Living areas, bedrooms, hallways, and studies
  • Kitchens, laundries, and bathrooms
  • Covered outdoor areas (under eaves or verandas)
  • Retail and hospitality fit-outs requiring stylish and functional lighting
  • Energy-efficient upgrades or new home installations

With its high lumen output, selectable colour temperatures, and understated white finish, the 3A Lighting ATLAS 4 DL1560-WH5C10S01 offers the perfect combination of style, performance, and flexibility. It’s the go-to choice for electricians and homeowners seeking reliable, modern downlighting.

Q. Does this downlight allow for colour adjustment?
A. Yes, it has five selectable colour temperatures, giving you full flexibility for different rooms or mood settings.

Q. Can it be installed in insulated ceilings?
A. Yes, it is IC-4 rated, making it safe for direct contact with insulation.

Q. Is the downlight dimmable?
A. Absolutely. It features Triac dimming, suitable for use with most standard dimmer switches.

Q. Is the white finish gloss or matte?
A. It has a neutral white matte finish, designed to blend in with most ceiling types.

All products must be installed by a licensed electrican. DIY electrical work is illegal and very dangerous.

Change of Mind
All products purchased from MJS Electrical Products & Supplies are backed by a thirty (30) day Peace of Mind Return Policy. All products returned must be in perfect unused condition, with all components, complete with original packaging. We will not allow returns on damaged or incomplete products. Proof of purchase is required. Should the product not be in original condition, please contact us before returning it as this may save you some unnecessary costs.

Damaged / Faulty Goods
If you find that the goods were damaged in transit or were faulty in some manner, please contact us within 24 hours of receiving the goods. We will organise for the return of the goods and arrange a credit towards your next purchase or send a replacement product. Customer will incur the cost of return postage and be credited the purchase price only. We recommend that you return your unwanted items using registered post or trackable courier. We can not be held responsible if returned items are lost in transit.

Warranties
Product warranties are governed by the respective manufacturers and / or suppliers warranty terms and conditions (available on request). We will not be liable to you or any third party for any loss suffered due to product failure. We will process product warranty claims through the respective manufacturers and/or suppliers. All warranties are void if the product is not installed by a licensed electrician.

  • Complete Kit Includes: LED Light Fitting, LED Driver and 2 Pin Flex & Plug
  • 13W High Quality SMD LED Chip
  • High Quality 270maH Driver
  • Flat / Flush Style Fixed White Fitting
  • IC-F Abutted & Covered Rating (you can cover the downlight with insulation, the LED driver sits ontop of insulation)
  • Tri Colour - Choose between Warm White (3000K), Cool White (4000K) and Daylight (5700K) before you install the downlight!
  • 850lm (Warm White), 880lm (Cool White), 900lm (Daylight)
  • Dimmable LED Driver with Flex & Plug
  • Compatible with major leading and trailing edge dimmers.
  • 90-95mm Cut Out diamtere
  • 104mm total diameter
  • 120 Degree Beam Angle
  • Frosted Diffuser (cant see the LED chips inside)
  • Only 30mm height clearance required
  • SAA Approved
  • 3 Years Replacement Warranty
Colour White
Type LED Downlight
Wattage 13W
Voltage 200-240V AC
Installation Area Indoor
IP Rating IP54
Colour Temperature Tri Colour
Lighting Technology LED
Lumens 888lm
PRODUCT INFO
SKU DL13W-WF3
Model # DL1560-WH5C10S01
Barcode # 9360338000327
Brand 3A
SHIPPING INFO
Shipping Weight 0.4000kg
Shipping Width 0.115m
Shipping Height 0.090m
Shipping Length 0.115m
