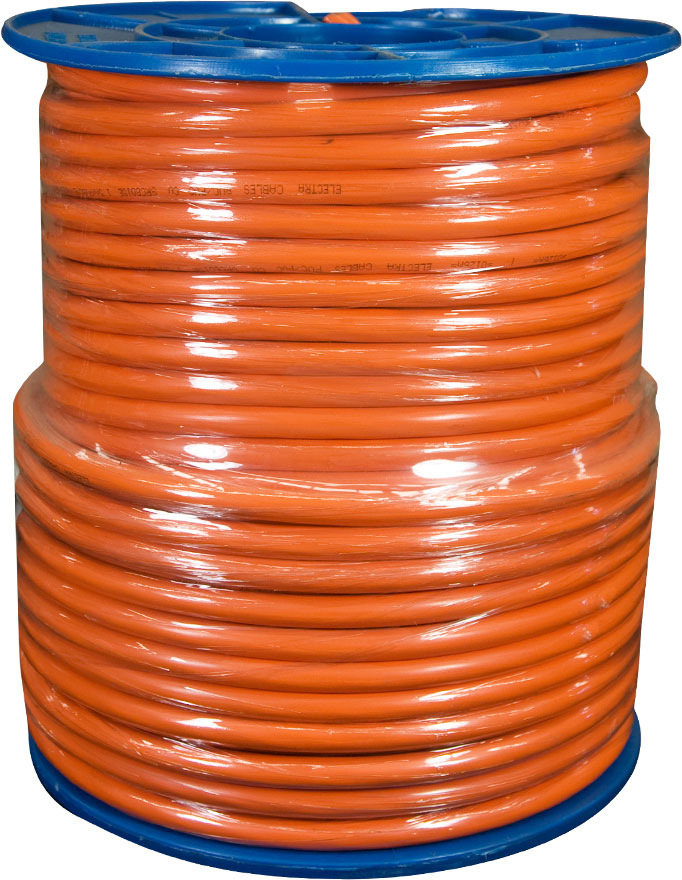

This 4.0mm² 2 Core + Earth Orange Circular cable comes on a 100 metre roll and suits single-phase circuits that need more capacity than 2.5mm² cable. It carries an active, a neutral and an earth in one tough round cable, making it a popular choice for submains to outbuildings, air conditioners and other heavier single-phase loads.

The cores are V-90 PVC insulated in red, black and green/yellow and enclosed in an orange 5V-90 PVC sheath of about 11.4mm diameter. Rated 450/750V with a 90°C maximum conductor temperature, the cable glands neatly at switchboards and equipment and can be installed unenclosed, in conduit or in underground ducts where it is not exposed to mechanical damage.

Key Features

• 4.0mm² Conductors – Extra capacity for heavier single-phase loads and longer runs.
• Active, Neutral and Earth – A complete single-phase circuit in one cable.
• V-90 PVC Insulation – Rated for a 90°C maximum conductor temperature.
• Orange 5V-90 Sheath – Tough, highly visible and easy to identify on site.
• Standard Colour Coding – Red active, black neutral and green/yellow earth.
• 450/750V Rating – Suits standard 230V single-phase installations.
• Round Profile – About 11.4mm in diameter for neat glanding and conduit pulls.
• 100m Roll – A full roll for several circuits or long outbuilding runs.

Specifications

• Conductor Size: 4.0mm²
• Cores: Active, neutral and earth
• Conductor: Copper
• Core Colours: Red (active), black (neutral), green/yellow (earth)
• Insulation: V-90 PVC
• Sheath: 5V-90 PVC
• Sheath Colour: Orange
• Overall Diameter: 11.4mm
• Max Conductor Temperature: 90°C
• Voltage Rating: 450/750V
• Standard: AS/NZS 5000.2
• Length: 100m roll

Applications

• Single-phase submains to sheds, garages and granny flats
• Air conditioner and heavier appliance supplies
• Circuits run in conduit or underground ducts

Built for heavier single-phase work, the OC402CE 4.0mm² 2 Core + Earth Orange Circular combines V-90 insulated cores, a durable orange sheath and a 450/750V rating. The 100m roll keeps you covered for multiple submains and equipment runs.
