This 6.0mm² Twin and Earth TPS cable is a heavy-duty flat cable on a 100 metre roll, built for higher-load circuits that need more conductor than standard power wiring. Each roll is metre marked, which makes it quick to measure runs and keep track of what has been used on site.

A 7/1.04mm stranded plain annealed copper active and neutral and a 2.5mm² earth are insulated in V-90 PVC and enclosed in an easy-tear 3V-90 PVC sheath. The cable is rated 450/750V for a 90°C maximum conductor temperature. The stranded build makes the larger cores easier to bend and terminate, and the easy-tear sheath speeds up stripping. It is a staple for contractors wiring cooktops, ovens, hot water systems and longer power runs in homes and light commercial work.

Key Features

• 6.0mm² Stranded Conductors – Seven-strand copper active and neutral conductors give capacity for heavier loads while staying workable at terminals.
• 2.5mm² Earth Conductor – A stranded earth runs inside the same sheath, so no separate earth run is needed.
• V-90 PVC Insulation – Rated for a 90°C maximum conductor temperature, the standard for Australian TPS wiring.
• Easy-Tear 3V-90 Sheath – Strips quickly and cleanly, saving time at every termination point.
• 450/750V Rating – Suits standard low-voltage building wiring.
• Clearly Coloured Cores – A red active, black neutral and green/yellow earth make identification simple.
• Metre Marked Sheath – Makes it simple to measure lengths and estimate the cable remaining on the roll.
• Compact Flat Profile – At about 15.2 x 7.1mm, it lies neatly when clipped to framing or run through ceiling and wall spaces.
• 100m Roll – A full roll for multi-circuit jobs or builders' stock.

Specifications

• Conductor Size: 6.0mm²
• Cores: Active, neutral and earth
• Conductor: Plain annealed copper, stranded 7/1.04mm
• Earth Size: 2.5mm² (7/0.67mm stranded)

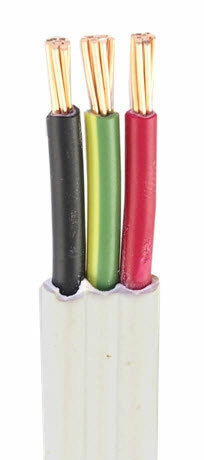

• Core Colours: Red (active), black (neutral), green/yellow (earth)
• Insulation: V-90 PVC
• Sheath: 3V-90 PVC
• Sheath Colour: White
• Overall Dimensions: 15.2 x 7.1mm (±10%)
• Max Conductor Temperature: 90°C
• Voltage Rating: 450/750V
• Standard: AS/NZS 5000.2
• Current Rating: 51A unenclosed touching / 25A surrounded by thermal insulation / 57A buried in ducts
• Marking: Metre marked
• Length: 100m roll

Applications

• Cooktop, oven and range circuits
• Hot water system and other high-load fixed appliance circuits
• Circuits to sheds, garages and granny flats where a larger conductor is needed
• Heavier commercial power circuits and long runs where voltage drop is a concern

When a job needs more capacity than standard power cable, this 6.0mm² Twin and Earth 100m roll delivers with 7-strand copper conductors, a built-in 2.5mm² earth and an easy-tear, metre-marked sheath. It is a reliable roll to keep on hand for appliance circuits and heavier residential or light commercial wiring.
