60mm UGOH Cover Guard Kit | Non-Metallic
Ausgrid Code 184570
SKU: UGOH60
Low Stock
$372.90
$339.00 ex GST
Low Stock
Buy Now, Pay Later with
Did You Also Need…?
24 Hour Dispatch
On All Orders
Australian Company
Owned & Operated
20+ Years
Industry Experience
Easy Returns
30 Days Peace Of Mind

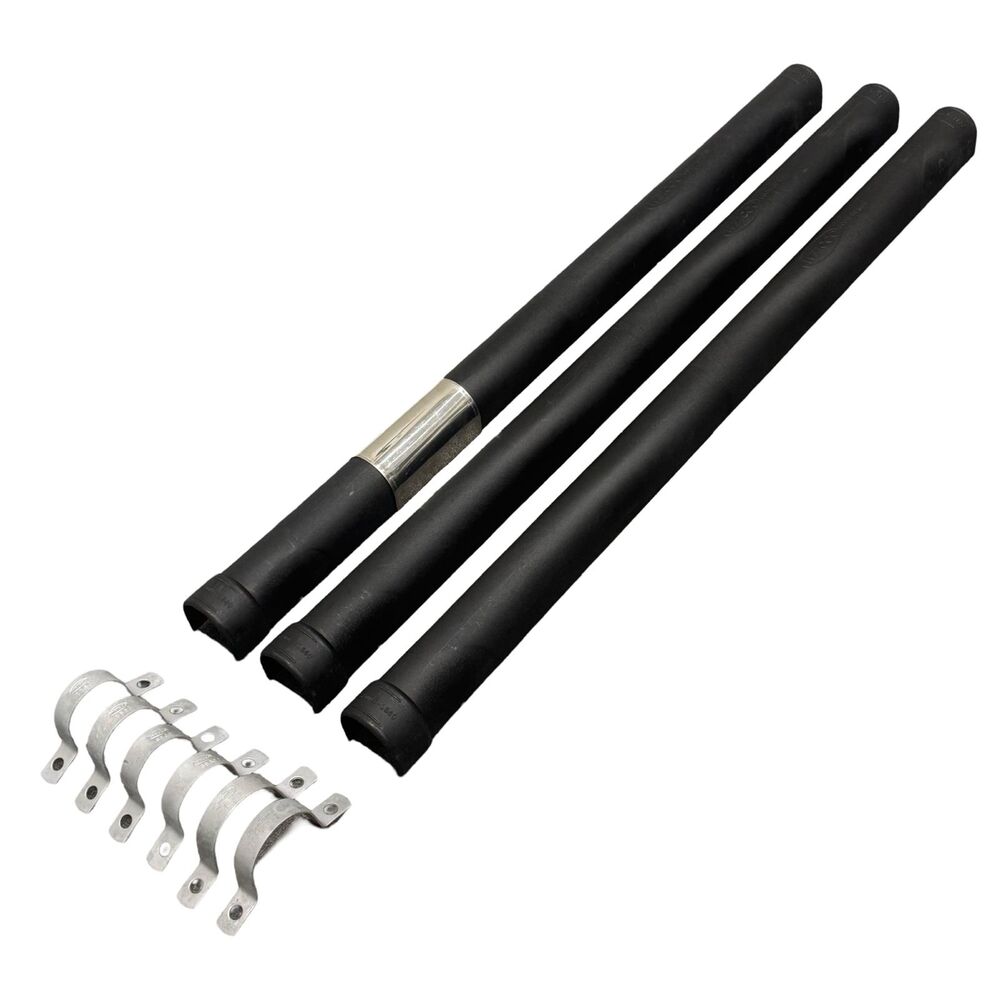

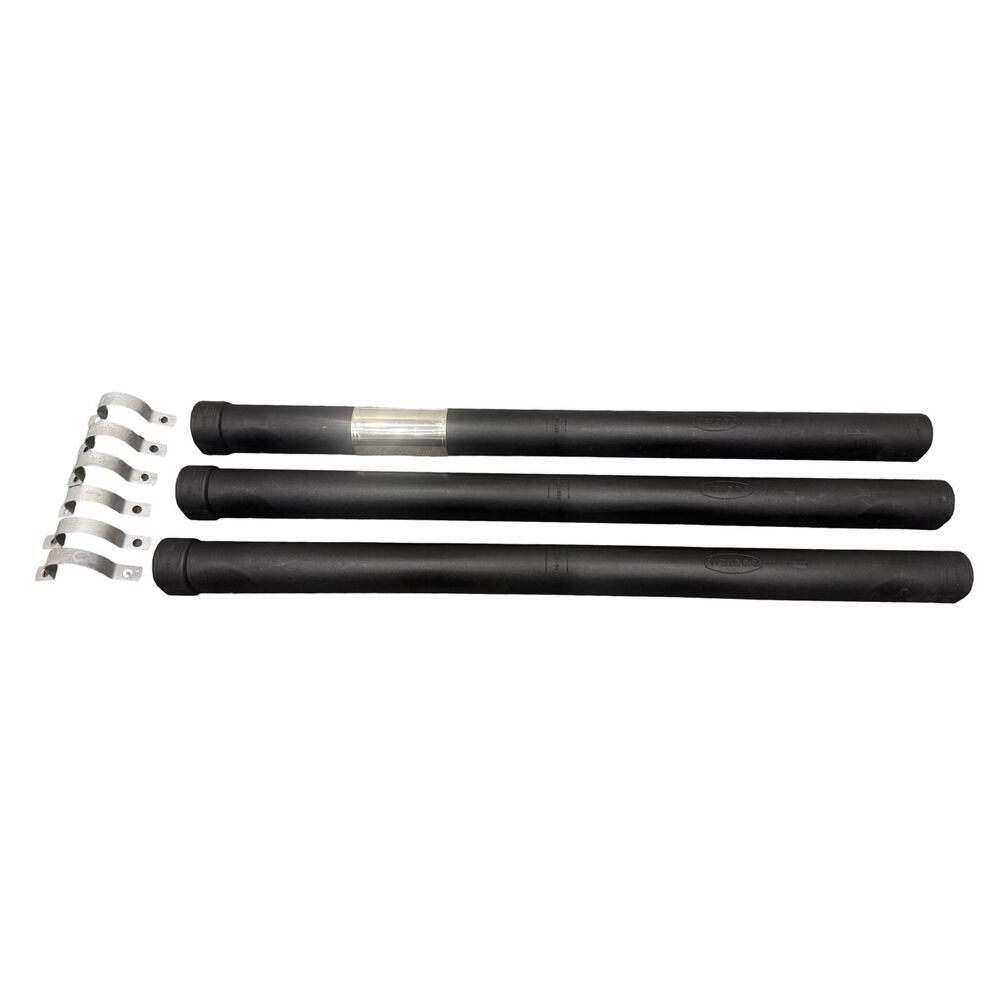

The non‑metallic UGOH Cover Guard Kit (60 mm) is designed to provide durable mechanical protection for underground and overhead service cables, particularly for low‑voltage customer UGOH (Underground to Overhead) cable installations. Built with robust composite materials and supplied as a kit, it simplifies installation while meeting utility installation standards for non‑metallic mechanical protection.
Key Features
- 60 mm Width Protection – Designed for service & streetlight cable runs up to approx. 35 mm diameter.
- Non‐Metallic Construction – Made from impact‑modified polyamide with glass‑fibre reinforcement, offering corrosion resistance and insulation.
- U‑Section Design – Covers form a “U” section profile (no side flanges) to satisfy utility specifications for pole installations.
- Pre‑Included Saddles & Shield – Kit includes 2 large and 4 small hot‑dip galvanised saddles plus a stainless steel (SS316) whipper‑snipper protection shield.
- UV‑Stabilised – Suitable for exposed outdoor or pole‑mounted use, resilient against UV and environmental conditions.
- Kit Format – Supplied as a pre‑assembled kit (typically three 1.5 m lengths per kit) for straightforward installer use.
Specifications
- Product Type: Non‑metallic UGOH cover guard kit (60 mm)
- Capacity: Suitable for cables up to approx. 35 mm outer diameter.
- Material: 4 mm thick impact‑modified polyamide reinforced with glass‑fibre.
- Included Components: 3 × U‑section cover lengths (approx. 1.5 m each) + 2 large hot‑dip galvanised saddles + 4 small hot‑dip galvanised saddles + SS316 whipper‑snipper shield.
- Installation Location: Typically from ~2500 mm above groundline to ~300 mm below for pole services.
- Finish: Black UV‑stabilised outer surface for durability in outdoor use.
- Compliance: Recognised under utility specs for LV UGOH cable protection. Ausgrid: 184570
Applications
- Protection of customer LV UGOH (Underground to Overhead) service cables on power poles.
- Covering and protecting service & street‑light cables in outdoor environments, including poles and frames.
- Installations where non‑conductive (non‑metallic) mechanical protection is required (e.g., on poles with HV earth down leads) as per utility specifications.
- Projects requiring modular cover guard kits to streamline installation and compliance.
For safe, utilities‑compliant protection of service cables in outdoor installations, the 60 mm UGOH Non‑Metallic Cover Guard Kit offers a ready‑to‑install solution. Durable, UV‑resistant and designed for pole‑mounted applications, it’s a reliable choice for electricians and infrastructure installers.
Q. What does “60 mm” refer to?
A. The “60mm” designation refers to the cover guard kit designed for cables up to approximately 35 mm in diameter, using a 60mm width U‑section profile.
Q. Is this kit suitable for outdoor pole mounting?
A. Yes. It’s specifically designed for outdoor pole use, with UV‑stable material and utility approval for mechanical protection on poles.
Q. Why use a non‑metallic cover instead of metal?
A. For certain pole situations (e.g., with HV earth down leads), non‑metallic covers are required to avoid conducting earth potentials; the utility’s standard lists a non‑metallic cover for those applications.
Q. What’s included in the kit?
A. The kit includes three cover sections, two large saddles, four small saddles and a whipper‑snipper shield—but screws/bolts are not included, so check installation requirements.
All products must be installed by a licensed electrican. DIY electrical work is illegal and very dangerous.
