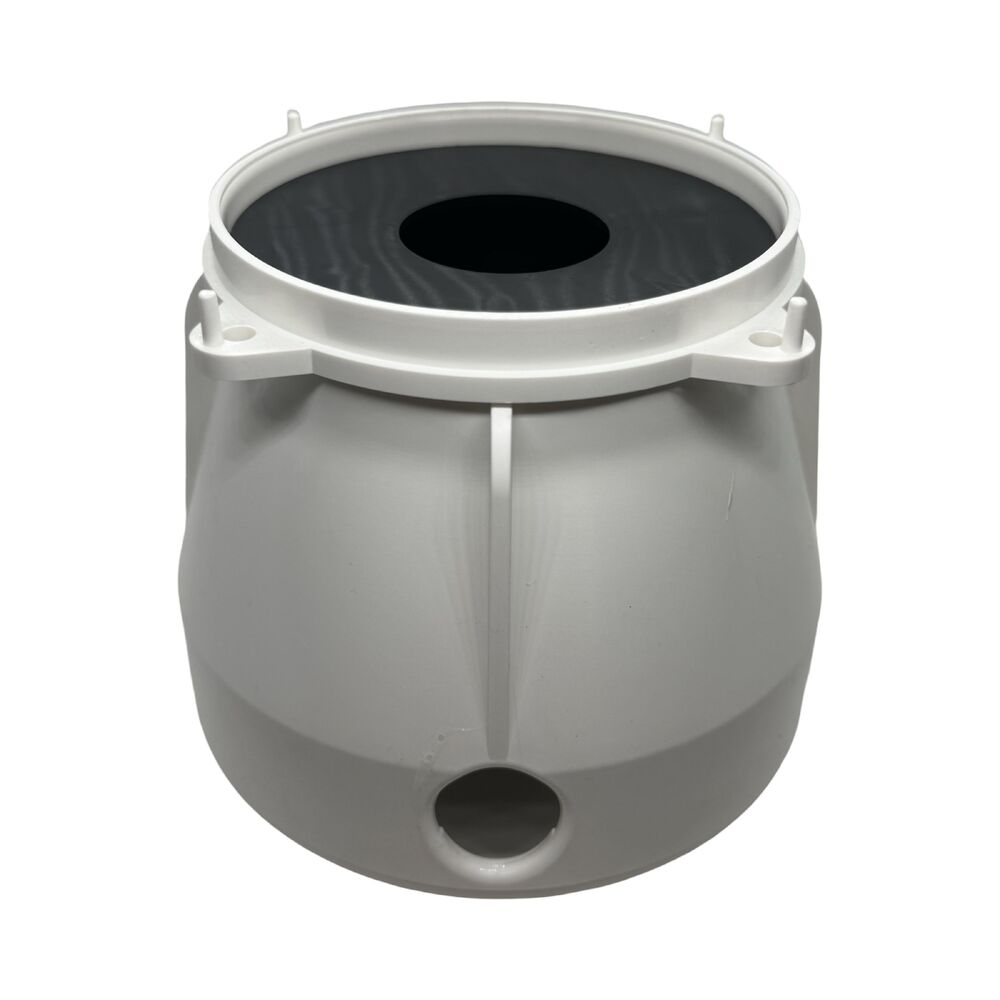

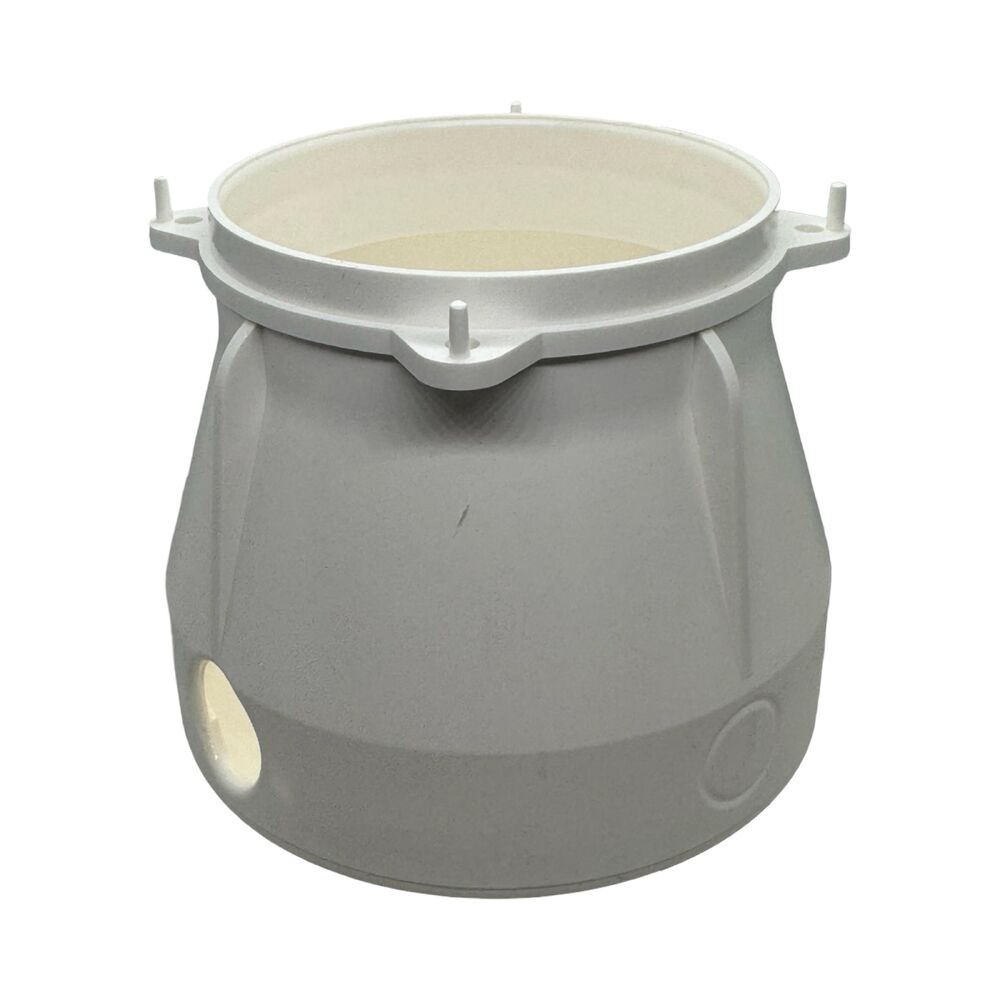

APE LED Slab Canister – Vertical Entry (Model: APESLABI/V)

The Ampere APE SLABI/V is a robust LED downlight slab canister engineered for quick installation, reliable slab integration, and versatile downlight compatibility. Designed specifically for precast and in-situ concrete pours, the canister features a patented ‘V’ entry design, allowing universal alignment-free insertion of compatible LED downlights. It is ideal for residential, commercial, and balcony slab lighting applications.

This flame-retardant ABS canister ensures the structural integrity of your slab while offering exceptional ease of use—particularly well-suited to swivel and gimbal downlights.

Key Features:

• Unique ‘V’ Design: Allows for faster installation with no need to align clips—just slide your downlight in at any position.
• Swivel & Gimbal Ready: Perfect for downlights requiring rotation—achieve optimal lighting angles easily.

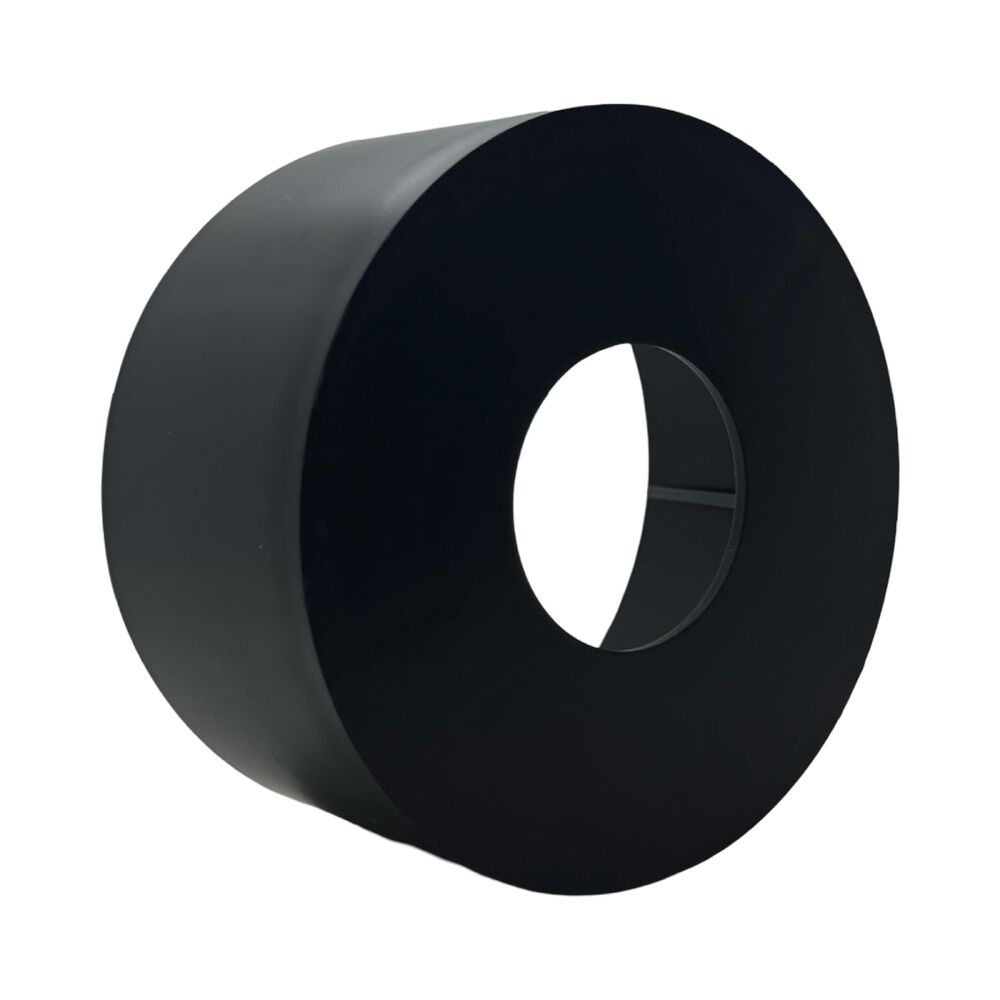

• Optional Reducer Available: Add the APE RED92-78 to support smaller fittings (72–78mm) while maintaining structural integrity during pour.
• Vertical Entry: Efficient conduit entry from the base, suited to a variety of slab installation styles.
• Downlight Compatibility: Accepts standard LED downlights with integrated drivers/transformers.

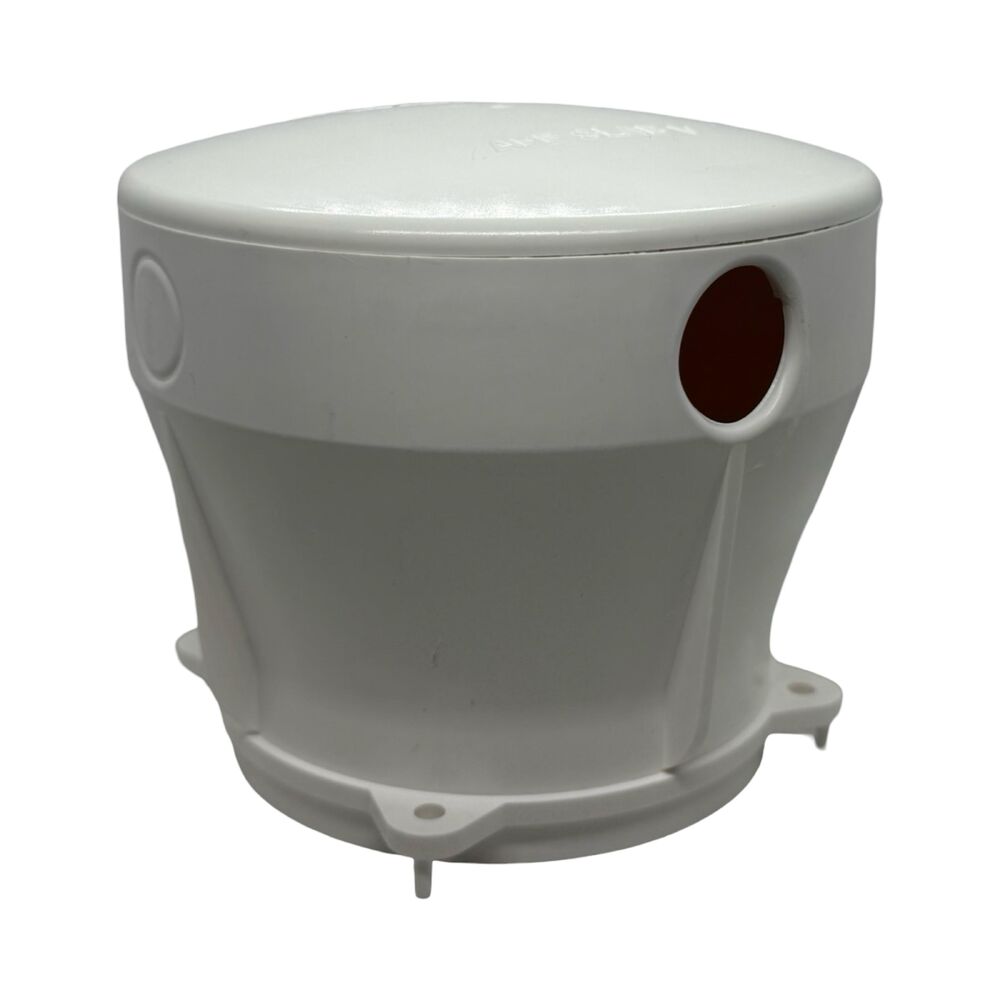

• Supplied with Strengthening Plug: Preserves shape and integrity during concrete pour—removable after set unless optional reducer is installed.
• Easy to Secure: Mounting tabs allow direct screwing to formwork and prevent movement during concrete pour.
• Leak-Proof & Slab-Safe: Precision construction ensures no concrete ingress during pouring.
• Ideal for Wet Areas & Balconies: Designed for exposed or moisture-prone slab environments.

Specifications:

• Model: APE SLABI/V
• Material: Flame-retardant ABS
• Colour: Cream
• Interior Diameter: 92mm (or 72–78mm with optional reducer)
• Height: 110mm (or 120mm with reducer)
• Mounting: Formwork screw tabs
• Reducer Option: APE RED92-78 (sold seperately)

Installation Overview:

• Before Pour:
  • Attach optional reducer (if required).
  • Secure canister to formwork using screw tabs.
  • Install and glue conduit into place.
  • Ensure plug remains inserted for structural support unless using reducer.
• After Pour:
  • Remove plug (if reducer not installed).
  • Slide LED downlight into place—no clip alignment needed.

The APE SLABI/V LED Slab Canister offers a simple, durable, and smart slab lighting solution—designed to make installations faster, cleaner, and more adaptable on site. Perfect for modern builds that demand performance and precision.
