Bosch Solution 6000 PCB + CP736B Keypad Kit
SKU: BOSCC610GWP
Low Stock
$438.90
$399.00 ex GST
Low Stock
Buy Now, Pay Later with
Did You Also Need…?
24 Hour Dispatch
On All Orders
Australian Company
Owned & Operated
20+ Years
Industry Experience
Easy Returns
30 Days Peace Of Mind

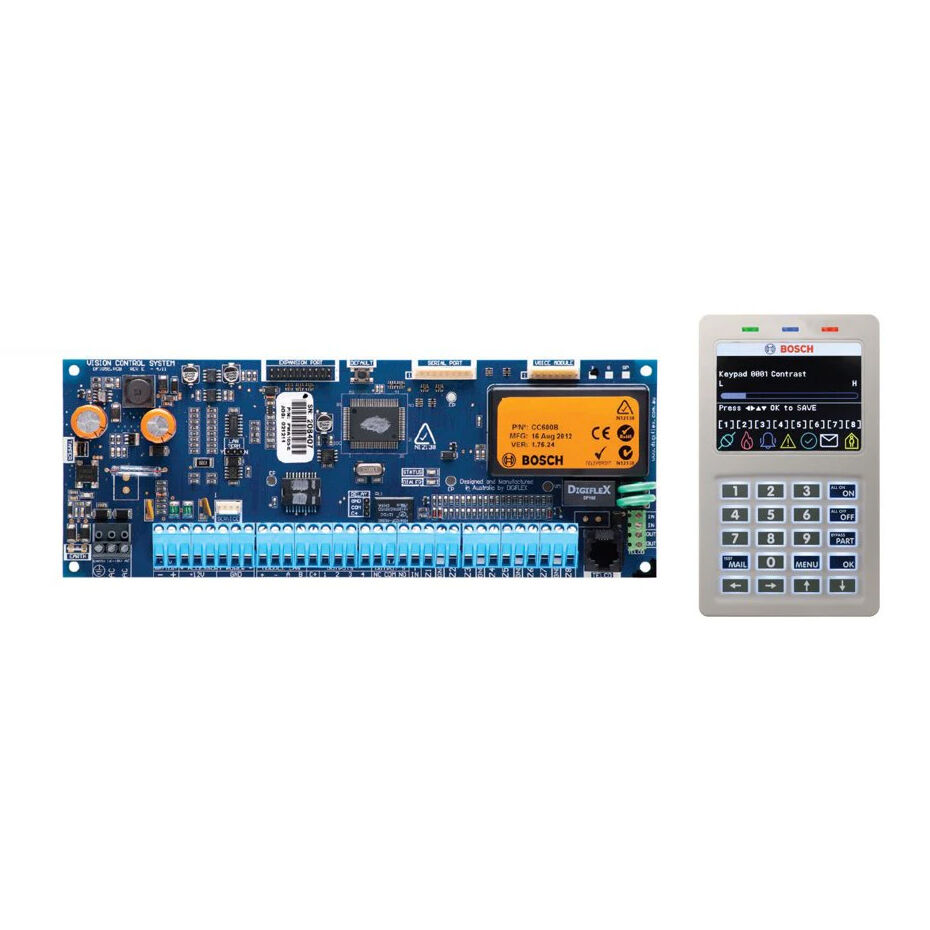

This compact yet powerful combo includes the ultra-capable Solution 6000 control panel (PCB CC610PB) and the sleek 3.5″ CP736B Smart‑Prox Colour Keypad, all in a clean white finish. Designed to meet modern security needs, the kit supports up to 144 zones, smart‑card access, mobile reporting, and big‑system capacity for small to medium installations.
Key Features
Control Panel (CC610PB)
- 16 Onboard Zones, expandable to 144 wired or wireless circuits via Bosch zone expander modules.
- Supports up to 8 independently controlled partitions (areas) for segmented arming control.
- Massive user capacity—up to 990 permissions including PIN codes, tokens, fobs, and fingerprint users.
- Integrated access control supporting up to 16 doors via smart‑card keypads and LAN readers.
- Comes standard with 5 programmable relay outputs (bell, AUX etc.), expandable to 37 via optional relay modules.
- Supports up to 16 RS485 devices, including keypads, LAN readers and serial interface modules.
- Choice of Communicators: Plug-in modules (Ethernet or cellular) enable CID, SIA, CSV-IP, Conettix, email and push notifications via the mobile app.
- Future‑proof wireless support: Compatible with Bosch RADION (up to 32 wireless points via RFRC-STR2 receiver).
- User-friendly programming methods: Full configuration possible via keypad or Bosch SolutionLink; onboard event logging up to 2000 events.

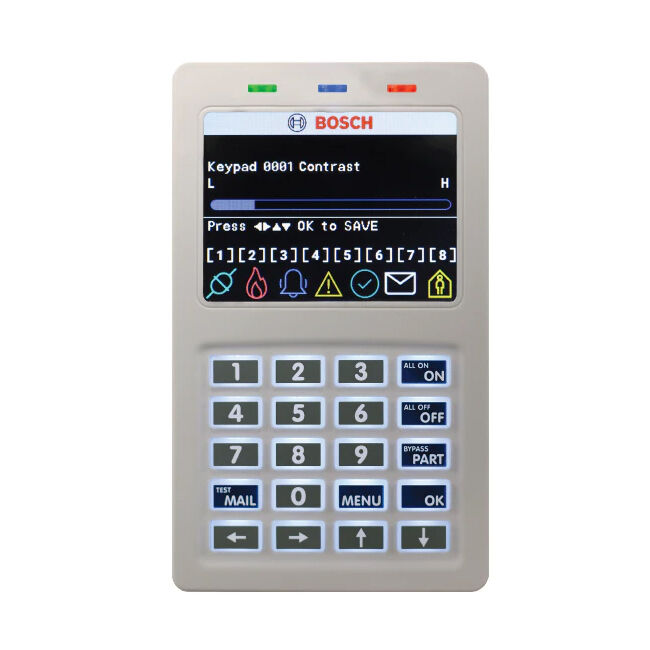

Keypad: CP736B 3.5″ Colour Smart‑Prox Display
- Vivid 3.5″ Graphic LCD with LED backlighting, real-time clock, temperature display, and fully programmable text prompts.
- Built-in 40-bit MiFare Smart‑Card reader for contactless arming/disarming or door access.
- Colour-coded rubber keypad with dedicated ON / OFF / PART keys, customisable banner screen, and key illumination.
- Programmable sounder for alarms and keypad feedback; supports adjustable volume, contrast, and backlight.
- Sleek low-profile design (149 × 88 × 21.5 mm), flush or surface mount.
Specifications
Control Panel (CC610PB):
- Zones: 16 onboard (expandable to 144)
- Areas (Partitions): Up to 8
- Users: Up to 990 (PINs, fobs, tokens)
- Relay Outputs: 5 onboard (expandable to 37)
- Communications: CID, SIA, CSV‑IP, Conettix, e‑mail & app notifications (optional B426-M / B450-M)
- Wireless: Supports 32 onboard or expanded wireless zones via RADION receivers
- Maximum Keypads / Readers: 16 (types include CP736B, CP737B, CP155B, etc.)
- Operating Range: 0 °C to +55 °C; 5–85% RH non-condensing
- Battery Support: 7 Ah sealed lead acid
- Power Supply: 18–24 VAC power adapter (e.g., TF008-B)
CP736B Keypad:
- Display: 3.5″ colour LCD with customizable banner
- Keypad: Illuminated rubber buttons, backlit ON / OFF / PART keys
- Smart‑Card: Built-in 40-bit MiFare reader
- Power: 9–16 V DC, ~110 mA current draw
- Mounting: Surface or recessed; includes mounting plate
- Dimensions: 149 × 88 × 21.5 mm (H × W × D)
Applications
- Smart homes, apartments, small offices — ideal for environments requiring flexible zoning and access control.
- Multi-tenant or multi-use spaces — partitions allow independent areas with distinct arming schedules.
- Access-enabled installations — smart-card arming or proximity access to facilities or rooms.
- Remote management & monitoring — mobile-friendly setups with CSV-IP or Ethernet communicators.
- Upgradable & future-proof — expands seamlessly with wireless, door control, or multi-panel configurations.
This all-in-one Bosch CC610GWP Kit brings together the most advanced Bosch Solution 6000 panel and the elegant CP736B colour keypad with smart-card reader. From high-zone, multi-area alarm control to access-card users and mobile monitoring, it modernizes small- to medium-sized installations with ease of use and scalability. A perfect match for installers and end-users who demand a polished, future-ready security and access platform.
Q: How many zones can I add to the system?
A: The base board supports 16 zones. With expanders, the system can grow to 144 zones, either wired or wireless.
Q: Can I set up separate areas with different control access?
A: Yes. You can create up to 8 partitions (areas) independently armed with distinct zones and user permissions.
Q: Is wireless security supported?
A: Yes. Use the RFRC‑STR2 receiver for Bosch RADION devices, supporting up to 32 wireless zones per system.
Q: Can this keypad control doors as well as the alarm?
A: Indeed! The CP736B keypad includes a MiFare Smart-card reader (40-bit) and supports up to 16 doors if the panel is provisioned for access control.
Q: How many people can be registered on the system?
A: A Bosch Solution 6000 can hold up to 990 user credentials, including PIN codes, tokens, wireless keyfobs, and fingerprint templates.
Q: Do I need special firmware for the keypad to work?
A: Yes. Firmware version 2.53.67 or later is required for the CP736B smart‑prox keypad to function—especially for serial numbers above 240,000.
