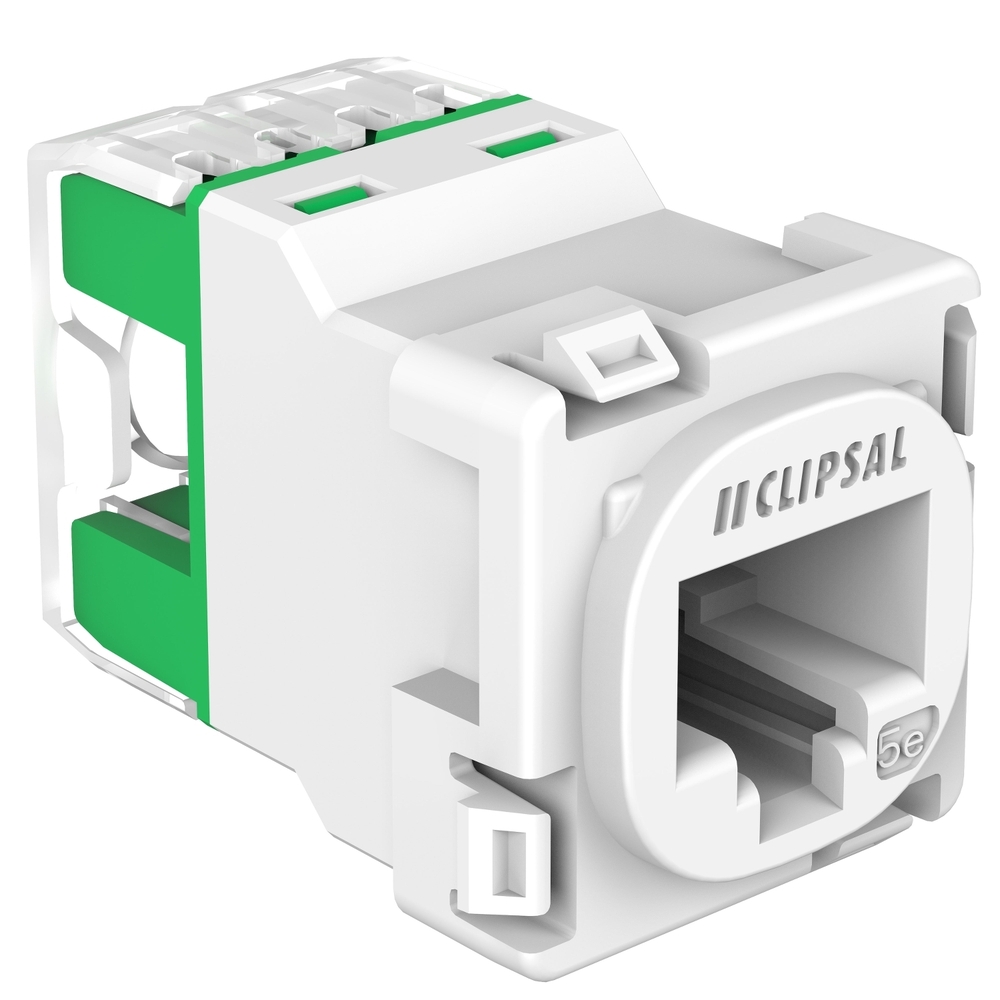

The Clipsal 30 Series Cat 5e Data Mechanism (30RJ45SMA5C-WE) is a Clipsal Actassi S-110 RJ45 jack for Cat 5e UTP data cabling, in White Electric. It suits network points in homes and offices, and supports 1000BASE-T (Gigabit Ethernet).

It has a 30 mech footprint to fit Clipsal plates that take 30 Series mechanisms. The cable is terminated with a punch down tool or quick termination tool, and the jack has 8 gold plated contacts, a transparent top cover and a green IDC cover.

Key Features

  • RJ45 Data Jack – Standard 8 contact network socket.
  • Category 5e – Cat 5e rated for UTP cable.
  • Gigabit Ready – Supports 1000BASE-T applications.
  • Gold Plated Contacts – 8 gold plated copper alloy pins.
  • Punch Down Termination – Use a punch down or quick termination tool.
  • Solid Conductors – Suits 24 to 23 AWG conductors.
  • 30 Mech Footprint – Fits plates that accept 30 Series mechanisms.
  • Durable – Rated for 750 mating cycles.
  • White Electric – Matches standard Clipsal white plates.

Specifications

  • Model: 30RJ45SMA5C-WE
  • Range: Clipsal Actassi S-110, 30 Series
  • Type: RJ45 data jack
  • Category: Cat 5e, UTP
  • Applications: 1000BASE-T
  • Frequency: 1–100MHz
  • Contacts: 8, gold plated
  • Termination: IDC, punch down or quick termination tool
  • Conductors: 24–23 AWG
  • Durability: 750 cycles
  • Footprint: 30 mech
  • Colour: White Electric

Applications

  • Network points in homes and offices
  • Adding data outlets to 30 Series wall plates
  • Replacing worn or damaged data sockets

Add a reliable Gigabit data point with the Clipsal 30RJ45SMA5C-WE Cat 5e RJ45 mechanism.

Q. What cable suits the Clipsal 30RJ45SMA5C-WE?
A. It is a Cat 5e jack for UTP cable with 24 to 23 AWG conductors.

Q. How is the Clipsal 30RJ45SMA5C-WE terminated?
A. The cable is terminated with a punch down tool or a quick termination tool.

Q. What plates suit the Clipsal 30RJ45SMA5C-WE?
A. It has a 30 mech footprint to fit Clipsal plates that accept 30 Series mechanisms.

Q. Is a wall plate included with the Clipsal 30RJ45SMA5C-WE?
A. No. This is the mechanism only. The wall plate is sold separately.
