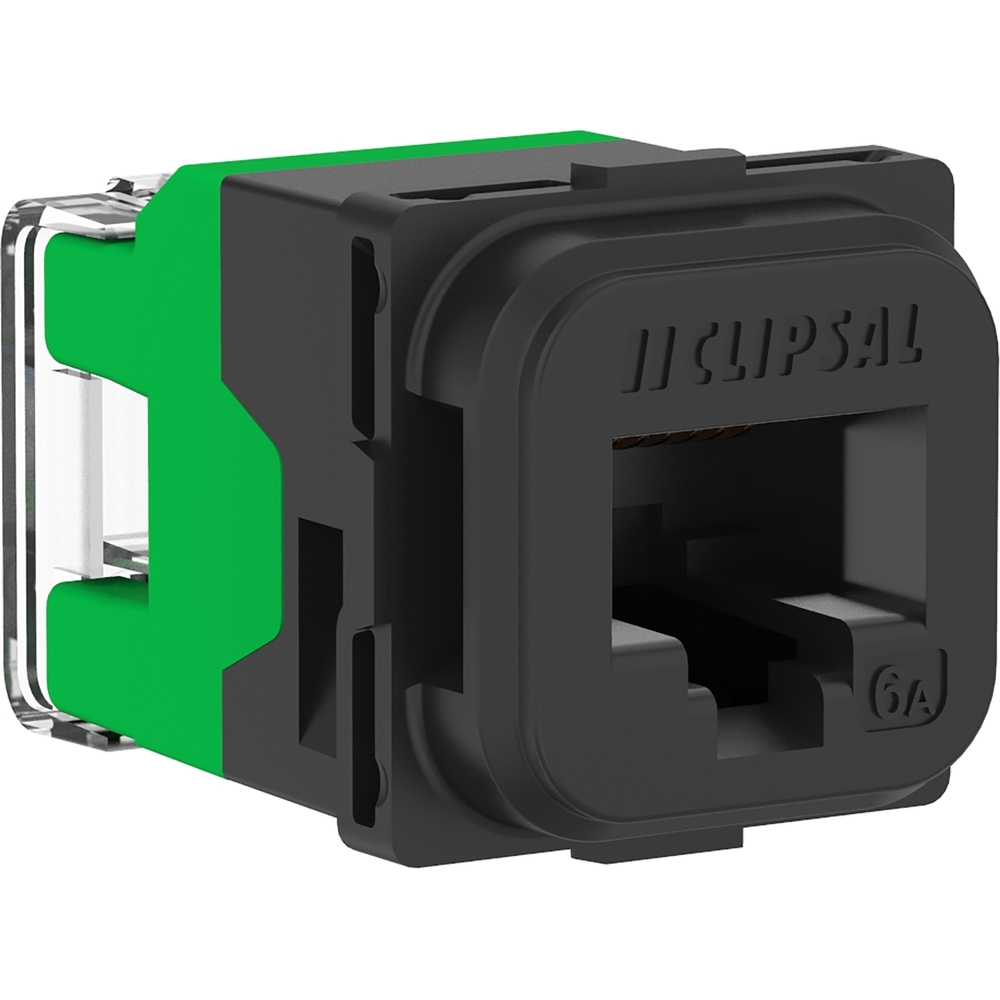

The Clipsal 40 Series Cat6A RJ45 Data Connector (40RJ45SMA6AC-BK) is a high performance, unshielded data outlet for home and business networks. Built on the Clipsal Actassi S-110 platform in a 40 Series mechanism footprint, it supports 10GBASE-T network speeds for fast, reliable wired connections.

The mechanism suits Clipsal 40 Series plates, including the Clipsal Iconic and Pro ranges. It has a black housing with a transparent top cover, a two piece design with IDC terminals, and supports PoE, PoE+ and 4PPoE up to 100W for access points, cameras and other network devices.

Key Features

  • Cat6A Performance – Supports 10GBASE-T networks up to 500MHz.
  • 40 Series Footprint – Suits Clipsal 40 Series plates, including Iconic and Pro.
  • Black Housing – Black body with transparent top cover.
  • Unshielded (UTP) – Suits unshielded Cat6A cabling.
  • PoE Ready – Supports PoE, PoE+ and 4PPoE up to 100W.
  • IDC Terminals – Punch down or quick termination tool.
  • Two Piece Design – Makes termination easier and neater.
  • Gold Plated Contacts – Eight gold plated pins for reliable connections.
  • 750 Mating Cycles – Built for repeated plugging and unplugging.
  • Actassi S-110 – Part of the Clipsal Actassi structured cabling system.

Specifications

  • Model: 40RJ45SMA6AC-BK
  • Range: Clipsal Actassi S-110, 40 Series mechanism
  • Category: Cat6A, unshielded (UTP)
  • Connector: RJ45, 8 gold plated contacts
  • Network: 10GBASE-T, 1–500MHz
  • PoE: PoE (15W), PoE+ (30W), 4PPoE (100W)
  • Termination: IDC, punch down or quick termination tool
  • Conductor Size: 23–24 AWG
  • Conductor Diameter: 0.9–1.4mm
  • Mating Cycles: 750
  • Flame Rating: UL94-V0
  • Colour: Black housing, transparent top cover
  • Dimensions: 22mm H x 36mm L x 16mm W

Applications

  • Home networks, home offices and media rooms
  • PoE devices such as wireless access points and IP cameras
  • Office and commercial structured cabling
  • Colour coded outlets for separate networks

For fast, future ready wired networking, the Clipsal 40RJ45SMA6AC-BK delivers 10GBASE-T performance, PoE support and 40 Series compatibility in one compact black mechanism.

Q. Which plates does the Clipsal 40RJ45SMA6AC-BK suit?
A. It has a Clipsal 40 Series mechanism footprint, so it suits 40 Series plates, including the Clipsal Iconic and Pro ranges.

Q. What cable does the Clipsal 40RJ45SMA6AC-BK suit?
A. It suits unshielded Cat6A cable with 23–24 AWG conductors and a conductor diameter of 0.9 to 1.4mm.

Q. Does the Clipsal 40RJ45SMA6AC-BK support Power over Ethernet?
A. Yes. It supports PoE (15W), PoE+ (30W) and 4PPoE (100W).

Q. How is the Clipsal 40RJ45SMA6AC-BK terminated?
A. It uses IDC terminals and can be terminated with a punch down tool or a quick termination tool.
