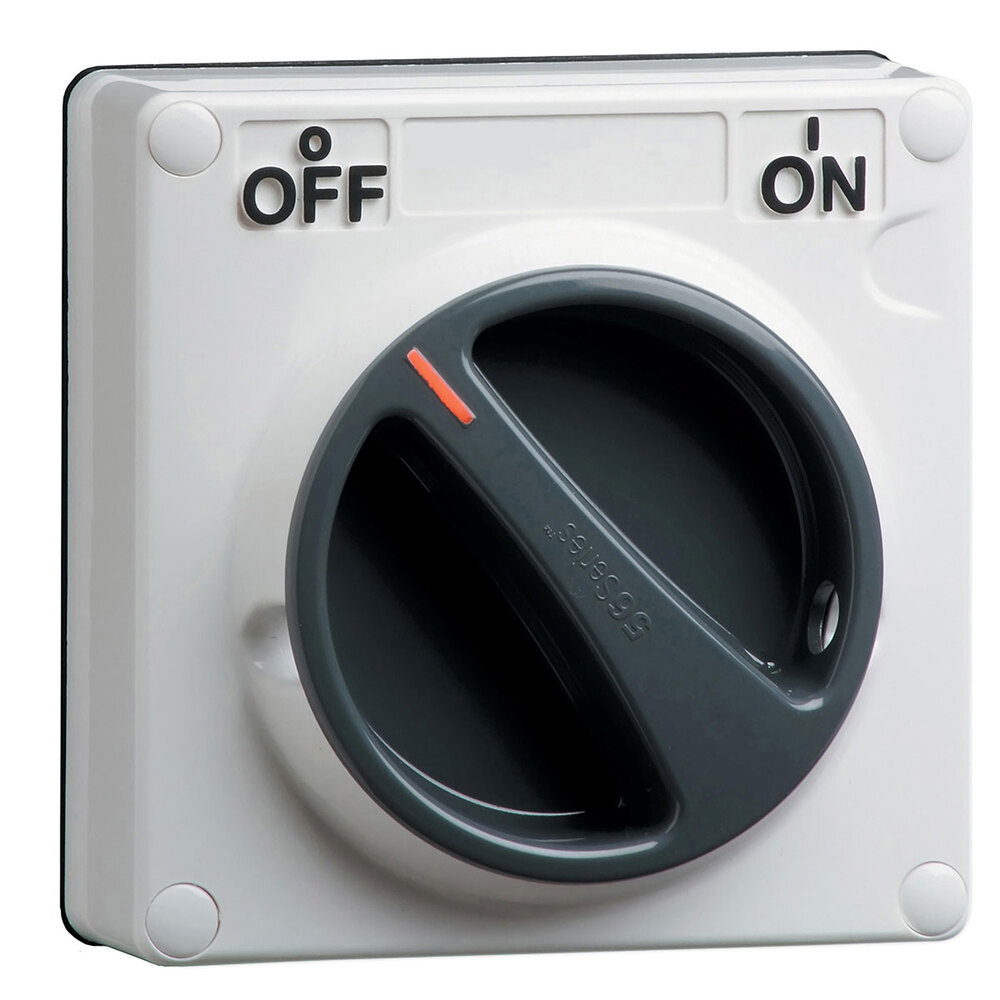

The Clipsal 56 Series 1 Pole 20A Isolating Switch Less Enclosure in Grey (56SW120LE-GY) is a 1 gang surface switch rated 20A at 250V AC, with 1 switched pole. Clipsal lists it as suitable for isolation.

Part of Clipsal's 56 Series weatherproof family. The switch is rated IP66, has an M150 motor rating at 250V and a rotary knob with ON-OFF marking. Screw terminals take 2.5 to 16mm² cable. It is the Less Enclosure (LE) base version, so the surface enclosure is not included, and it measures 107 x 101 x 72mm. The finish is grey.

Key Features

  • 1 Pole, 20A – Rated 20A at 250V AC, 50Hz.
  • Rotary Knob – Positive switching with ON-OFF marking.
  • Suitable for Isolation – Clipsal lists it as suitable for isolation.
  • M150 Motor Rating – Motor rating M150 at 250V.
  • IP66 Rated – Protected against dust and powerful water jets.
  • Screw Terminals – Accept 2.5 to 16mm² cable.
  • Less Enclosure – Base version, enclosure not included.
  • High Fault Ratings – Icm 1kA, Icw 1.2kA for 1s, Uimp 4kV.
  • 56 Series Range – Part of Clipsal's 56 Series weatherproof family.

Specifications

  • Model: 56SW120LE-GY
  • Range: Clipsal 56 Series
  • Type: Surface switch, 1 gang, polycarbonate, less enclosure
  • Switched Poles: 1
  • Rated Current: 20A
  • Rated Voltage: 250V AC, 50Hz
  • Motor Rating: M150 at 250V
  • Suitable for Isolation: Yes
  • Operation: Rotary knob, ON-OFF
  • Terminals: 2.5 to 16mm²
  • IP Rating: IP66
  • Dimensions: 107mm H x 101mm W x 72mm D
  • Colour: Grey

Applications

  • Outdoor lighting and equipment switching
  • Pumps, fans and motors
  • Industrial and commercial plant

For tough, weatherproof switching, choose the Clipsal 56SW120LE-GY 1 pole 20A 56 Series switch.

Q. What is the rating of the Clipsal 56SW120LE-GY?
A. It is rated 20A at 250V AC with 1 switched pole and an M150 motor rating.

Q. Can the Clipsal 56SW120LE-GY be used as an isolator?
A. Yes. Clipsal lists it as suitable for isolation.

Q. Is the Clipsal 56SW120LE-GY weatherproof?
A. Yes. The switch is rated IP66 against dust and powerful water jets when correctly installed.

Q. What cable does the Clipsal 56SW120LE-GY take?
A. The screw terminals take 2.5 to 16mm² cable.

Q. Does the Clipsal 56SW120LE-GY include an enclosure?
A. No. It is the less enclosure (LE) base version, measuring 107 x 101 x 72mm.

All products must be installed by a licensed electrican. DIY electrical work is illegal and very dangerous.

Change of Mind
All products purchased from MJS Electrical Products & Supplies are backed by a thirty (30) day Peace of Mind Return Policy. All products returned must be in perfect unused condition, with all components, complete with original packaging. We will not allow returns on damaged or incomplete products. Proof of purchase is required. Should the product not be in original condition, please contact us before returning it as this may save you some unnecessary costs.

Damaged / Faulty Goods
If you find that the goods were damaged in transit or were faulty in some manner, please contact us within 24 hours of receiving the goods. We will organise for the return of the goods and arrange a credit towards your next purchase or send a replacement product. Customer will incur the cost of return postage and be credited the purchase price only. We recommend that you return your unwanted items using registered post or trackable courier. We can not be held responsible if returned items are lost in transit.

Warranties
Product warranties are governed by the respective manufacturers and / or suppliers warranty terms and conditions (available on request). We will not be liable to you or any third party for any loss suffered due to product failure. We will process product warranty claims through the respective manufacturers and/or suppliers. All warranties are void if the product is not installed by a licensed electrician.

Amp 20A
Colour Grey
Type Switch
IP Rating IP66
Material Polycarbonate
Frequency 50Hz
Standard AS/NZS 3133
Poles 1P
Range Clipsal 56 Series
PRODUCT INFO
SKU CL56SW120LE-GY
Model # 56SW120LE-GY
Barcode # 9311554203818
Brand Clipsal
SHIPPING INFO
Shipping Weight 0.2400kg
Shipping Width 0.078m
Shipping Height 0.098m
Shipping Length 0.106m
