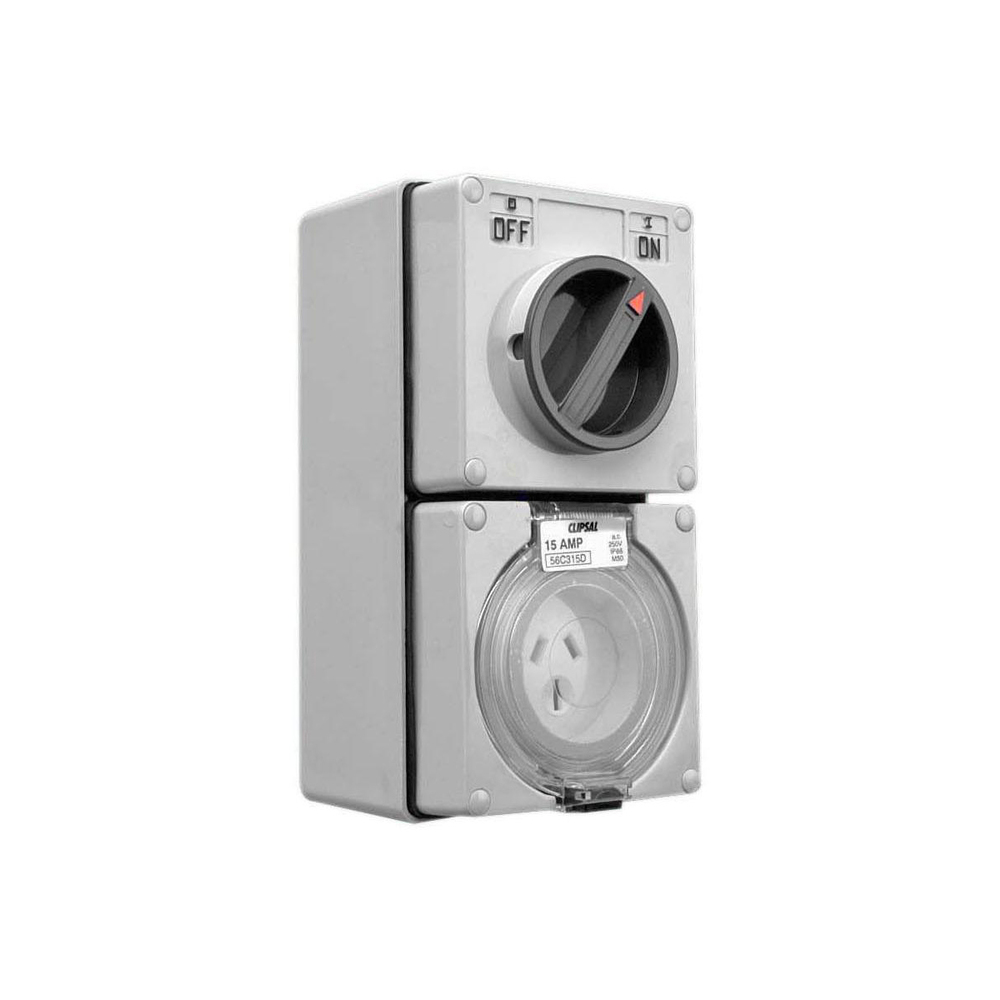

The Clipsal 56 Series Switched Socket, Flat 3 Pin 15A, 2 Pole (56C315D-GY) is an IP66 weatherproof switched socket outlet that combines a switch and socket in one unit for surface mounting. It is a single phase outlet with 3 flat pins (1P+N+E), rated 15A at 250V AC, and accepts the matching Clipsal 56P315 plug. Clipsal's title lists it as a 2 pole switched socket.

Part of Clipsal's 56 Series weatherproof family. It has phosphor bronze pins, a polycarbonate cover, a protective cover over the outlet and screw terminals for 1.5 to 6mm² cable, with an M120 motor rating. The internal connections between switch and socket are factory wired. It measures 204 x 101 x 108mm and is finished in grey (RAL 7035).

Key Features

  • 15A, 250V – Rated 15A at 250V AC, 50Hz.
  • 3 Flat Pins – 1P+N+E configuration.
  • Switch and Socket – Switch and outlet combined in one unit.
  • IP66 Weatherproof – Protected against dust and powerful water jets.
  • Protective Cover – Cover over the socket outlet.
  • Phosphor Bronze Pins – Reliable electrical contact.
  • Factory Wired – Switch to socket connections pre-wired.
  • M120 Motor Rating – Motor rating M120.
  • Screw Terminals – Accept 1.5 to 6mm² cable.
  • Matching Plug – Accepts the 56 Series 56P315 plug.
  • 56 Series Range – Part of Clipsal's 56 Series weatherproof family.

Specifications

  • Model: 56C315D-GY
  • Range: Clipsal 56 Series
  • Type: Switched socket outlet, surface
  • Rated Current: 15A
  • Rated Voltage: 250V AC, 50Hz
  • Pins: 3 flat pins
  • Poles: 1P+N+E
  • Motor Rating: M120
  • Terminals: 1.5 to 6mm²
  • Protection: IP66
  • Matching Plug: 56P315
  • Colour: Grey (RAL 7035)
  • Dimensions: 204mm H x 101mm W x 108mm D

Applications

  • 15A tools and equipment
  • Workshops, sheds and plant rooms
  • Industrial and commercial sites

For a tough 15A outlet that stands up to water and dust, choose the Clipsal 56C315D-GY IP66 switched socket.

Q. What plug does the Clipsal 56C315D-GY accept?
A.
It accepts the matching 56 Series 56P315 plug (3 flat pins).

Q. What is the Clipsal 56C315D-GY rated?
A.
It is rated 15A at 250V AC, 1P+N+E, with an M120 motor rating.

Q. Is the Clipsal 56C315D-GY weatherproof?
A.
Yes. It is rated IP66 against dust and powerful water jets when correctly installed.

Q. What cable size does the Clipsal 56C315D-GY take?
A.
The screw terminals take 1.5 to 6mm² cable.

Q. What size is the Clipsal 56C315D-GY?
A.
It measures 204mm high x 101mm wide x 108mm deep.
