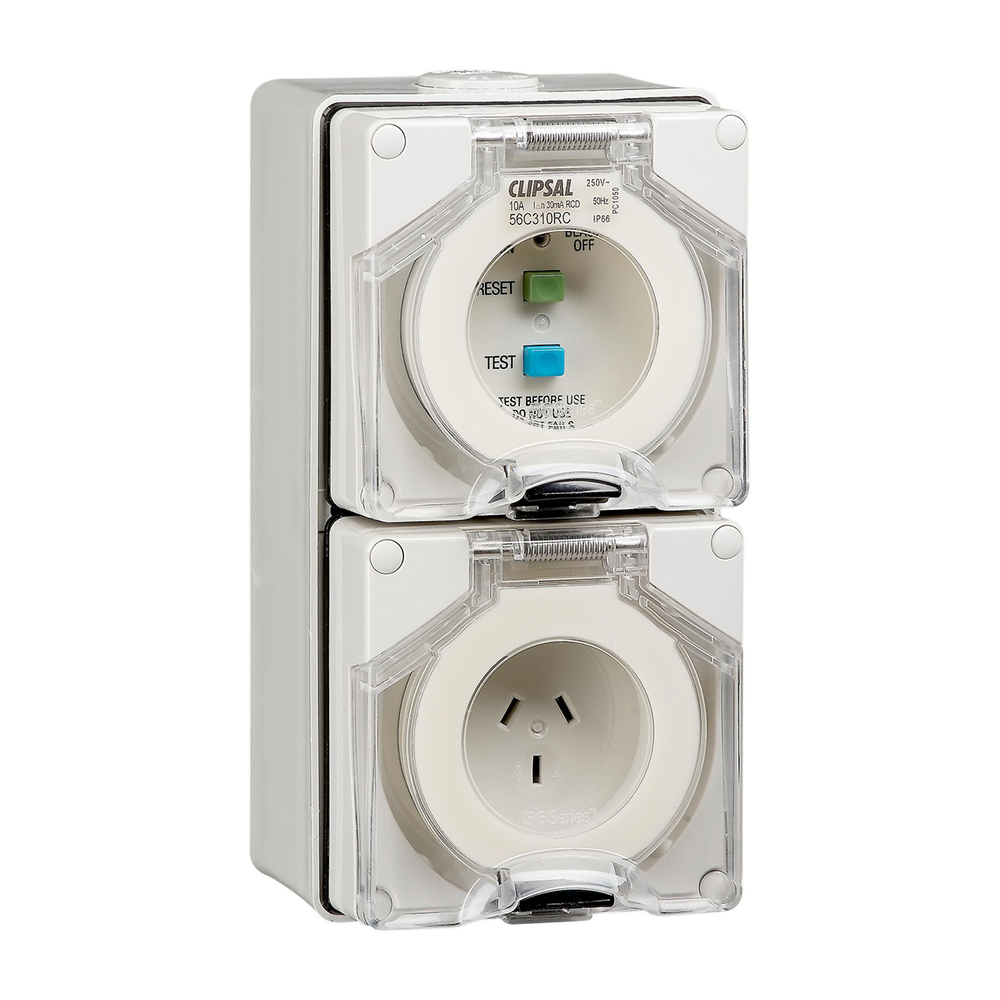

The Clipsal 56 Series 3 Pin 10A RCD Protected Switched Socket (56C310RC-GY) combines a 3 flat pin 10A socket outlet, a switch and a 30mA RCD in one weatherproof 2 gang assembly, rated 250V AC. It gives personal protection and quick disconnection of power at outdoor and industrial outlets.

If current leaks to earth, the RCD cuts the supply in less than 40 milliseconds. A neon shows the RCD is protecting the outlet; if it is not lit, the RCD has tripped. The polycarbonate assembly is rated IP66, is double insulated, and accepts the Clipsal 56P310 plug.

Key Features

  • 30mA RCD Protection – Type A RCD for personal protection.
  • Fast Tripping – Cuts supply in less than 40 milliseconds at 30mA.
  • Neon Indicator – Shows the RCD is protecting the outlet.
  • 10A Socket Outlet – 3 flat pin, 10A, 250V AC.
  • Switched Outlet – Switch for quick disconnection of power.
  • Push-Button Test – Push-button control for RCD testing.
  • Compact 2 Gang – 204 x 101 x 102mm assembly.
  • IP66 Weatherproof – Protected against dust and powerful water jets.
  • Class II – Double insulated polycarbonate housing.
  • 56 Series Range – Part of Clipsal's 56 Series weatherproof family.

Specifications

  • Model: 56C310RC-GY
  • Range: Clipsal 56 Series
  • Type: RCD protected switched socket outlet
  • Rated Current: 10A
  • Rated Voltage: 250V AC, 50Hz
  • Pins: 3, flat
  • Phases: 1
  • RCD: 30mA, Type A
  • Terminals: 1–6mm²
  • Gangs: 2
  • IP Rating: IP66
  • Insulation: Class II
  • Installation: Surface, vertical
  • Dimensions: 204mm H x 101mm W x 102mm D
  • Matching Plug: 56P310
  • Colour: Grey (RAL 7035)

Applications

  • Outdoor power outlets needing RCD protection
  • Workshops, factories and washdown areas
  • Construction sites and portable tool use

Add switched, RCD protected 10A power anywhere tough with the Clipsal 56C310RC-GY.

Q. Does the Clipsal 56C310RC-GY have built-in RCD protection?
A. Yes. It has a 30mA Type A RCD that cuts the supply in less than 40 milliseconds if current leaks to earth.

Q. How do I know the Clipsal 56C310RC-GY RCD is working?
A. A neon indicator shows the RCD is protecting the outlet. If the neon is not lit, the RCD has tripped and no power is available from the socket. The push-button lets you test the RCD.

Q. Which plug suits the Clipsal 56C310RC-GY?
A. It accepts 3 flat pin 10A plugs such as the Clipsal 56P310.

Q. Is the Clipsal 56C310RC-GY weatherproof?
A. Yes. The polycarbonate assembly is rated IP66. It is surface mounted and installed vertically.

Q. What size is the Clipsal 56C310RC-GY?
A. It is a compact 2 gang unit measuring 204 x 101 x 102mm, and the terminals take 1 to 6mm² cables.
