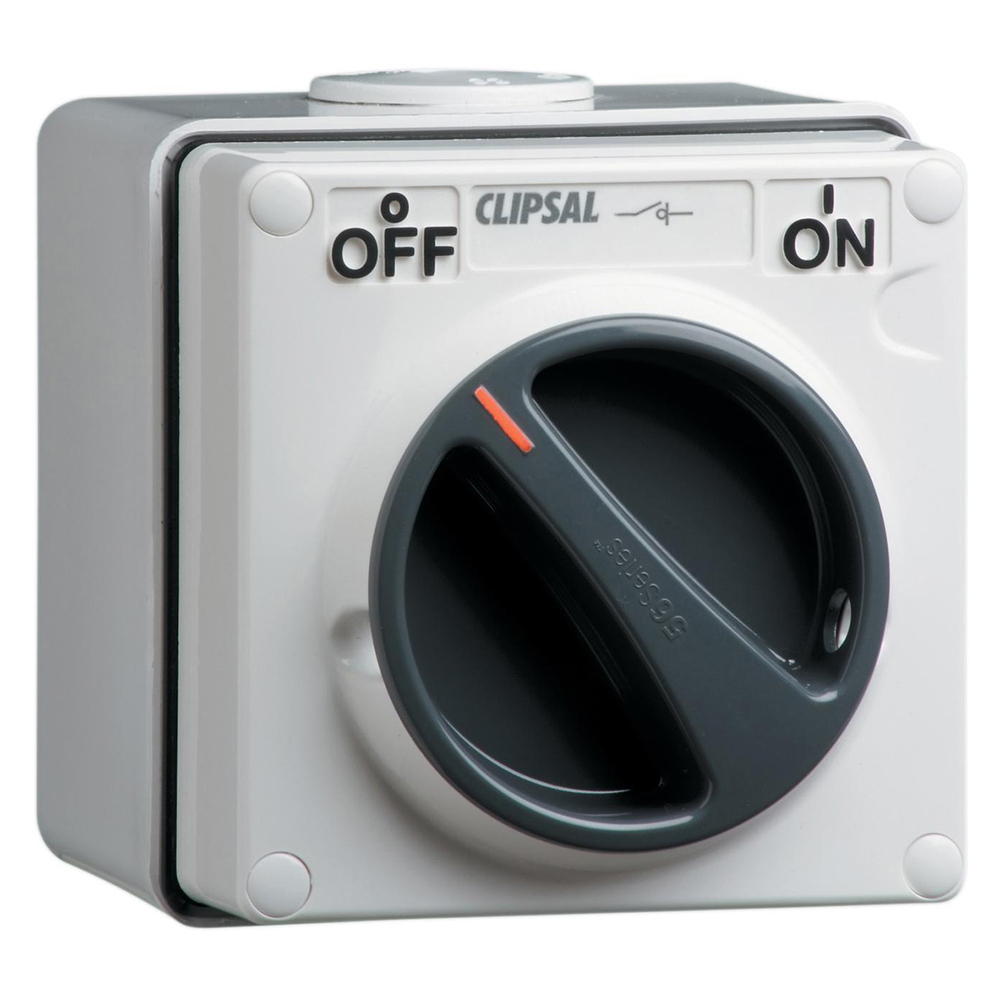

The Clipsal 56 Series 3 Pole 20A Isolating Switch in Grey (56SW320CX-GY) is a 1 gang surface switch rated 20A at 500V AC, with 3 switched poles. Clipsal lists it as suitable for isolation.

Part of Clipsal's 56 Series weatherproof family. The switch is rated IP66, has an M150 motor rating at 500V and a rotary knob with ON-OFF marking. Screw terminals take 2.5 to 16mm² cable. It measures 107 x 101 x 108mm complete with its enclosure and fixes by screws. The finish is grey.

Key Features

  • 3 Pole, 20A – Rated 20A at 500V AC, 50Hz.
  • Rotary Knob – Positive switching with ON-OFF marking.
  • Suitable for Isolation – Clipsal lists it as suitable for isolation.
  • M150 Motor Rating – Motor rating M150 at 500V.
  • IP66 Rated – Protected against dust and powerful water jets.
  • Screw Terminals – Accept 2.5 to 16mm² cable.
  • Surface Mounted – Complete with enclosure, fixes by screws.
  • 2A Control Circuit – Includes a 2A control circuit switch.
  • High Fault Ratings – Icm 2.1kA, Icw 1.5kA for 1s, Uimp 4kV.
  • 56 Series Range – Part of Clipsal's 56 Series weatherproof family.

Specifications

  • Model: 56SW320CX-GY
  • Range: Clipsal 56 Series
  • Type: Surface switch, 1 gang, polycarbonate
  • Switched Poles: 3
  • Rated Current: 20A
  • Rated Voltage: 500V AC, 50Hz
  • Motor Rating: M150 at 500V
  • Suitable for Isolation: Yes
  • Operation: Rotary knob, ON-OFF
  • Terminals: 2.5 to 16mm²
  • IP Rating: IP66
  • Dimensions: 107mm H x 101mm W x 108mm D
  • Colour: Grey

Applications

  • Outdoor lighting and equipment switching
  • Pumps, fans and motors
  • Industrial and commercial plant

For tough, weatherproof switching, choose the Clipsal 56SW320CX-GY 3 pole 20A 56 Series switch.

Q. What is the rating of the Clipsal 56SW320CX-GY?
A. It is rated 20A at 500V AC with 3 switched poles and an M150 motor rating.

Q. Can the Clipsal 56SW320CX-GY be used as an isolator?
A. Yes. Clipsal lists it as suitable for isolation.

Q. Is the Clipsal 56SW320CX-GY weatherproof?
A. Yes. The switch is rated IP66 against dust and powerful water jets when correctly installed.

Q. What cable does the Clipsal 56SW320CX-GY take?
A. The screw terminals take 2.5 to 16mm² cable.

Q. What size is the Clipsal 56SW320CX-GY?
A. It measures 107mm high x 101mm wide x 108mm deep.

All products must be installed by a licensed electrican. DIY electrical work is illegal and very dangerous.

Change of Mind
All products purchased from MJS Electrical Products & Supplies are backed by a thirty (30) day Peace of Mind Return Policy. All products returned must be in perfect unused condition, with all components, complete with original packaging. We will not allow returns on damaged or incomplete products. Proof of purchase is required. Should the product not be in original condition, please contact us before returning it as this may save you some unnecessary costs.

Damaged / Faulty Goods
If you find that the goods were damaged in transit or were faulty in some manner, please contact us within 24 hours of receiving the goods. We will organise for the return of the goods and arrange a credit towards your next purchase or send a replacement product. Customer will incur the cost of return postage and be credited the purchase price only. We recommend that you return your unwanted items using registered post or trackable courier. We can not be held responsible if returned items are lost in transit.

Warranties
Product warranties are governed by the respective manufacturers and / or suppliers warranty terms and conditions (available on request). We will not be liable to you or any third party for any loss suffered due to product failure. We will process product warranty claims through the respective manufacturers and/or suppliers. All warranties are void if the product is not installed by a licensed electrician.

Amp 20A
Colour Grey
Type Switch
Voltage 500V AC
IP Rating IP66
Material Polycarbonate
Frequency 50Hz
Standard AS/NZS 3133
Poles 3P
Range Clipsal 56 Series
PRODUCT INFO
SKU CL56SW320CX-GY
Model # 56SW320CX-GY
Barcode # 9311554723057
