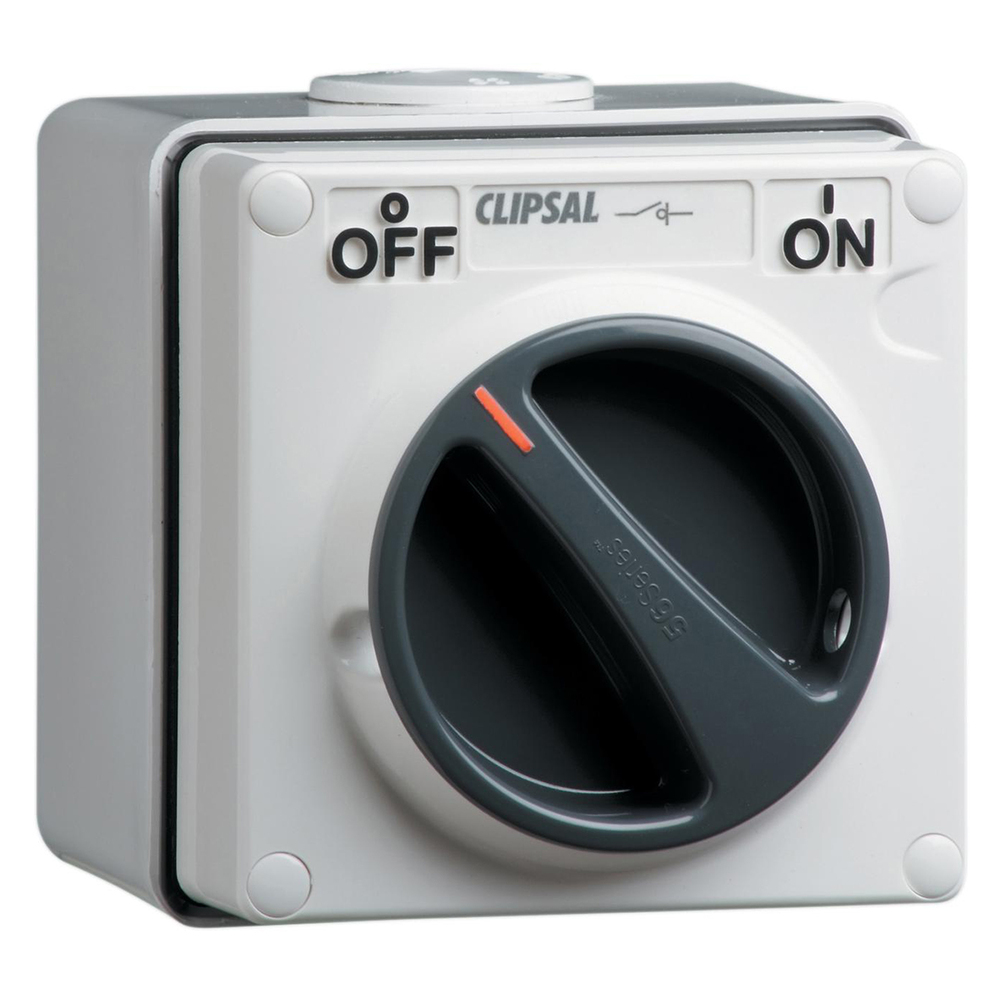

The Clipsal 56 Series 3 Pole 32A Isolating Switch (56SW332-GY) is a weatherproof rotary surface switch for three phase equipment. Rated 32A at 500V AC, it is suitable for isolation and has a motor rating of M180 at 500V, so it suits motors, pumps, air conditioners and other three phase loads.

The tough polycarbonate unit is rated IP66 against dust and powerful water jets. A positive rotary action with clearly marked ON and OFF positions makes operation simple, the handle has provision for two padlocks with 8mm holes, and earth and neutral connectors for 3 x 6mm² cables are supplied.

Key Features

  • 3 Pole Switching – Switches all three phases together.
  • 32A, 500V Rating – Rated 32A at 500V AC, 50Hz.
  • Suitable for Isolation – Clipsal rated for isolation duty.
  • M180 Motor Rating – Suits three phase motor loads.
  • IP66 Weatherproof – Protected against dust and powerful water jets.
  • Rotary Action – Positive switching with marked ON and OFF positions.
  • Padlock Provision – Takes two padlocks with 8mm holes.
  • Screw Terminals – Accept 4 to 16mm² conductors.
  • Earth and Neutral Connectors – Supplied, each taking 3 x 6mm² cables.
  • Surface Mounted – Fixes directly to walls, posts and equipment.
  • 56 Series Range – Part of Clipsal's 56 Series weatherproof family.

Specifications

  • Model: 56SW332-GY
  • Range: Clipsal 56 Series
  • Poles: 3
  • Rated Current: 32A
  • Rated Voltage: 500V AC, 50Hz
  • Isolation: Suitable for isolation
  • Motor Rating: M180 at 500V
  • Short-Time Withstand: 1.2kA for 1s
  • Making Capacity: 1kA
  • Impulse Withstand: 4kV
  • Operation: Rotary, ON-OFF, padlockable (2 padlocks, 8mm)
  • Terminals: 4–16mm²
  • IP Rating: IP66
  • Mounting: Surface
  • Dimensions: 107mm H x 101mm W x 108mm D
  • Colour: Grey

Applications

  • Isolating three phase motors, pumps and compressors
  • Air conditioning and refrigeration plant
  • Outdoor and industrial machinery

Isolate three phase equipment safely and visibly with the Clipsal 56SW332-GY 32A 3 pole switch.

Q. Is the Clipsal 56SW332-GY suitable for isolation?
A.
Yes. Clipsal rates the 56SW332-GY as suitable for isolation, switching all three poles at 32A, 500V AC.

Q. Can the Clipsal 56SW332-GY be locked off?
A.
Yes. The rotary handle has provision for two padlocks with 8mm holes.

Q. What motor rating does the Clipsal 56SW332-GY have?
A.
It has a motor rating of M180 at 500V, suiting three phase motor loads.

Q. Is the Clipsal 56SW332-GY weatherproof?
A.
Yes. It is rated IP66 against dust and powerful water jets.

Q. What conductor size does the Clipsal 56SW332-GY take?
A.
The terminals accept 4 to 16mm² conductors, and earth and neutral connectors for 3 x 6mm² cables are supplied.
