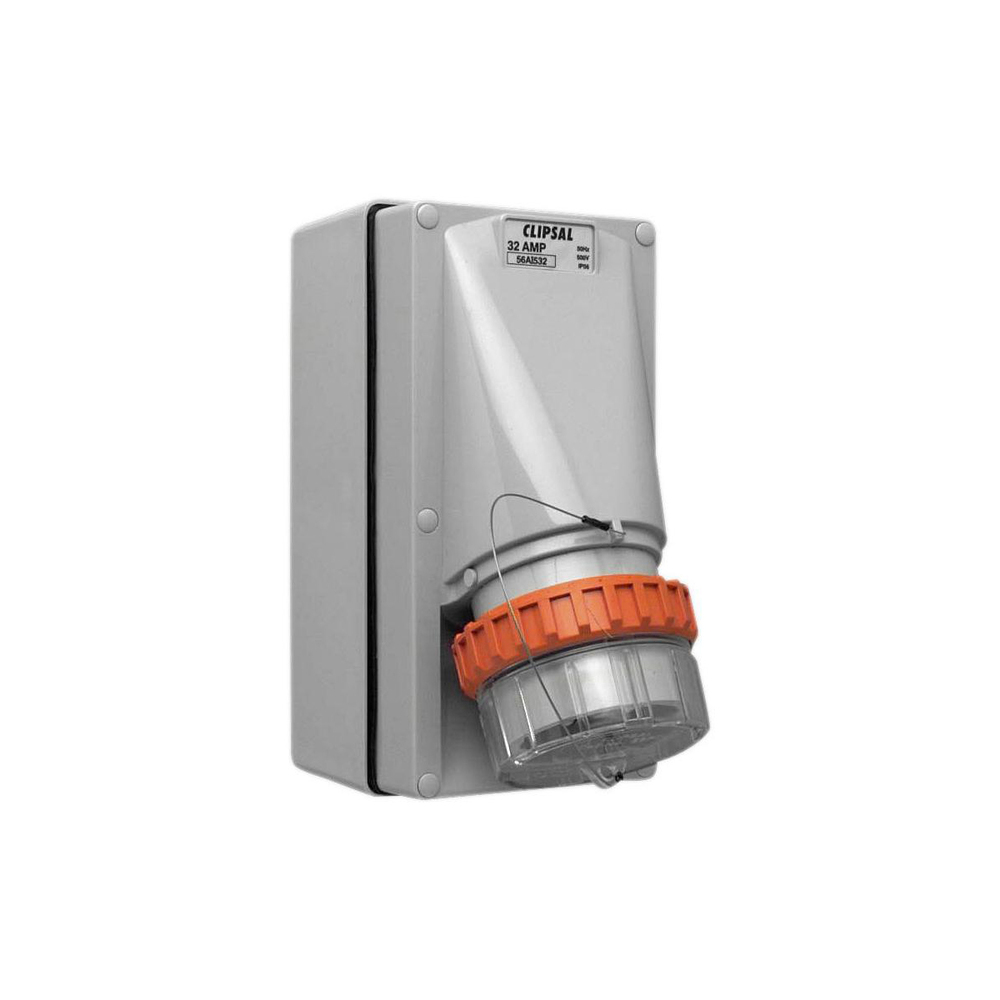

The Clipsal 56 Series Appliance Inlet, 32A 500V, 5 Round Pins (56AI532-GY) is an IP66 weatherproof surface mounted inlet for feeding 3 phase power into equipment through an extension lead. It is a 3P+N+E inlet rated 32A at 500V.

Part of Clipsal's 56 Series weatherproof family. It mates with the matching 56CSC532 extension socket, so no special reverse pin plug is needed. The downward facing, angled pin housing lets the extension socket connect neatly without a bulky right angle entry. The standard screwed lock ring holds the extension socket in place and helps keep the IP rating.

Key Features

  • IP66 Rated – Weatherproof for wet and dusty areas.
  • 32A, 500V – Rated 32A at 500V, 50/60Hz.
  • 5 Round Pins – 3P+N+E configuration.
  • Matching 56CSC532 – Mates with the 56CSC532 extension socket.
  • No Reverse Pin Plug – Uses a standard extension socket.
  • Angled Pin Housing – Downward facing for a neat connection.
  • Screwed Lock Ring – Holds the connection and IP integrity.
  • Brass Terminal Screws – Take 6 to 16mm² cable.
  • Grey Finish – RAL 7035 industrial grey.
  • 56 Series Range – Matches Clipsal 56 Series accessories.

Specifications

  • Model: 56AI532-GY
  • Range: Clipsal 56 Series
  • Type: Appliance inlet
  • Rated Current: 32A
  • Rated Voltage: 500V, 50/60Hz
  • Pins: 5 round pins
  • Poles: 3P+N+E
  • Terminals: Brass screws, 6 to 16mm²
  • Protection: IP66
  • Mounting: Surface
  • Colour: Grey (RAL 7035)
  • Dimensions: 204mm H x 101mm W x 165mm D

Applications

  • 3 phase power for machinery and workshops
  • Washdown and wet areas
  • Industrial and agricultural sites

Feed 3 phase power in safely with the Clipsal 56AI532-GY IP66 32A appliance inlet.

Q. What connects to the Clipsal 56AI532-GY?
A.
It mates with the 56 Series 56CSC532 extension socket, with no special reverse pin plug needed.

Q. What is the Clipsal 56AI532-GY rated?
A.
It is rated 32A at 500V, 3P+N+E, with IP66 protection.

Q. What cable does the Clipsal 56AI532-GY take?
A.
The brass screw terminals take 6 to 16mm² rigid or stranded cable.

Q. What size is the Clipsal 56AI532-GY?
A.
It measures 204mm high x 101mm wide x 165mm deep.

All products must be installed by a licensed electrican. DIY electrical work is illegal and very dangerous.

Change of Mind
All products purchased from MJS Electrical Products & Supplies are backed by a thirty (30) day Peace of Mind Return Policy. All products returned must be in perfect unused condition, with all components, complete with original packaging. We will not allow returns on damaged or incomplete products. Proof of purchase is required. Should the product not be in original condition, please contact us before returning it as this may save you some unnecessary costs.

Damaged / Faulty Goods
If you find that the goods were damaged in transit or were faulty in some manner, please contact us within 24 hours of receiving the goods. We will organise for the return of the goods and arrange a credit towards your next purchase or send a replacement product. Customer will incur the cost of return postage and be credited the purchase price only. We recommend that you return your unwanted items using registered post or trackable courier. We can not be held responsible if returned items are lost in transit.

Warranties
Product warranties are governed by the respective manufacturers and / or suppliers warranty terms and conditions (available on request). We will not be liable to you or any third party for any loss suffered due to product failure. We will process product warranty claims through the respective manufacturers and/or suppliers. All warranties are void if the product is not installed by a licensed electrician.

Amp 32A
Colour Grey
Type Appliance Inlet
Voltage 500V AC
IP Rating IP66
Material Plastic, Polycarbonate (Cover)
Frequency 50Hz/60Hz
Standard AS/NZS 60320.1
Poles 3P + N + E
Range Clipsal 56 Series
Pin Number 5 Pins
Shape Of Pin Round
PRODUCT INFO
SKU CL56AI532-GY
Model # 56AI532-GY
Barcode # 9311554202842
Brand Clipsal
SHIPPING INFO
Shipping Weight 0.9780kg
Shipping Width 0.104m
Shipping Height 0.162m
Shipping Length 0.204m
