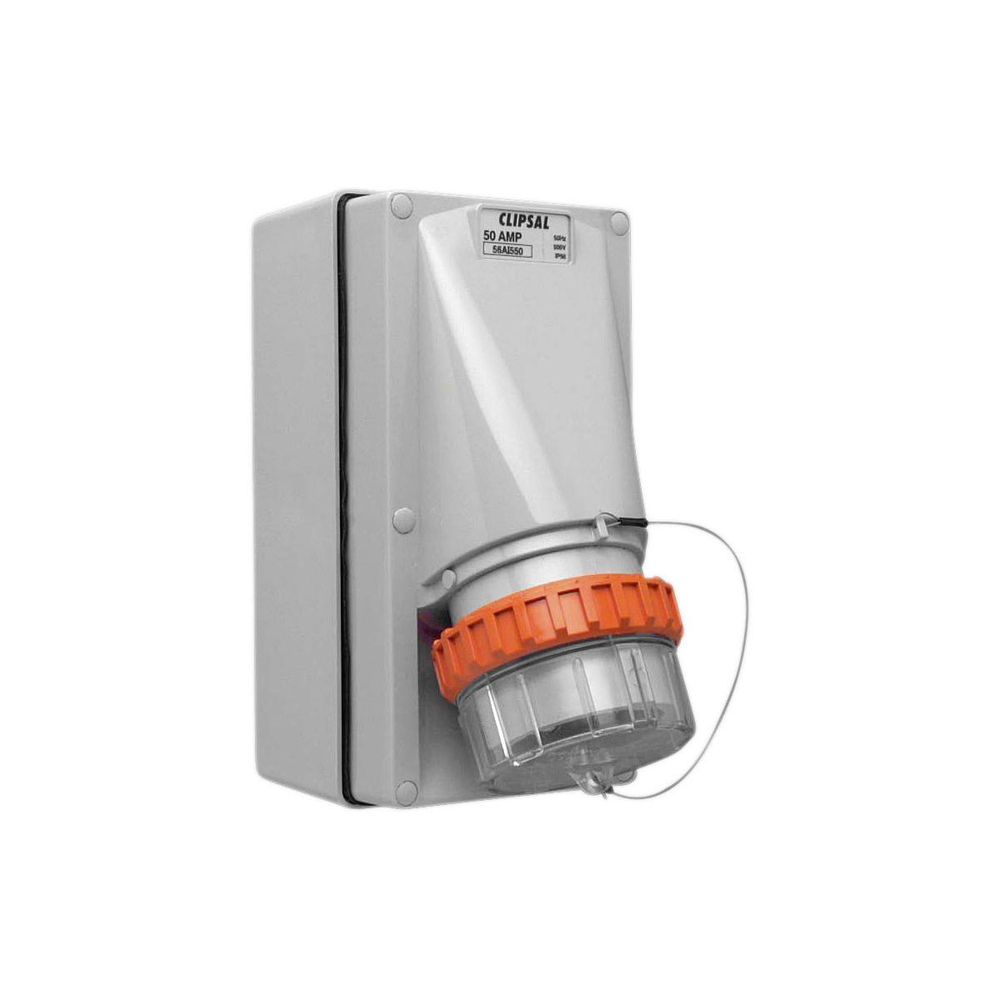

The Clipsal 56 Series 5 Pin 50A Appliance Inlet (56AI550-GY) is a surface mounted weatherproof inlet for feeding three phase power into machinery and equipment. It has 5 round pins (3P+N+E) and is rated 50A at 500V.

The downward facing, angled pin housing lets an extension socket connect neatly without a bulky right angle entry, and a screwed lock ring is standard. It is rated IP66 when the supplied 56PC Series screw-on cap is fitted while not in use, and it mates with the 56CSC550 extension socket with no need for a special reverse pin plug.

Key Features

  • 50A, 500V Rating – Rated 50A at 500V AC.
  • 5 Round Pins – 3P+N+E configuration.
  • Angled Pin Housing – Downward facing for neat lead entry.
  • Screwed Lock Ring – Secures the extension socket and helps keep IP integrity.
  • IP66 Weatherproof – With the supplied screw-on cap fitted when not in use.
  • Mates with 56CSC550 – No special reverse pin plug needed.
  • Screw Terminals – Accept 10 to 16mm² conductors.
  • Polycarbonate Cover – Tough housing with brass screws.
  • Surface Mounted – Fixes directly to walls and equipment.
  • 56 Series Range – Part of Clipsal's 56 Series weatherproof family.

Specifications

  • Model: 56AI550-GY
  • Range: Clipsal 56 Series
  • Type: Appliance inlet, angled
  • Poles: 3P+N+E
  • Pins: 5, round
  • Rated Current: 50A
  • Rated Voltage: 500V AC, 50/60Hz
  • Terminals: 10–16mm²
  • Terminal Torque: 0.8 N.m
  • IP Rating: IP66 (with cap fitted when not in use)
  • Mounting: Surface
  • Dimensions: 204mm H x 101mm W x 165mm D
  • Colour: Grey (RAL 7035)
  • Matching Socket: 56CSC550 extension socket

Applications

  • Three phase power inputs on machinery and equipment
  • Generator and temporary supply connections
  • Outdoor and industrial sites

Bring heavy three phase power into equipment safely with the Clipsal 56AI550-GY 50A 5 pin appliance inlet.

Q. What plugs into the Clipsal 56AI550-GY?
A. It mates with the Clipsal 56CSC550 50A 5 pin extension socket. There is no need for a special reverse pin plug.

Q. What is the rating of the Clipsal 56AI550-GY?
A. It is rated 50A at 500V AC, with 5 round pins (3P+N+E).

Q. Is the Clipsal 56AI550-GY weatherproof?
A. Yes. It is rated IP66 when the supplied 56PC Series screw-on cap is fitted while the inlet is not in use.

Q. What conductor size does the Clipsal 56AI550-GY take?
A. The screw terminals accept 10 to 16mm² conductors.

All products must be installed by a licensed electrican. DIY electrical work is illegal and very dangerous.

Change of Mind
All products purchased from MJS Electrical Products & Supplies are backed by a thirty (30) day Peace of Mind Return Policy. All products returned must be in perfect unused condition, with all components, complete with original packaging. We will not allow returns on damaged or incomplete products. Proof of purchase is required. Should the product not be in original condition, please contact us before returning it as this may save you some unnecessary costs.

Damaged / Faulty Goods
If you find that the goods were damaged in transit or were faulty in some manner, please contact us within 24 hours of receiving the goods. We will organise for the return of the goods and arrange a credit towards your next purchase or send a replacement product. Customer will incur the cost of return postage and be credited the purchase price only. We recommend that you return your unwanted items using registered post or trackable courier. We can not be held responsible if returned items are lost in transit.

Warranties
Product warranties are governed by the respective manufacturers and / or suppliers warranty terms and conditions (available on request). We will not be liable to you or any third party for any loss suffered due to product failure. We will process product warranty claims through the respective manufacturers and/or suppliers. All warranties are void if the product is not installed by a licensed electrician.

Amp 50A
Colour Grey
Type Appliance Inlet
Voltage 500V AC
IP Rating IP66
Material Plastic, Polycarbonate (Cover)
Frequency 50Hz/60Hz
Standard AS/NZS 60320.1
Poles 3P + N + E
Range Clipsal 56 Series
Pin Number 5 Pins
Shape Of Pin Round
PRODUCT INFO
SKU CL56AI550-GY
Model # 56AI550-GY
Barcode # 9311554235673
Brand Clipsal
SHIPPING INFO
Shipping Weight 0.9800kg
Shipping Width 0.100m
Shipping Height 0.155m
Shipping Length 0.200m
