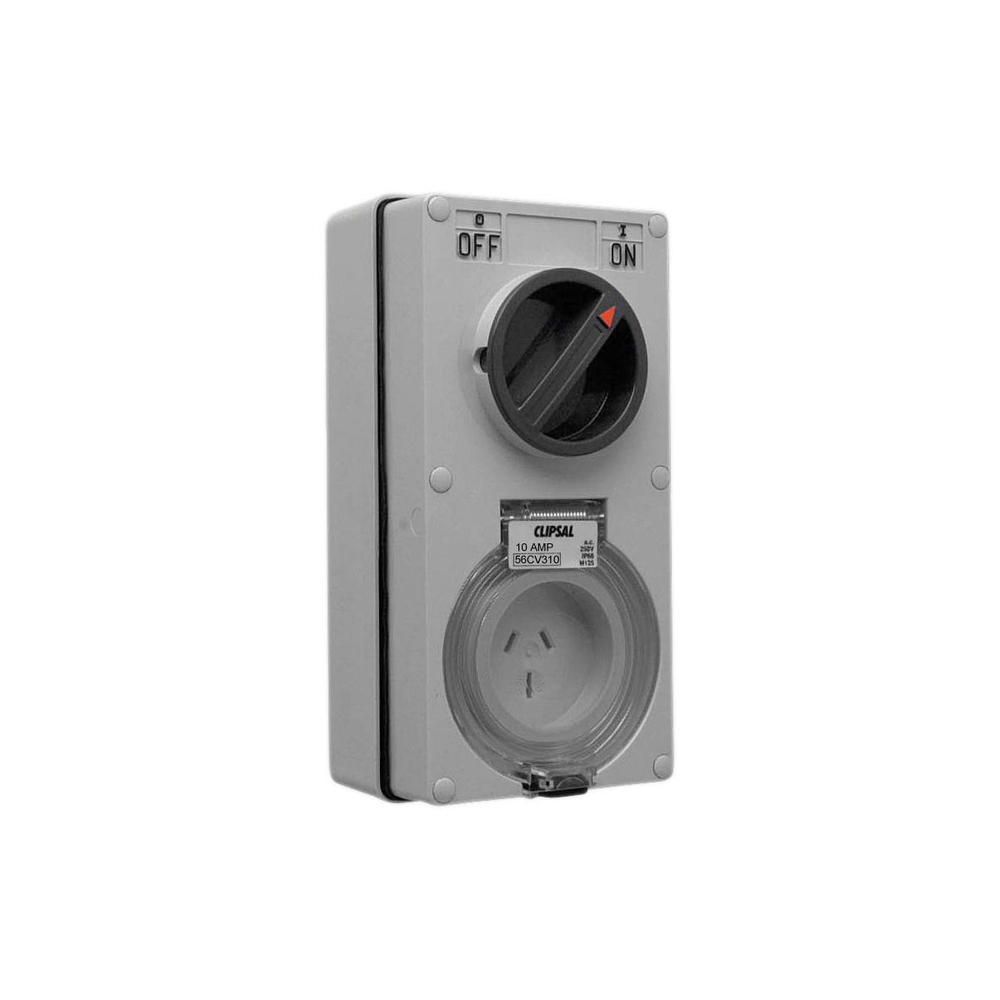

The Clipsal 56 Series 3 Flat Pin 10A 250V One Piece Cover Switched Socket Outlet in Grey (56CV310-GY) is an IP66 weatherproof switched socket outlet that combines a switch and socket in one unit for surface mounting. It is a single phase outlet with 3 flat pins (1P+N+E), rated 10A at 250V AC, and accepts the matching Clipsal 56P310 plug.

Part of Clipsal's 56 Series weatherproof family. It has phosphor bronze pins, a polycarbonate cover and a protective cover over the outlet, with screw terminals for 1.5 to 6mm² cable and an M80 motor rating. It measures 204 x 101 x 83mm and is finished in grey (RAL 7035).

Key Features

  • 10A, 250V – Rated 10A at 250V AC, 50Hz.
  • 3 Flat Pins – 1P+N+E configuration.
  • Switch and Socket – Switch and outlet combined in one unit.
  • IP66 Weatherproof – Protected against dust and powerful water jets.
  • Protective Cover – Cover over the socket outlet.
  • Phosphor Bronze Pins – Reliable electrical contact.
  • One Piece Cover – Switch and socket under one cover.
  • M80 Motor Rating – Motor rating M80.
  • Screw Terminals – Accept 1.5 to 6mm² cable.
  • Matching Plug – Accepts the 56 Series 56P310 plug.
  • 56 Series Range – Part of Clipsal's 56 Series weatherproof family.

Specifications

  • Model: 56CV310-GY
  • Range: Clipsal 56 Series
  • Type: Switched socket outlet, surface, one piece cover, polycarbonate cover
  • Rated Current: 10A
  • Rated Voltage: 250V AC, 50Hz
  • Pins: 3 flat pins
  • Configuration: 1P+N+E
  • Motor Rating: M80
  • Terminals: 1.5 to 6mm²
  • Protection: IP66
  • Orientation: Vertical
  • Matching Plug: 56P310
  • Colour: Grey
  • Dimensions: 204mm H x 101mm W x 83mm D

Applications

  • Single phase tools and equipment
  • Workshops and outdoor areas
  • Industrial and commercial sites

For a tough 10A outlet that stands up to water and dust, choose the Clipsal 56CV310-GY IP66 switched socket.

Q. What plug does the Clipsal 56CV310-GY accept?
A. It accepts the matching 56 Series 56P310 plug (3 flat pins).

Q. What is the Clipsal 56CV310-GY rated?
A. It is rated 10A at 250V AC, 1P+N+E, with an M80 motor rating.

Q. Is the Clipsal 56CV310-GY weatherproof?
A. Yes. It is rated IP66 against dust and powerful water jets when correctly installed.

Q. What cable size does the Clipsal 56CV310-GY take?
A. The screw terminals take 1.5 to 6mm² cable.

Q. What size is the Clipsal 56CV310-GY?
A. It measures 204mm high x 101mm wide x 83mm deep.

All products must be installed by a licensed electrican. DIY electrical work is illegal and very dangerous.

Change of Mind
All products purchased from MJS Electrical Products & Supplies are backed by a thirty (30) day Peace of Mind Return Policy. All products returned must be in perfect unused condition, with all components, complete with original packaging. We will not allow returns on damaged or incomplete products. Proof of purchase is required. Should the product not be in original condition, please contact us before returning it as this may save you some unnecessary costs.

Damaged / Faulty Goods
If you find that the goods were damaged in transit or were faulty in some manner, please contact us within 24 hours of receiving the goods. We will organise for the return of the goods and arrange a credit towards your next purchase or send a replacement product. Customer will incur the cost of return postage and be credited the purchase price only. We recommend that you return your unwanted items using registered post or trackable courier. We can not be held responsible if returned items are lost in transit.

Warranties
Product warranties are governed by the respective manufacturers and / or suppliers warranty terms and conditions (available on request). We will not be liable to you or any third party for any loss suffered due to product failure. We will process product warranty claims through the respective manufacturers and/or suppliers. All warranties are void if the product is not installed by a licensed electrician.

Amp 10A
Colour Grey
Type Combination Switched Socket Outlet
IP Rating IP66
Material Polycarbonate (Cover)
Frequency 50Hz
Standard AS/NZS 3112, AS/NZS 4417
Poles 1P + N + E
Range Clipsal 56 Series
Pin Number 3 Pins
Shape Of Pin Flat
PRODUCT INFO
SKU CL56CV310-GY
Model # 56CV310-GY
Barcode # 9311554202927
Brand Clipsal
SHIPPING INFO
Shipping Weight 0.6990kg
Shipping Width 0.103m
Shipping Height 0.089m
Shipping Length 0.205m
