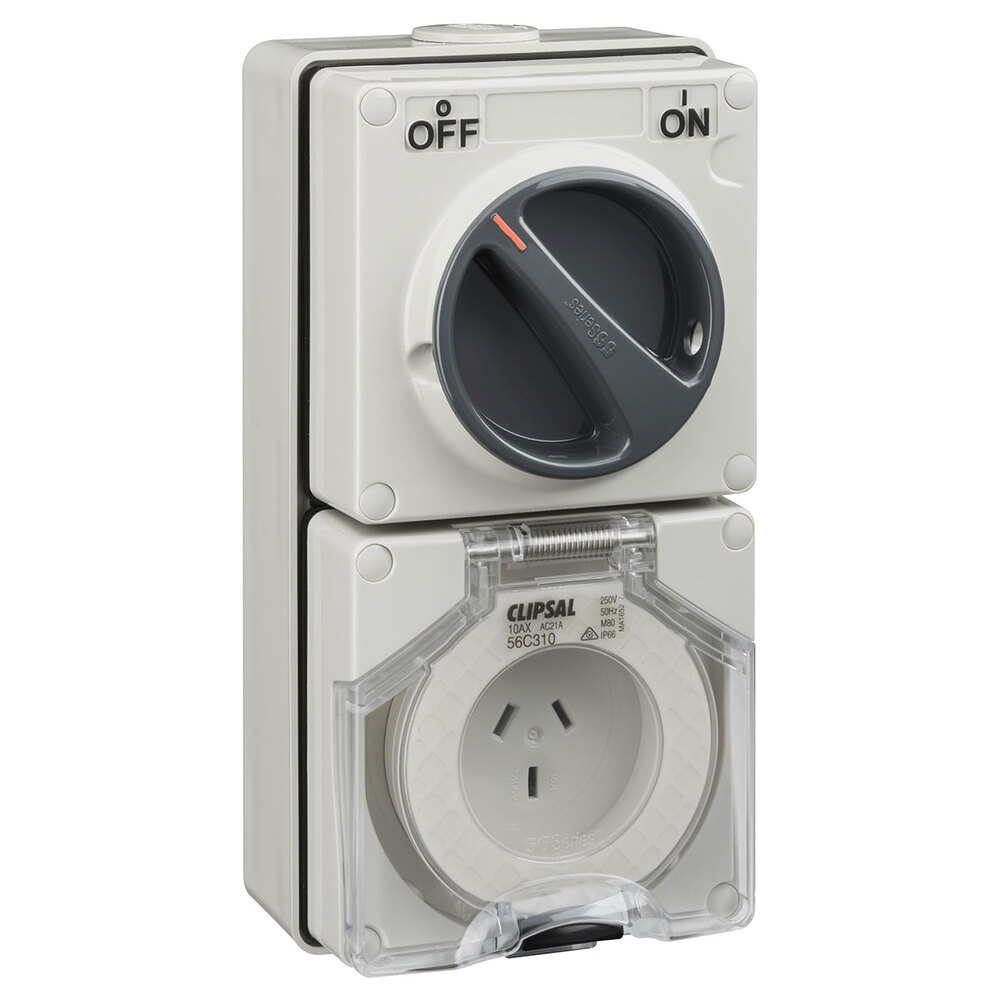

The Clipsal 56 Series Flat 3 Pin 10A Switched Socket in Grey (56C310-GY) is a weatherproof surface switched socket outlet for 10A, 3 flat pin plugs, rated 10A at 250V AC. It combines a switch and socket in one IP66 unit for outdoor, industrial and washdown areas.

It has phosphor bronze pins, an M80 motor rating, screw terminals for 1.5 to 6mm² cables and a protective cover over the outlet. It measures 204 x 101 x 83mm, comes complete with its enclosure, accepts the Clipsal 56P310 plug and is finished in standard 56 Series grey (RAL 7035).

Key Features

  • Flat 3 Pin 10A Outlet – Suits 10A, 3 flat pin plugs.
  • 10A, 250V Rating – Rated 10A at 250V AC, 50Hz.
  • Switch and Socket – Switch and outlet combined in one unit.
  • IP66 Weatherproof – Protected against dust and powerful water jets.
  • Protective Cover – Cover over the socket outlet.
  • Phosphor Bronze Pins – Reliable electrical contact.
  • M80 Motor Rating – Suits small motor loads.
  • Screw Terminals – Accept 1.5 to 6mm² cables.
  • Surface Mounted – Complete with enclosure.
  • 56 Series Range – Part of Clipsal's 56 Series weatherproof family.

Specifications

  • Model: 56C310-GY
  • Range: Clipsal 56 Series
  • Type: Switched socket outlet
  • Poles: 1P+N+E
  • Pins: 3, flat
  • Rated Current: 10A
  • Rated Voltage: 250V AC, 50Hz
  • Motor Rating: M80
  • Terminals: 1.5–6mm²
  • IP Rating: IP66
  • Mounting: Surface
  • Dimensions: 204mm H x 101mm W x 83mm D
  • Matching Plug: 56P310
  • Colour: Grey

Applications

  • 10A outdoor power for tools and equipment
  • Workshops, sheds and plant rooms
  • Industrial and commercial sites

For a tough 10A outlet that stands up to water and dust, choose the Clipsal 56C310-GY IP66 switched socket.

Q. What plug does the Clipsal 56C310-GY accept?
A. It accepts 10A, 3 flat pin plugs, including the Clipsal 56 Series 56P310 plug.

Q. Is the Clipsal 56C310-GY weatherproof?
A. Yes. It is rated IP66 against dust and powerful water jets when correctly installed.

Q. Is an enclosure included with the Clipsal 56C310-GY?
A. Yes. It is a complete surface mounted switched socket, measuring 204 x 101 x 83mm.

Q. What cable size does the Clipsal 56C310-GY take?
A. The screw terminals take 1.5 to 6mm² cables.

All products must be installed by a licensed electrican. DIY electrical work is illegal and very dangerous.

Change of Mind
All products purchased from MJS Electrical Products & Supplies are backed by a thirty (30) day Peace of Mind Return Policy. All products returned must be in perfect unused condition, with all components, complete with original packaging. We will not allow returns on damaged or incomplete products. Proof of purchase is required. Should the product not be in original condition, please contact us before returning it as this may save you some unnecessary costs.

Damaged / Faulty Goods
If you find that the goods were damaged in transit or were faulty in some manner, please contact us within 24 hours of receiving the goods. We will organise for the return of the goods and arrange a credit towards your next purchase or send a replacement product. Customer will incur the cost of return postage and be credited the purchase price only. We recommend that you return your unwanted items using registered post or trackable courier. We can not be held responsible if returned items are lost in transit.

Warranties
Product warranties are governed by the respective manufacturers and / or suppliers warranty terms and conditions (available on request). We will not be liable to you or any third party for any loss suffered due to product failure. We will process product warranty claims through the respective manufacturers and/or suppliers. All warranties are void if the product is not installed by a licensed electrician.

Amp 10A
Colour Grey
Type Combination Switched Socket Outlet
IP Rating IP66
Material ABS (Cover)
Frequency 50Hz
Standard AS/NZS 3123, AS/NZS 3133
Poles 1P + N + E
Range Clipsal 56 Series
Pin Number 3 Pins
Shape Of Pin Flat
PRODUCT INFO
SKU CL56C310-GY
Model # 56C310-GY
Barcode # 9311554198459
Brand Clipsal
SHIPPING INFO
Shipping Weight 0.7060kg
Shipping Width 0.106m
Shipping Height 0.094m
Shipping Length 0.208m
