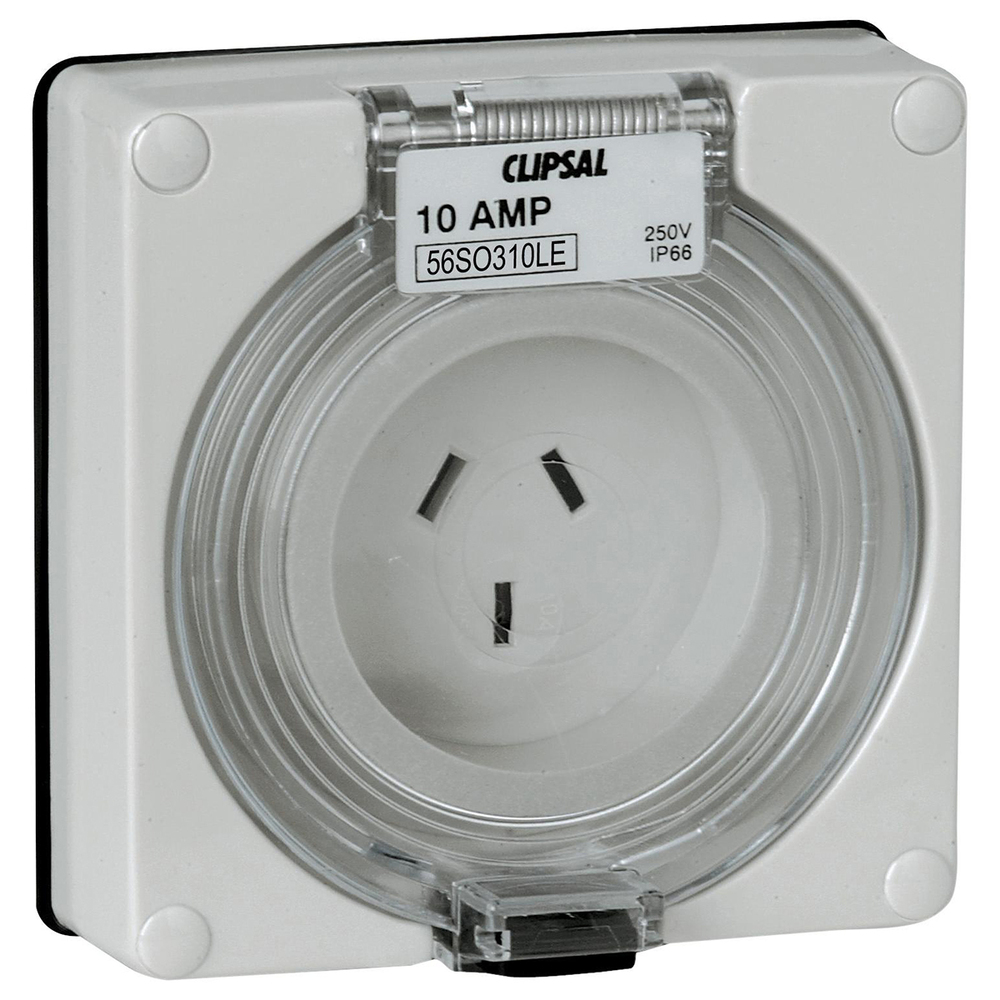

The Clipsal 56 Series 3 Flat Pin 10A 250V Socket Outlet Less Enclosure in Grey (56SO310LE-GY) is a single phase socket outlet with 3 flat pins (1P+N+E), rated 10A at 250V AC. It is the Less Enclosure (LE) base version, so the surface enclosure is not included. It accepts the matching Clipsal 56P310 plug.

Part of Clipsal's 56 Series weatherproof family. It has a polycarbonate cover and brass terminal screws that take 1.5 to 6mm² rigid or stranded cable, tightened to 0.8 N.m, and it measures 107 x 101 x 64mm. Clipsal rates it IP66. The finish is grey (RAL 7035).

Key Features

  • 10A, 250V – Rated 10A at 250V AC, 50Hz.
  • 3 Flat Pins – 1P+N+E configuration.
  • Less Enclosure – Base version, enclosure not included.
  • Matching Plug – Accepts the 56 Series 56P310 plug.
  • IP66 Rated – Protected against dust and powerful water jets.
  • Brass Terminal Screws – Take 1.5 to 6mm² rigid or stranded cable.
  • 0.8 N.m Torque – Terminal tightening torque.
  • Polycarbonate Cover – Tough moulded cover.
  • 56 Series Range – Matches Clipsal 56 Series plugs and accessories.

Specifications

  • Model: 56SO310LE-GY
  • Range: Clipsal 56 Series
  • Type: Surface socket outlet, less enclosure, polycarbonate cover
  • Rated Current: 10A
  • Rated Voltage: 250V AC, 50Hz
  • Pins: 3 flat pins
  • Configuration: 1P+N+E
  • Terminals: Brass screws, 1.5 to 6mm², 0.8 N.m
  • IP Rating: IP66
  • Matching Plug: 56P310
  • Colour: Grey
  • Dimensions: 107mm H x 101mm W x 64mm D

Applications

  • Single phase tools and equipment
  • Workshops and outdoor areas
  • Industrial and commercial sites

Replace or build a 56 Series 10A outlet with the Clipsal 56SO310LE-GY less enclosure socket.

Q. What plug suits the Clipsal 56SO310LE-GY?
A. It accepts the matching 56 Series 56P310 plug.

Q. What is the Clipsal 56SO310LE-GY rated?
A. It is rated 10A at 250V AC, 1P+N+E.

Q. Does the Clipsal 56SO310LE-GY include an enclosure?
A. No. It is the less enclosure (LE) base version, measuring 107 x 101 x 64mm.

Q. What cable does the Clipsal 56SO310LE-GY take?
A. The brass screw terminals take 1.5 to 6mm² rigid or stranded cable, tightened to 0.8 N.m.

All products must be installed by a licensed electrican. DIY electrical work is illegal and very dangerous.

Change of Mind
All products purchased from MJS Electrical Products & Supplies are backed by a thirty (30) day Peace of Mind Return Policy. All products returned must be in perfect unused condition, with all components, complete with original packaging. We will not allow returns on damaged or incomplete products. Proof of purchase is required. Should the product not be in original condition, please contact us before returning it as this may save you some unnecessary costs.

Damaged / Faulty Goods
If you find that the goods were damaged in transit or were faulty in some manner, please contact us within 24 hours of receiving the goods. We will organise for the return of the goods and arrange a credit towards your next purchase or send a replacement product. Customer will incur the cost of return postage and be credited the purchase price only. We recommend that you return your unwanted items using registered post or trackable courier. We can not be held responsible if returned items are lost in transit.

Warranties
Product warranties are governed by the respective manufacturers and / or suppliers warranty terms and conditions (available on request). We will not be liable to you or any third party for any loss suffered due to product failure. We will process product warranty claims through the respective manufacturers and/or suppliers. All warranties are void if the product is not installed by a licensed electrician.

Amp 10A
Colour Grey
Type Socket Outlet
IP Rating IP66
Material Polycarbonate (Cover)
Frequency 50Hz
Standard AS/NZS 3112, AS/NZS 4417.1
Poles 1P + N + E
Range Clipsal 56 Series
Pin Number 3 Pins
Shape Of Pin Flat
PRODUCT INFO
SKU CL56SO310LE-GY
Model # 56SO310LE-GY
Barcode # 9311554198756
Brand Clipsal
SHIPPING INFO
Shipping Weight 0.2160kg
Shipping Width 0.070m
Shipping Height 0.100m
Shipping Length 0.104m
