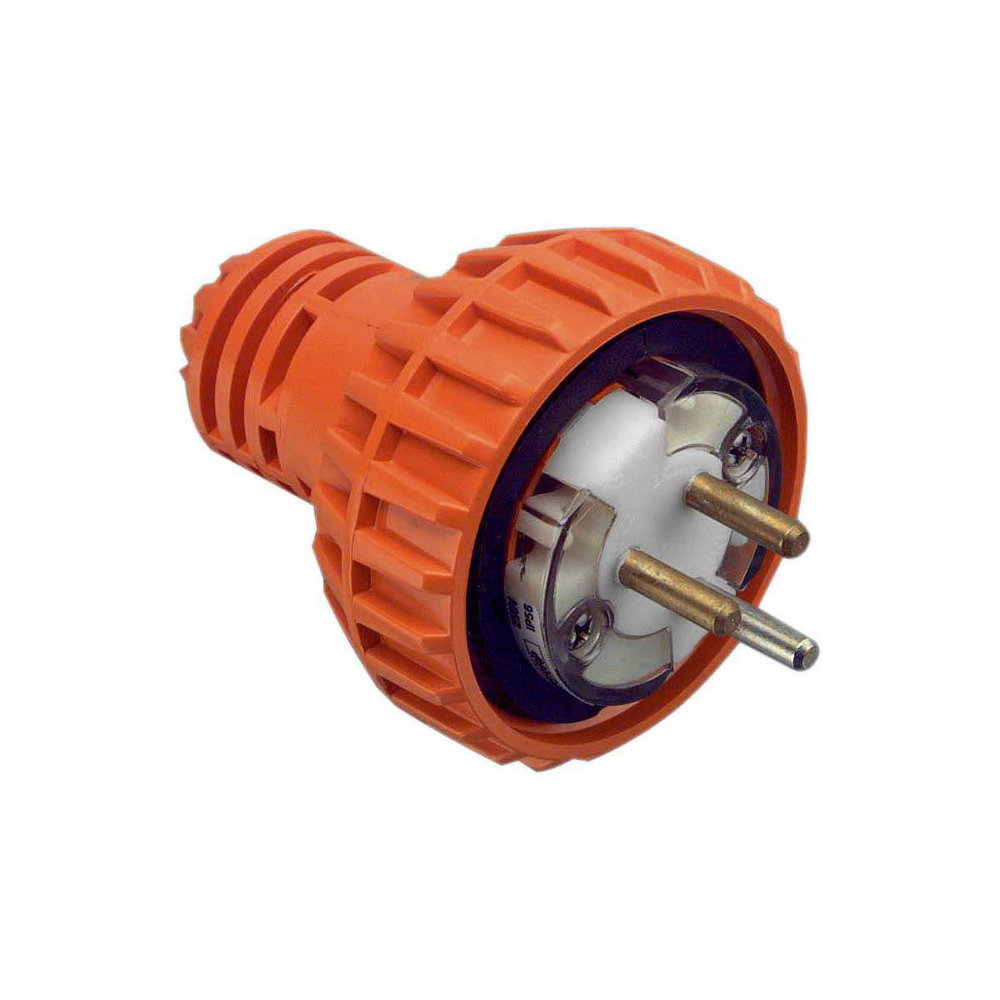

The Clipsal 56 Series 3 Round Pin 10A Plug Top in Chemical Resistant Orange (56P310RP-RO) is a weatherproof plug with 3 round pins (1P+N+E), rated 10A at 250V AC. It is used to make up leads for equipment fitted with 56 Series round pin sockets.

The plug is rated IP66 and has a PBT housing in chemical resistant orange, brass pins and screw terminals for 0.75 to 1mm² conductors. Cable from 7 to 10mm in diameter enters through an M20 cable gland, and it mates with the Clipsal 56C310RP switched socket.

Key Features

  • 3 Round Pin Plug – 1P+N+E pin layout.
  • 10A, 250V Rating – Rated 10A at 250V AC, 50Hz.
  • IP66 Weatherproof – Protected against dust and powerful water jets.
  • Chemical Resistant Orange – PBT housing for harsh environments.
  • Brass Pins – Solid brass pins.
  • Screw Terminals – Accept 0.75 to 1mm² conductors.
  • Cable Gland Entry – M20 thread, suits 7 to 10mm cable.
  • Matching Socket – Suits the Clipsal 56C310RP.
  • 56 Series Range – Part of Clipsal's 56 Series weatherproof family.

Specifications

  • Model: 56P310RP-RO
  • Range: Clipsal 56 Series
  • Type: Plug top, round pin
  • Poles: 1P+N+E
  • Pins: 3, round
  • Rated Current: 10A
  • Rated Voltage: 250V AC, 50Hz
  • Terminals: Screw, 0.75–1mm²
  • Wire Strip Length: 10mm
  • Cable Diameter: 7–10mm
  • Gland Thread: M20
  • IP Rating: IP66
  • Dimensions: 67mm H x 67mm W x 112.5mm D
  • Colour: Chemical Resistant Orange (RAL 2004)

Applications

  • Dedicated circuits using round pin outlets
  • Food processing and washdown areas
  • Industrial and outdoor equipment leads

Make up a tough round pin lead with the Clipsal 56P310RP-RO 10A plug top.

Q. Which socket suits the Clipsal 56P310RP-RO?
A.
It mates with the Clipsal 56C310RP 3 round pin 10A switched socket.

Q. Will the Clipsal 56P310RP-RO fit a standard flat pin outlet?
A.
No. It has 3 round pins and only fits matching round pin sockets.

Q. What cable suits the Clipsal 56P310RP-RO?
A.
The terminals take 0.75 to 1mm² conductors, and the M20 gland suits cable from 7 to 10mm in diameter.

Q. Is the Clipsal 56P310RP-RO weatherproof?
A.
Yes. It is rated IP66 when correctly assembled.
