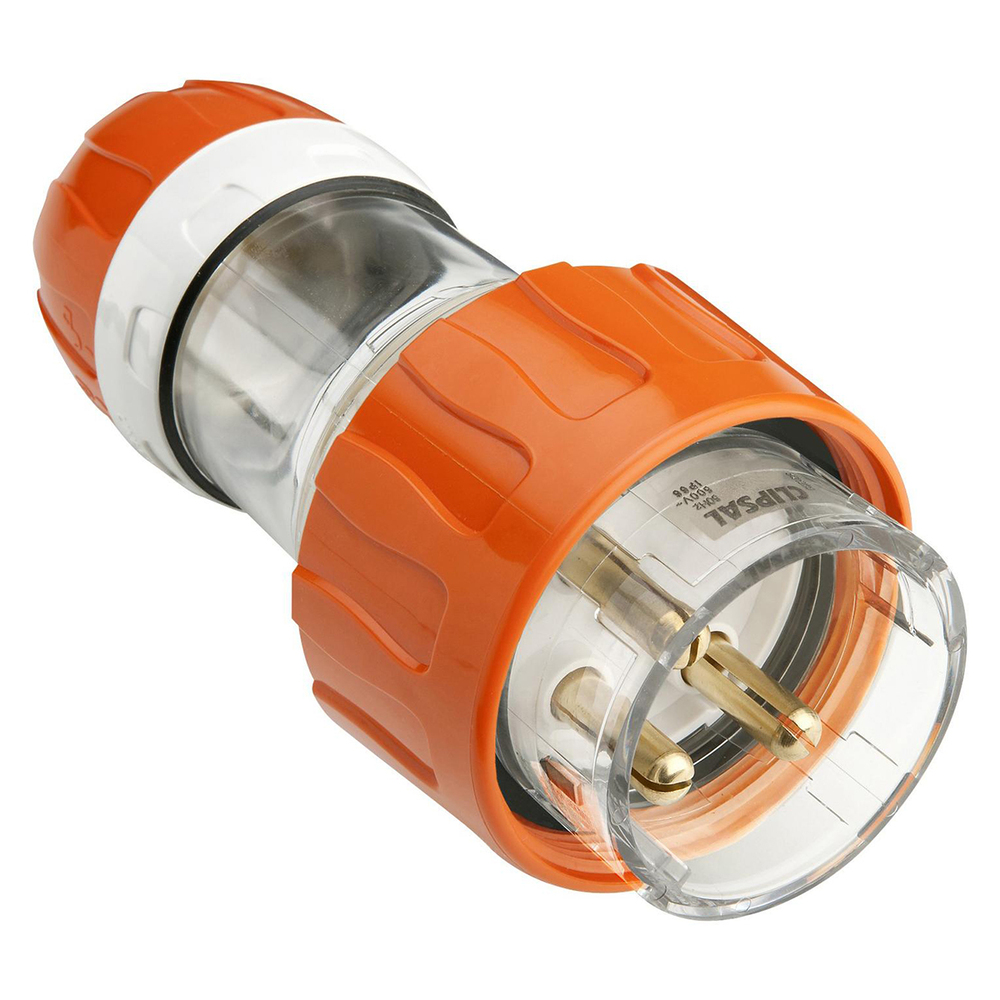

The Clipsal 56 Series Round 3 Pin 32A Straight Plug in Electric Orange (56P332-EO) is a weatherproof plug top for making up heavy duty 32A leads. It has 3 round pins (1P+N+E) and is rated 32A at 250V AC.

The IP66 polycarbonate housing has brass pins, screw terminals for 2.5–25mm² cables and a M40 cable gland. It mates with 56 Series 32A round pin sockets such as the 56SO332, and the Electric Orange colour makes leads easy to see on site. Cable is not included.

Key Features

  • 32A, 250V Rating – Rated 32A at 250V AC, 50Hz.
  • 3 Round Pins – 1P+N+E configuration.
  • Straight Plug Top – Inline design for flexible leads.
  • IP66 Weatherproof – Protected against dust and powerful water jets.
  • Cable Gland – M40 gland for 9 to 29mm cable.
  • Screw Terminals – Accept 2.5–25mm² cables.
  • Brass Pins – Reliable electrical contact.
  • Polycarbonate Housing – Tough, impact resistant body.
  • Matching Sockets – Suits 56 Series 32A round pin sockets such as 56SO332.
  • Electric Orange – High visibility on worksites.
  • 56 Series Range – Part of Clipsal's 56 Series weatherproof family.

Specifications

  • Model: 56P332-EO
  • Range: Clipsal 56 Series
  • Type: Straight plug
  • Rated Current: 32A
  • Rated Voltage: 250V AC, 50Hz
  • Pins: 3, round (1P+N+E)
  • Terminals: 2.5–25mm²
  • Cable Diameter: 9 to 29mm
  • Cable Gland: M40
  • Strip Length: 20mm
  • IP Rating: IP66
  • Matching Sockets: 56SO332, 56CSC332-EO
  • Colour: Electric Orange

Applications

  • Making up heavy duty extension and equipment leads
  • Construction sites and portable power
  • Workshops, factories and outdoor areas

Make up tough, highly visible 32A leads with the Clipsal 56P332-EO round 3 pin straight plug.

Q. What is the rating of the Clipsal 56P332-EO?
A. It is rated 32A at 250V AC, with 3 round pins (1P+N+E).

Q. Which sockets suit the Clipsal 56P332-EO?
A. It mates with 56 Series 32A round pin sockets such as the 56SO332, and the 56CSC332-EO portable socket.

Q. What cable suits the Clipsal 56P332-EO?
A. The terminals take 2.5–25mm² cables, and the M40 gland suits 9 to 29mm cable. Cable is not included.

Q. Is the Clipsal 56P332-EO weatherproof?
A. Yes. The polycarbonate plug is rated IP66 when correctly assembled.

All products must be installed by a licensed electrican. DIY electrical work is illegal and very dangerous.

Change of Mind
All products purchased from MJS Electrical Products & Supplies are backed by a thirty (30) day Peace of Mind Return Policy. All products returned must be in perfect unused condition, with all components, complete with original packaging. We will not allow returns on damaged or incomplete products. Proof of purchase is required. Should the product not be in original condition, please contact us before returning it as this may save you some unnecessary costs.

Damaged / Faulty Goods
If you find that the goods were damaged in transit or were faulty in some manner, please contact us within 24 hours of receiving the goods. We will organise for the return of the goods and arrange a credit towards your next purchase or send a replacement product. Customer will incur the cost of return postage and be credited the purchase price only. We recommend that you return your unwanted items using registered post or trackable courier. We can not be held responsible if returned items are lost in transit.

Warranties
Product warranties are governed by the respective manufacturers and / or suppliers warranty terms and conditions (available on request). We will not be liable to you or any third party for any loss suffered due to product failure. We will process product warranty claims through the respective manufacturers and/or suppliers. All warranties are void if the product is not installed by a licensed electrician.

Amp 32A
Colour Electric Orange
Type Plug
IP Rating IP66
Material Polycarbonate (Housing), Plastic
Frequency 50Hz
Standard AS/NZS 3123
Poles 1P + N + E
Range Clipsal 56 Series
Pin Number 3 Pins
Shape Of Pin Round
PRODUCT INFO
SKU CL56P332-EO
Model # 56P332-EO
Barcode # 9311554238001
Brand Clipsal
SHIPPING INFO
Shipping Weight 0.3760kg
Shipping Width 0.095m
Shipping Height 0.093m
Shipping Length 0.201m
