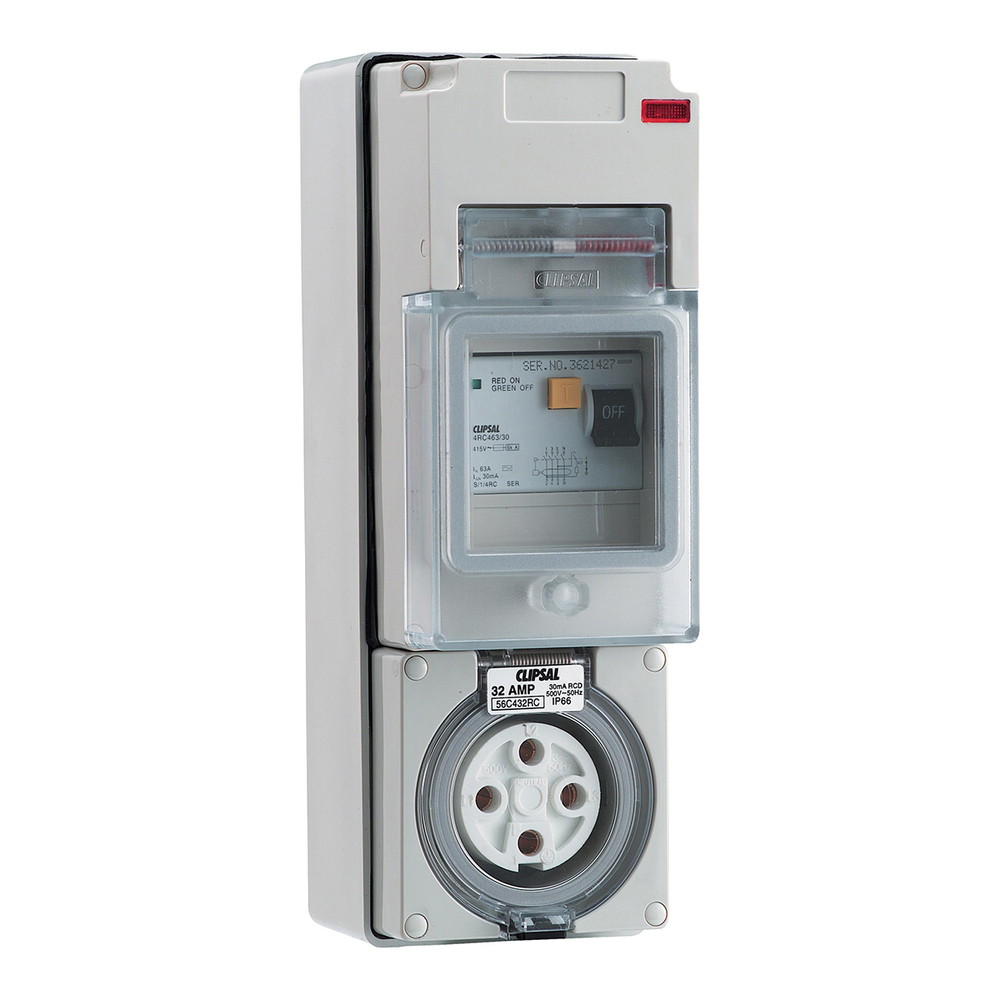

The Clipsal 56 Series Round 4 Pin 32A RCD Protected Switched Socket (56C432RC-GY) combines a three phase 32A switched outlet with built-in 30mA RCD protection in one weatherproof enclosure. Rated 32A at 500V, it suits heavy duty three phase equipment.

The IP66 surface mounted unit is designed for vertical installation, with screw terminals accepting 4 to 16mm² conductors and a push-button RCD test. It is a robust choice for workshops, construction sites and industrial plants.

Key Features

  • RCD Protected – Built-in 30mA residual current protection.
  • 4 Round Pins – Suits 32A, 4 round pin plugs.
  • 32A Rating – For heavy duty three phase loads.
  • 500V Rated – Three phase supply.
  • Switched Outlet – Isolate the outlet before connecting.
  • IP66 Weatherproof – Protected against dust and powerful water jets.
  • Surface Mounted – Fixes directly to walls and posts.
  • Screw Terminals – Accept 4 to 16mm² conductors.
  • 56 Series Range – Part of Clipsal's 56 Series industrial family.

Specifications

  • Model: 56C432RC-GY
  • Range: Clipsal 56 Series
  • Type: RCD protected switched socket outlet
  • Pins: 4 round
  • Rated Current: 32A
  • Rated Voltage: 500V AC, 50Hz
  • RCD Sensitivity: 30mA
  • IP Rating: IP66
  • Mounting: Surface, vertical
  • Terminals: Screw, 4–16mm²
  • Dimensions: 294 x 101 x 110mm
  • Colour: Grey

Applications

  • Three phase machinery in workshops and factories
  • Construction sites and temporary power
  • Farms, plant rooms and outdoor equipment

Protection and power in one unit, the Clipsal 56C432RC-GY delivers a 32A three phase outlet with 30mA RCD protection.

Q. Does it include RCD protection?
A. Yes. It has built-in 30mA RCD protection.

Q. What plug does it accept?
A. It accepts 32A, 4 round pin plugs.

Q. Is it weatherproof?
A. Yes. It is rated IP66.

Q. What cable sizes can be used?
A. Screw terminals accept 4 to 16mm² conductors.

All products must be installed by a licensed electrican. DIY electrical work is illegal and very dangerous.
