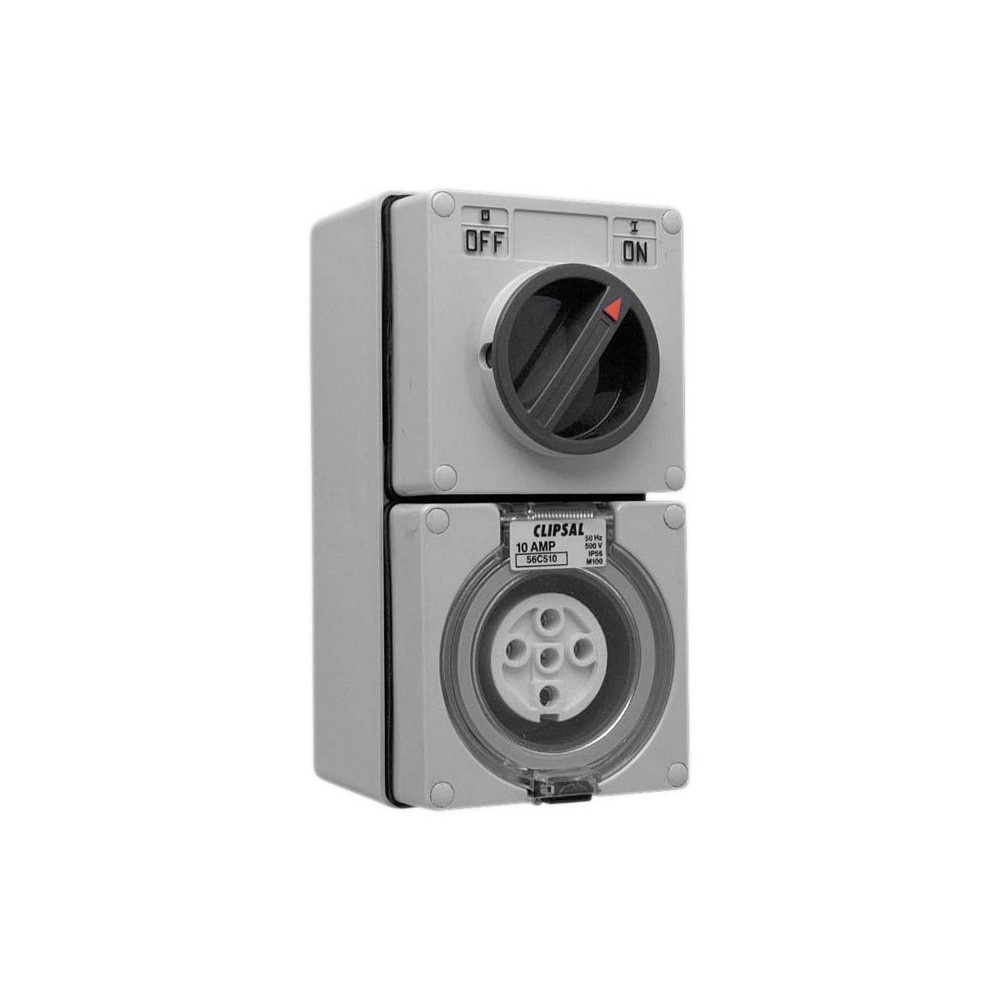

The Clipsal 56 Series 5 Round Pin 10A 500V Switched Socket Outlet in Grey (56C510-GY) is an IP66 weatherproof switched socket outlet that combines a switch and socket in one unit for surface mounting. It is a 3 phase outlet with 5 round pins (3P+N+E), rated 10A at 500V AC, and accepts the matching Clipsal 56P510 plug.

Part of Clipsal's 56 Series weatherproof family. It has phosphor bronze pins, a polycarbonate cover and a protective cover over the outlet, with screw terminals for 1.5 to 6mm² cable and an M100 motor rating. It measures 204 x 101 x 108mm and is finished in grey (RAL 7035).

Key Features

  • 10A, 500V – Rated 10A at 500V AC, 50Hz.
  • 5 Round Pins – 3P+N+E configuration.
  • Switch and Socket – Switch and outlet combined in one unit.
  • IP66 Weatherproof – Protected against dust and powerful water jets.
  • Protective Cover – Cover over the socket outlet.
  • Phosphor Bronze Pins – Reliable electrical contact.
  • M100 Motor Rating – Motor rating M100.
  • Screw Terminals – Accept 1.5 to 6mm² cable.
  • Matching Plug – Accepts the 56 Series 56P510 plug.
  • 56 Series Range – Part of Clipsal's 56 Series weatherproof family.

Specifications

  • Model: 56C510-GY
  • Range: Clipsal 56 Series
  • Type: Switched socket outlet, surface, polycarbonate cover
  • Rated Current: 10A
  • Rated Voltage: 500V AC, 50Hz
  • Pins: 5 round pins
  • Configuration: 3P+N+E
  • Motor Rating: M100
  • Terminals: 1.5 to 6mm²
  • Protection: IP66
  • Matching Plug: 56P510
  • Colour: Grey
  • Dimensions: 204mm H x 101mm W x 108mm D

Applications

  • 3 phase power for machinery and workshops
  • Construction sites and portable power
  • Industrial and agricultural sites

For a tough 10A outlet that stands up to water and dust, choose the Clipsal 56C510-GY IP66 switched socket.

Q. What plug does the Clipsal 56C510-GY accept?
A. It accepts the matching 56 Series 56P510 plug (5 round pins).

Q. What is the Clipsal 56C510-GY rated?
A. It is rated 10A at 500V AC, 3P+N+E, with an M100 motor rating.

Q. Is the Clipsal 56C510-GY weatherproof?
A. Yes. It is rated IP66 against dust and powerful water jets when correctly installed.

Q. What cable size does the Clipsal 56C510-GY take?
A. The screw terminals take 1.5 to 6mm² cable.

Q. What size is the Clipsal 56C510-GY?
A. It measures 204mm high x 101mm wide x 108mm deep.
