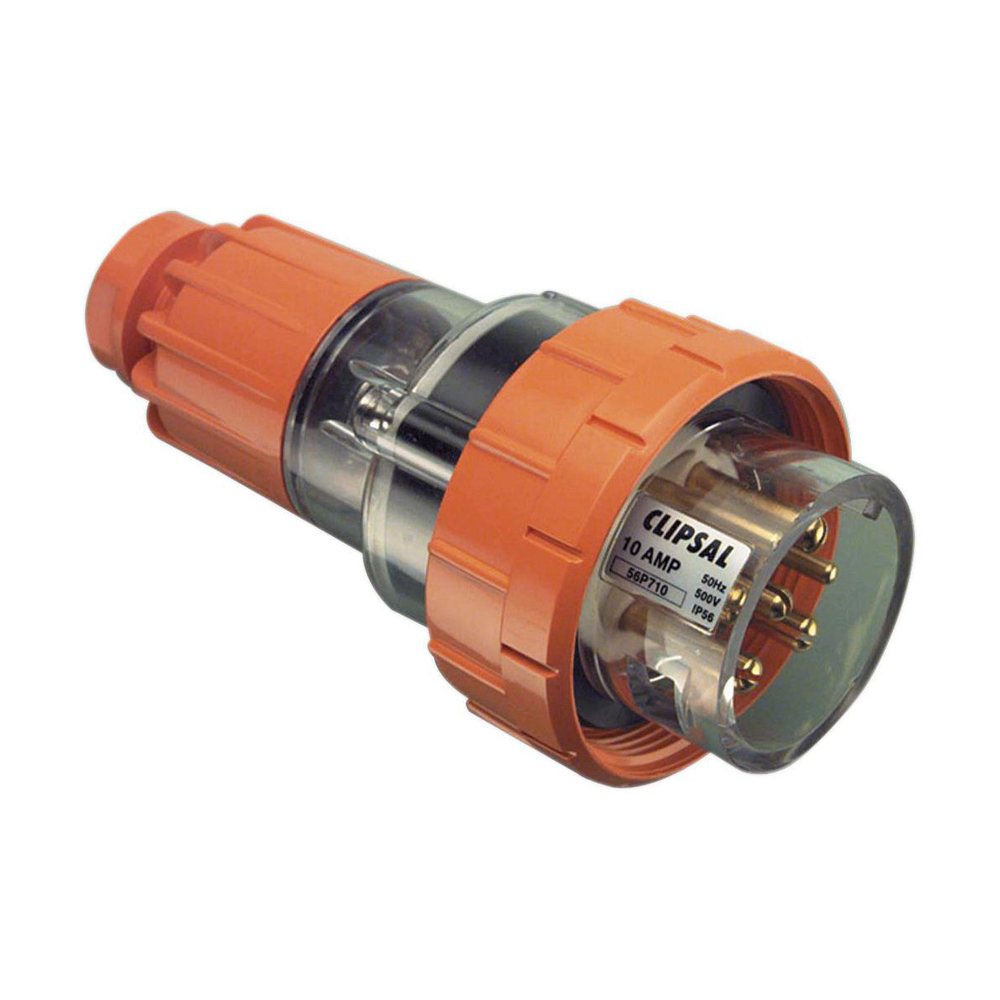

The Clipsal 56 Series Round 7 Pin 10A Straight Plug in Electric Orange (56P710-EO) is a weatherproof plug for 10A, 7 round pin 56 Series outlets. Rated 10A at 500V, it is configured 3P+N+E for three phase leads and equipment.

The plug is rated IP66, with a polycarbonate housing, brass pins and screw terminals accepting 1 to 6mm² conductors. Its cable gland entry takes cable from 7 to 16mm diameter, and the Electric Orange colour makes leads easy to spot.

Key Features

  • 7 Round Pins – Suits 10A, 7 round pin 56 Series outlets.
  • 10A Rating – For light three phase loads.
  • 500V Rated – 3P+N+E configuration.
  • IP66 Weatherproof – Protected against dust and powerful water jets.
  • Cable Gland Entry – Grips and seals 7 to 16mm cable.
  • Screw Terminals – Accept 1 to 6mm² conductors.
  • Brass Pins – Durable brass pins.
  • Polycarbonate Housing – Tough, impact resistant body.
  • High Visibility – Electric Orange colour.
  • 56 Series Range – Part of Clipsal's 56 Series weatherproof family.

Specifications

  • Model: 56P710-EO
  • Range: Clipsal 56 Series
  • Type: Straight plug
  • Pins: 7 round
  • Poles: 3P+N+E
  • Rated Current: 10A
  • Rated Voltage: 500V AC, 50Hz
  • IP Rating: IP66
  • Terminals: Screw, 1–6mm²
  • Cable Diameter: 7–16mm
  • Dimensions: 78 x 78 x 167mm
  • Colour: Electric Orange

Applications

  • Three phase extension leads
  • Workshop machinery and site equipment
  • Factories, farms and construction sites

Tough and highly visible, the Clipsal 56P710-EO is a 10A, 7 pin plug for weatherproof three phase connections.

Q. What outlet does the Clipsal 56P710-EO suit?
A. It suits 10A, 7 round pin 56 Series outlets, such as the Clipsal 56SO710 socket and 56C710 switched socket.

Q. What cable sizes suit the Clipsal 56P710-EO?
A. Screw terminals accept 1 to 6mm² conductors, and the gland takes cable from 7 to 16mm diameter.

Q. Is the Clipsal 56P710-EO weatherproof?
A. Yes. It is rated IP66 when correctly assembled.

Q. Why is the Clipsal 56P710-EO orange?
A. The Electric Orange colour makes leads highly visible on site.

All products must be installed by a licensed electrican. DIY electrical work is illegal and very dangerous.

Change of Mind
All products purchased from MJS Electrical Products & Supplies are backed by a thirty (30) day Peace of Mind Return Policy. All products returned must be in perfect unused condition, with all components, complete with original packaging. We will not allow returns on damaged or incomplete products. Proof of purchase is required. Should the product not be in original condition, please contact us before returning it as this may save you some unnecessary costs.

Damaged / Faulty Goods
If you find that the goods were damaged in transit or were faulty in some manner, please contact us within 24 hours of receiving the goods. We will organise for the return of the goods and arrange a credit towards your next purchase or send a replacement product. Customer will incur the cost of return postage and be credited the purchase price only. We recommend that you return your unwanted items using registered post or trackable courier. We can not be held responsible if returned items are lost in transit.

Warranties
Product warranties are governed by the respective manufacturers and / or suppliers warranty terms and conditions (available on request). We will not be liable to you or any third party for any loss suffered due to product failure. We will process product warranty claims through the respective manufacturers and/or suppliers. All warranties are void if the product is not installed by a licensed electrician.

Amp 10A
Colour Electric Orange
Type Plug
Voltage 500V AC
IP Rating IP66
Material Polycarbonate (Housing), Plastic
Frequency 50Hz
Standard AS/NZS 3123
Poles 3P + N + E
Range Clipsal 56 Series
Pin Number 7 Pins
Shape Of Pin Round
PRODUCT INFO
SKU CL56P710-EO
Model # 56P710-EO
Barcode # 9311554238193
Brand Clipsal
SHIPPING INFO
Shipping Weight 0.3370kg
Shipping Width 0.100m
Shipping Height 0.085m
Shipping Length 0.177m
