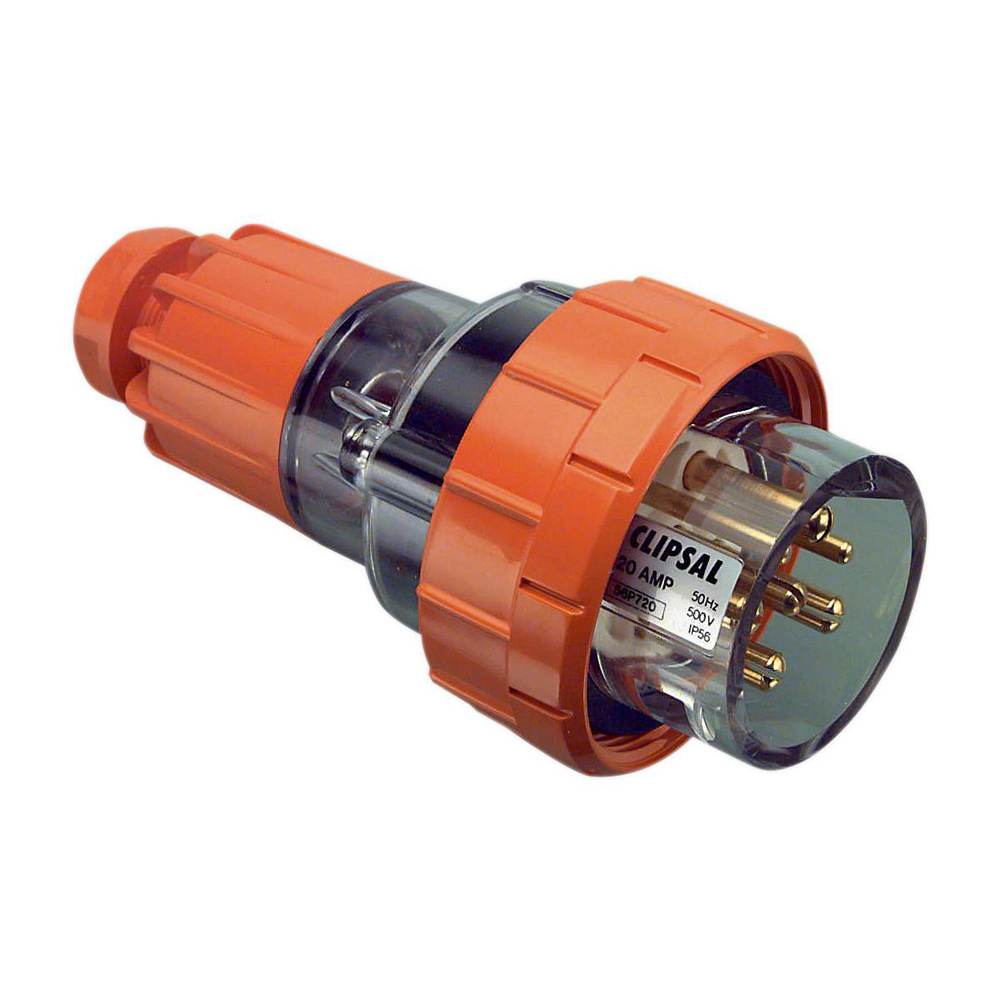

The Clipsal 56 Series 7 Round Pin 20A Straight Plug in Electric Orange (56P720-EO) is an IP66 weatherproof plug for making up heavy duty 20A leads. It has 7 round pins (3P+N+E) and is rated 20A at 500V AC.

Part of Clipsal's 56 Series weatherproof family. The plug has brass pins, screw terminals for 1 to 6mm² conductors and an M25 cable gland for 7 to 16mm cable. It mates with the matching 56 Series 56SO720 socket, and is finished in Electric Orange (RAL 2004). Cable is not included.

Key Features

  • 20A, 500V Rating – Rated 20A at 500V AC, 50Hz.
  • 7 Round Pins – 3P+N+E configuration.
  • Straight Plug – Inline design for flexible leads.
  • IP66 Weatherproof – Protected against dust and powerful water jets.
  • Cable Gland – M25 gland for 7 to 16mm cable.
  • Screw Terminals – Accept 1 to 6mm² conductors.
  • Brass Pins – Reliable electrical contact.
  • Matching Sockets – Suits the 56 Series 56SO720 socket.
  • 56 Series Range – Part of Clipsal's 56 Series weatherproof family.

Specifications

  • Model: 56P720-EO
  • Range: Clipsal 56 Series
  • Type: Straight plug
  • Rated Current: 20A
  • Rated Voltage: 500V AC, 50Hz
  • Pins: 7, round (3P+N+E)
  • Terminals: 1 to 6mm²
  • Cable Diameter: 7 to 16mm
  • Cable Gland: M25
  • IP Rating: IP66
  • Matching Sockets: 56SO720 socket
  • Colour: Electric Orange
  • Dimensions: 78mm H x 78mm W x 167mm D

Applications

  • 3 phase power for machinery and workshops
  • Construction sites and portable power
  • Industrial and agricultural sites

Make up tough 20A leads with the Clipsal 56P720-EO 7 round pin straight plug.

Q. What is the rating of the Clipsal 56P720-EO?
A. It is rated 20A at 500V AC, with 7 round pins (3P+N+E).

Q. Which sockets suit the Clipsal 56P720-EO?
A. It mates with the matching 56 Series 56SO720 socket.

Q. What cable suits the Clipsal 56P720-EO?
A. The terminals take 1 to 6mm² conductors, and the M25 gland suits 7 to 16mm cable. Cable is not included.

Q. Is the Clipsal 56P720-EO weatherproof?
A. Yes. The plug is rated IP66 when correctly assembled.
