The TPDL1C3 LED Downlight is suitable for multiple illumination applications from residential to commercial buildings. The slightly recessed frosted diffuser ensures reduced glare and soft glow output. The integrated colour temperature selector switch enables the choice of 3000K, 4000K and 6000K outputs to ensure the perfect illumination for a wide variety of installations.

Features:

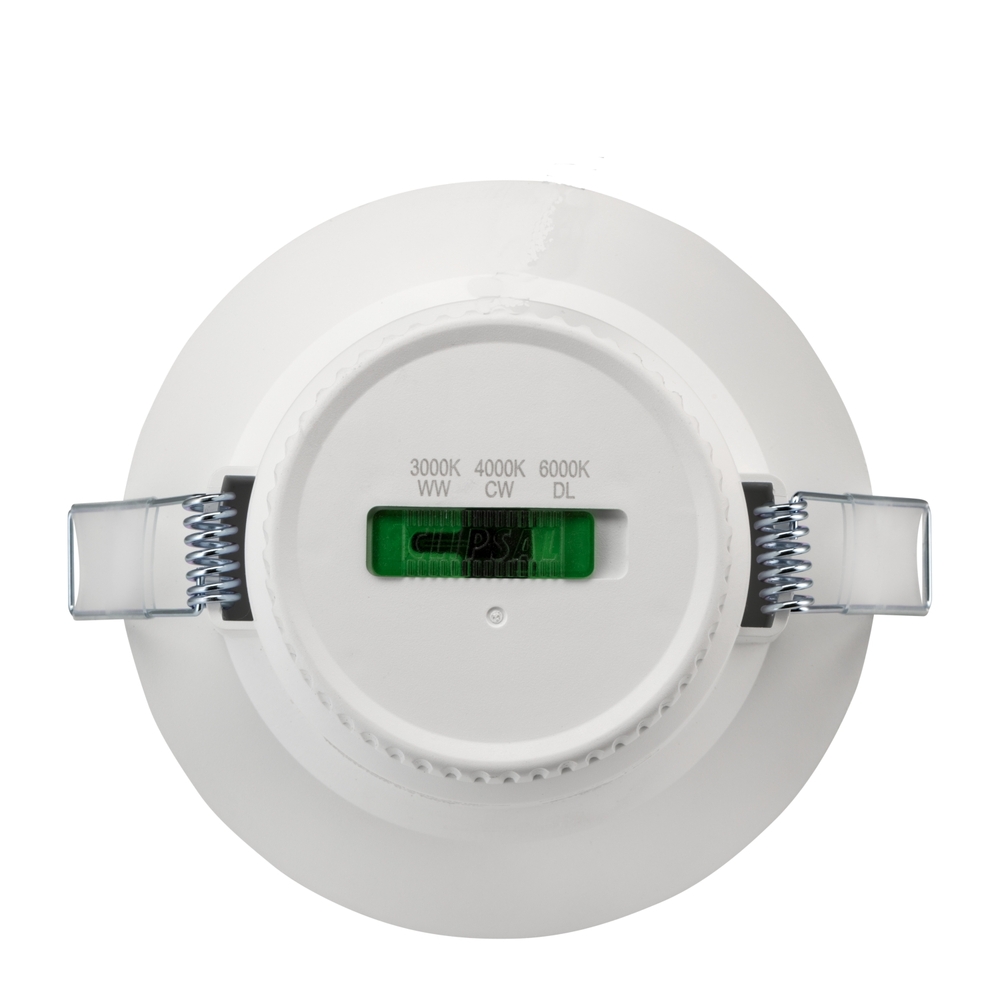

  • Tri-Temperature colour switch provides multiple colour outputs to be selected on installation (Default 3000K)
  • White Trim colour with Brushed Chrome and Black options (sold separately)
  • IC-4 rating allows the fitting to be abutted and covered by building material
  • Designed and tested to work with Clipsal 30/40/60 mech LED Dimmers to ensure smooth dimming performance and true compatibility​
  • Product can connect with Clipsal Wiser system to form part of a smart/connected home solution
  • Colour Temperature / Lumens: 700lm @ 3000K, 730lm @ 4000K, 750lm @ 6000K
  • Cut-Out: 90mm / Trim: 110mm diameter
  • 3 Year In Home Replacement Warranty!
  • 6 x Downlights per builders pack

All products must be installed by a licensed electrican. DIY electrical work is illegal and very dangerous.

Change of Mind
All products purchased from MJS Electrical Products & Supplies are backed by a thirty (30) day Peace of Mind Return Policy. All products returned must be in perfect unused condition, with all components, complete with original packaging. We will not allow returns on damaged or incomplete products. Proof of purchase is required. Should the product not be in original condition, please contact us before returning it as this may save you some unnecessary costs.

Damaged / Faulty Goods
If you find that the goods were damaged in transit or were faulty in some manner, please contact us within 24 hours of receiving the goods. We will organise for the return of the goods and arrange a credit towards your next purchase or send a replacement product. Customer will incur the cost of return postage and be credited the purchase price only. We recommend that you return your unwanted items using registered post or trackable courier. We can not be held responsible if returned items are lost in transit.

Warranties
Product warranties are governed by the respective manufacturers and / or suppliers warranty terms and conditions (available on request). We will not be liable to you or any third party for any loss suffered due to product failure. We will process product warranty claims through the respective manufacturers and/or suppliers. All warranties are void if the product is not installed by a licensed electrician.

  • Catalogue Number: TPDL1C2
  • Voltage rating: 240 Vac, 50 Hz
  • Total System Power: 9 W
  • Dimmable: Yes
  • Colour Temperature: 3000K / 4000K / 6000K
  • Lumens: >700 >730 >750
  • CRI:  > 80
  • IP Rating: IP44 (from front)
  • Beam Angle: 90 degrees
  • Lifespan (L70): 50,000 hrs
  • Power Factor: 0.9
  • Operating Temperature: - 10°C to +45°C
  • Operating Humidity: +10% to +95% Non Condensing
  • Run Current @ 230V: 0.041 A
  • Inrush Current: 3.89 A
  • Inrush Current Duration: 20 μs
  • Earth Leakage Current: < 0.1 mA
  • Mounting Depth: 65mm
  • Trim Width: 110 mm
  • Cut-out: 90mm
  • Weight: 0.227 kg
Lamp Life 50000 hrs
Frequency 50Hz
Colour Temperature Tri Colour
Voltage 240V
Colour White
CRI ≥80
Lumens 700lm - 750lm
IP Rating IP44
Wattage 7W
Beam Angle 90°
Lighting Technology LED
Installation Area Indoor / Outdoor
Type LED Downlight
PRODUCT INFO
SKU CLITPDL1C3B6
Model # TPDL1C3B6
Barcode # 3606486373798
Brand Clipsal
SHIPPING INFO
Shipping Weight 1.4350kg
Shipping Width 0.255m
Shipping Height 0.100m
Shipping Length 0.420m
