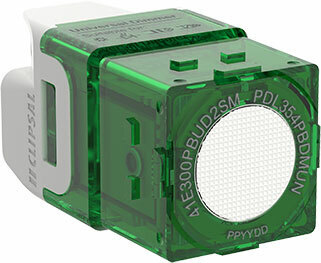

The Clipsal Iconic 41E300PBUD2SM-VW Pushbutton Universal Dimmer is a 300W dimmer mechanism that brings smooth, push-button lighting control to any room. With built-in ControlLink technology, it handles both switching and dimming from multiple locations, so you can set the right light level from wherever it suits.

This is a pushbutton dimmer, not a rotary one. A single tactile button switches and dims the load, while universal auto-detect circuitry selects leading edge or trailing edge dimming to match the connected lighting. It is a 2-wire design that suits dimmable LED, ELV and iron-core LV transformers and 240V halogen or incandescent loads. Installers can adjust the minimum and maximum brightness, configure the warm white LED indicator and use a kick start mode for reliable LED starting, all in a compact mechanism that clips into Clipsal Iconic 40-series plates.

Key Features

• Pushbutton Operation – One integrally switched push button with a tactile feel controls on/off and dimming.
• Universal Dimming – Automatically selects leading or trailing edge mode to suit the connected load.
• ControlLink Multi-Way Control – Switch and dim from extra locations over conventional mains wiring, up to 30m of cable.
• 300W Maximum Load – Handles up to 300W per mechanism, subject to multi-gang derating.
• Low 10W Minimum Load – Suits small LED loads, with a load correction device available if required.
• 2-Wire Installation – A 2-wire design that simplifies installation in many lighting circuits.
• Adjustable Brightness Limits – Minimum and maximum brightness can be set to suit the lamps.
• Kick Start Mode – A configurable mode that helps LED loads start quickly and reliably.
• Configurable LED Indicator – A warm white indicator with selectable behaviour helps locate the switch.
• Built-In Protection – Short circuit, over-current and over-temperature protection.

Specifications

• Model: 41E300PBUD2SM-VW
• Range: Clipsal Iconic
• Control Type: Pushbutton with ControlLink
• Operating Voltage: 220–240V AC, 50Hz
• Maximum Load: 300W
• Minimum Load: 10W
• Dimming Technique: Leading edge / trailing edge, automatically selected
• Compatible Loads: Dimmable LED, ELV and iron-core LV transformers, 240V halogen and incandescent
• Wiring: 2-wire
• Multi-Way Control: ControlLink over conventional wiring, max. 30m cable length
• Protection: Short circuit, over-current and over-temperature
• Terminals: Screw type, suits 3 x 1.5mm² cable, 0.8Nm torque
• LED Indicator: Warm white, configurable
• Derating (per mechanism): 300W for 1–2 per plate, 250W for 3, 200W for 4, 150W for 5, 100W for 6
• Dimensions: 23.5 x 23.5mm, 41mm deep (39mm embedding depth)
• Mounting: Clip-in mechanism for Iconic 40-series plates
• IP Rating: IP20
• Colour: Vivid White push button

Applications

• Dimmable LED downlight circuits in living areas, bedrooms and media rooms
• Multi-way dimming in hallways, stairwells and open-plan spaces
• Mood lighting in restaurants, cafes and hospitality venues
• Controlling larger lighting loads by linking multiple dimmers via ControlLink

Combining universal auto-detect dimming, 300W capacity and ControlLink multi-way control, the Clipsal Iconic 41E300PBUD2SM-VW Pushbutton Universal Dimmer gives you flexible, modern lighting control in a sleek Iconic mechanism. It is an excellent fit for LED upgrades and new builds where push-button dimming from more than one location is wanted.
