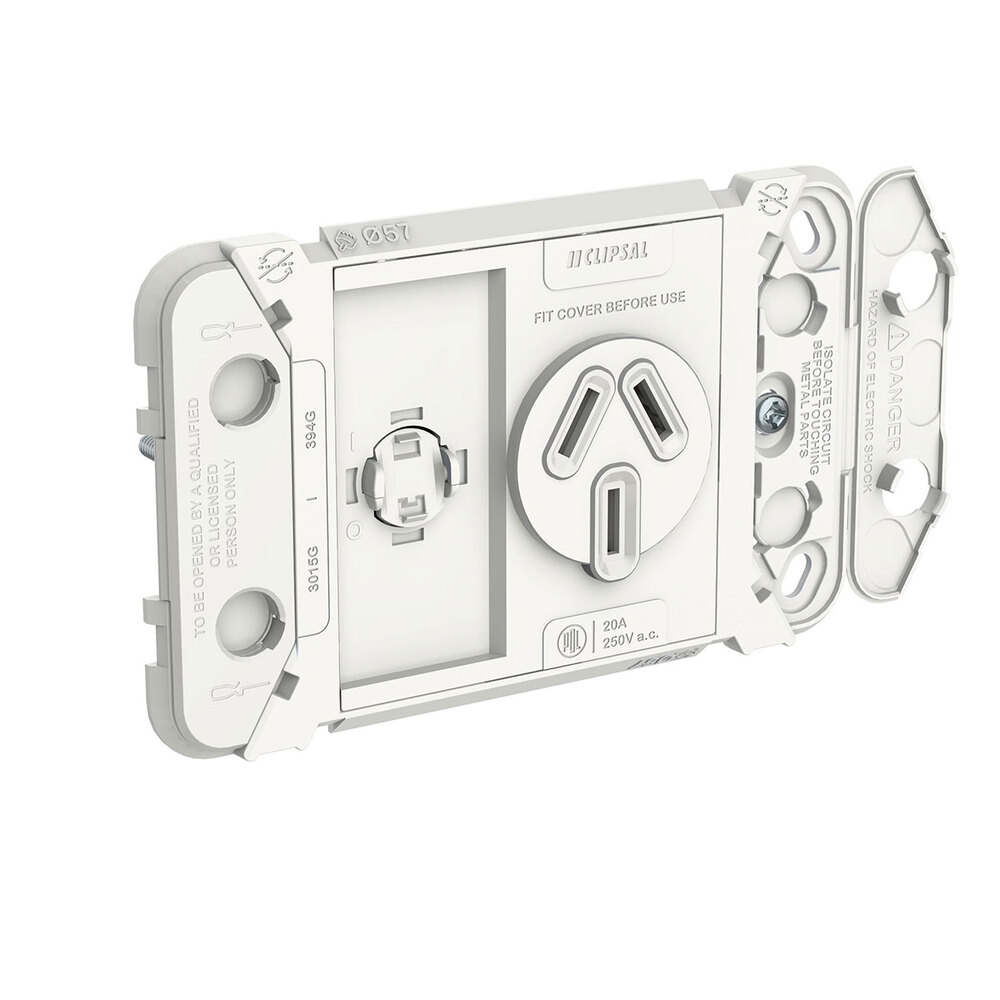

The Clipsal Iconic Single 20A Switched Power Point Grid, Horizontal (3015/20G) is the mechanism with fixing frame for a horizontal Iconic single power point. It provides one 20A switched socket (2P+E) rated 20A at 250V AC, with an electrical durability of 9000 cycles.

Once the grid is installed by a licensed electrician, the Iconic skin clips on and can be changed later across Iconic Styl, Essence and the standard range. Three screw terminals take 1 x 2.5 to 4 x 2.5mm² conductors with a 16mm strip length, and the grid measures 71 x 115 x 26mm with a 23mm embedding depth.

Key Features

  • 20A Switched Socket – One 20A switched outlet.
  • 2P+E Outlet – 20A Australian outlet configuration.
  • 9000 Cycle Durability – Rated electrical durability.
  • Horizontal Mount – Designed for horizontal installation.
  • Clip-On Skins – Change the look without rewiring.
  • Screw Terminals – 3 terminals, 1 x 2.5 to 4 x 2.5mm².
  • Slim Profile – 23mm embedding depth.
  • Screw Fixed – Fixes securely by screws.
  • Iconic Range – Part of the Clipsal Iconic range.

Specifications

  • Model: 3015/20G
  • Range: Clipsal Iconic
  • Type: Single switched socket grid, 20A
  • Outlets: 1
  • Rockers: 1
  • Rated Current: 20A at 250V AC, 50Hz
  • Outlet Configuration: 2P+E
  • Electrical Durability: 9000 cycles
  • Terminals: 3 screw, 1 x 2.5 to 4 x 2.5mm²
  • Embedding Depth: 23mm
  • Orientation: Horizontal
  • Dimensions: 71mm H x 115mm W x 26mm D

Applications

  • 20A appliance and equipment circuits
  • Workshops and garages
  • Commercial plant rooms

Give 20A equipment a dedicated Iconic outlet with the Clipsal 3015/20G single power point grid.

Q. Is a skin included with the Clipsal 3015/20G?
A. No. The 3015/20G is the grid only. Choose an Iconic 20A single power point skin, such as the 3015/20C range, separately.

Q. What is the Clipsal 3015/20G rated?
A. It provides one 20A switched socket (2P+E) rated 20A at 250V AC.

Q. How is the Clipsal 3015/20G mounted?
A. It is designed for horizontal mounting, fixes by screws and needs a 23mm embedding depth.

Q. What cable does the Clipsal 3015/20G take?
A. Its 3 screw terminals take 1 x 2.5 to 4 x 2.5mm² conductors with a 16mm strip length.

All products must be installed by a licensed electrican. DIY electrical work is illegal and very dangerous.
