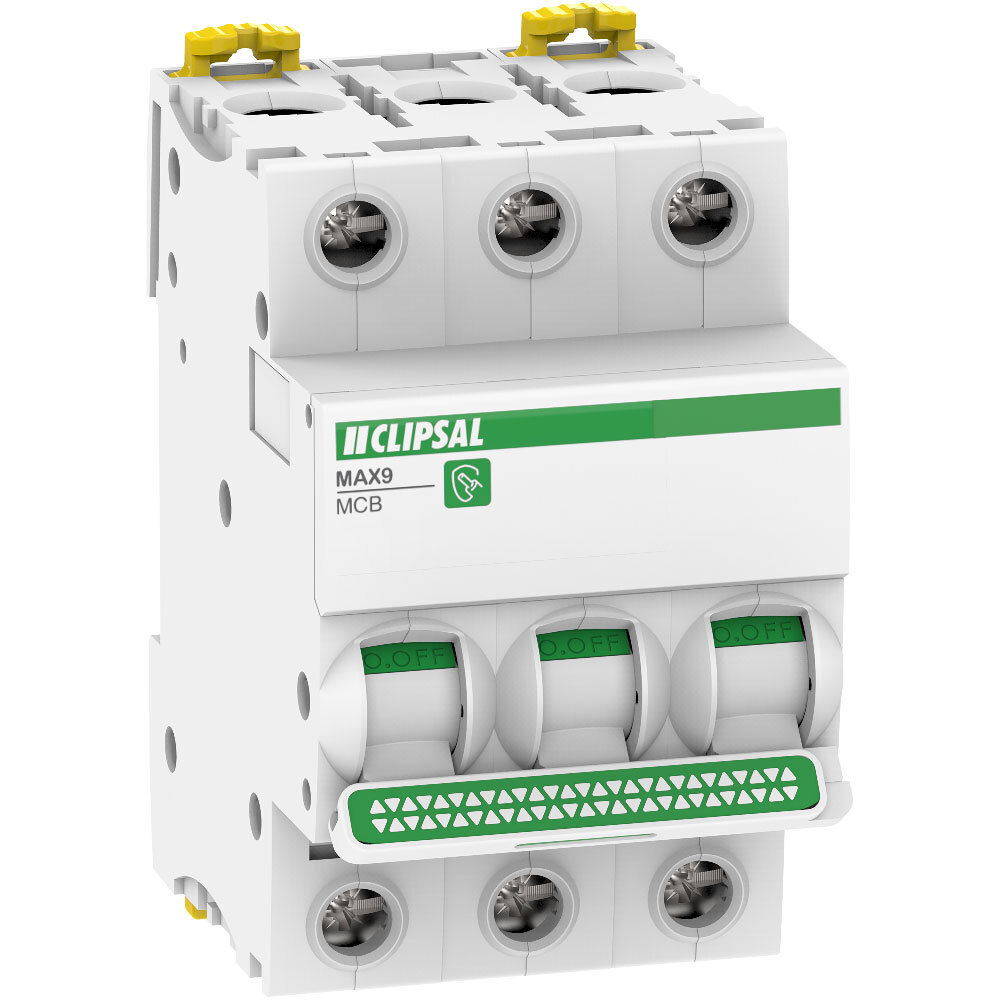

The Clipsal MAX9 MX9MC3 range of 3 Pole Circuit Breakers provides 3P miniature circuit breaker protection with a C curve and a 6kA breaking capacity. It is available in 6A, 10A, 16A, 20A, 25A, 32A, 40A, 50A and 63A ratings, so one range covers a wide spread of three-phase circuits.

Each breaker is rated 415V AC and has a compact 54mm (3 modules) DIN rail body with positive ON/OFF contact indication. The range suits MAX9 pin type busbar and MAXBAR as a main incomer, and protects against overload and short-circuit currents with top or bottom line connection.

Key Features

  • Wide Rating Choice – Available in 6A, 10A, 16A, 20A, 25A, 32A, 40A, 50A and 63A to suit the circuit being protected.
  • 6kA Breaking Capacity – 6000A rated breaking capacity at 415V AC to AS/NZS 60898, with service breaking capacity at 100% of Icn.
  • C Curve Tripping – Magnetic tripping at 5 to 10 times rated current.
  • Protection and Isolation – Protects against overload and short-circuit currents and is suitable for isolation.
  • Compact 54mm Width – Each breaker takes up 3 modules of DIN rail space.
  • Pin Type Busbar Compatible – Suits MAX9 18mm pitch pin type busbar for quick connection.
  • MAXBAR Compatible – Works with MAXBAR when the MCB is used as the main incomer.
  • Top or Bottom Connection – Tunnel terminals take 1–16mm² flexible or 1–25mm² rigid cable on 6–25A ratings and 1–25mm² flexible or 1–35mm² rigid cable on 32–63A ratings.
  • Combination Head Screws – Compatible with multiple types of screwdriver.
  • Double Locking Clip – Makes installation on, or removal from, busbar easier.
  • Positive Contact Indication – ON/OFF indication shows the contact position clearly.
  • Padlockable – Can be locked with a MAX9 locking device.

Specifications

  • Model: MX9MC3
  • Range: Clipsal MAX9
  • Poles: 3P (3 protected poles)
  • Available Ratings: 6A, 10A, 16A, 20A, 25A, 32A, 40A, 50A and 63A
  • Rated Voltage: 415V AC, 50/60Hz
  • Tripping Curve: C (magnetic trip at 5 to 10 × In)
  • Breaking Capacity: 6kA (6000A Icn), Ics 100%
  • Limitation Class: 3
  • Rated Impulse Withstand Voltage: 4kV
  • Terminals: Tunnel type, top or bottom; 6–25A: 1–16mm² flexible or 1–25mm² rigid; 32–63A: 1–25mm² flexible or 1–35mm² rigid
  • Tightening Torque: 2 N.m (6–25A), 3.5 N.m (32–63A)
  • Wire Stripping Length: 14mm
  • Mounting: DIN rail
  • Dimensions: 85 × 54 × 75mm (H × W × D)
  • Width: 3 modules (54mm)
  • Mechanical Durability: 20,000 cycles
  • Contact Indication: Positive ON/OFF indication
  • IP Rating: IP20
  • Colour: White (RAL 9003)

Applications

  • Three-phase final sub-circuits and equipment supplies
  • Main incomer protection in MAXBAR comb busbar boards (higher ratings)
  • Sub-main protection for three-phase sub-boards
  • Commercial and light industrial DIN rail switchboards

From 6A to 63A, the Clipsal MAX9 MX9MC3 range delivers 6kA breaking capacity, C curve tripping and top or bottom connection in a 54mm DIN rail body, a dependable choice for three-phase circuits.

Q. What current ratings are available in the Clipsal MX9MC3 range?
A. The Clipsal MX9MC3 range of 3P C curve MCBs comes in 6A, 10A, 16A, 20A, 25A, 32A, 40A, 50A and 63A: 6A (MX9MC306), 10A (MX9MC310), 16A (MX9MC316), 20A (MX9MC320), 25A (MX9MC325), 32A (MX9MC332), 40A (MX9MC340), 50A (MX9MC350) and 63A (MX9MC363). Choose the variation that matches the circuit being protected.

Q. What breaking capacity and tripping curve does the Clipsal MX9MC3 range have?
A. Every breaker in the MX9MC3 range has a 6kA (6000A) breaking capacity at 415V AC and a C curve, tripping magnetically at 5 to 10 times rated current. Service breaking capacity is 100% of Icn.

Q. What cable sizes do the Clipsal MX9MC3 range terminals take?
A. All ratings use tunnel terminals for top or bottom connection with a 14mm strip length. The 6–25A ratings take 1–16mm² flexible or 1–25mm² rigid cable at 2 N.m, while the 32–63A ratings take 1–25mm² flexible or 1–35mm² rigid cable at 3.5 N.m.

Q. Can the Clipsal MX9MC3 range be used on a MAX9 PRO chassis?
A. No. Clipsal lists the MX9MC3 range as DIN rail mounted MCBs. They suit MAX9 18mm pitch pin type busbar and MAXBAR as a main incomer. For the MAX9 PRO phase and neutral chassis, Clipsal offers the MAX9 phase neutral MCBs (MX9MN range, rated 6A to 40A).

Q. What is the difference between the Clipsal MX9MC3 and MX9MC1 ranges?
A. The MX9MC3 range is 3P, rated 415V AC and 54mm wide, while the MX9MC1 range is 1P, rated 240V AC and 18mm wide. Both are 6kA, C curve MAX9 MCBs; the 1P range runs from 2A to 63A and the 3P range from 6A to 63A.
