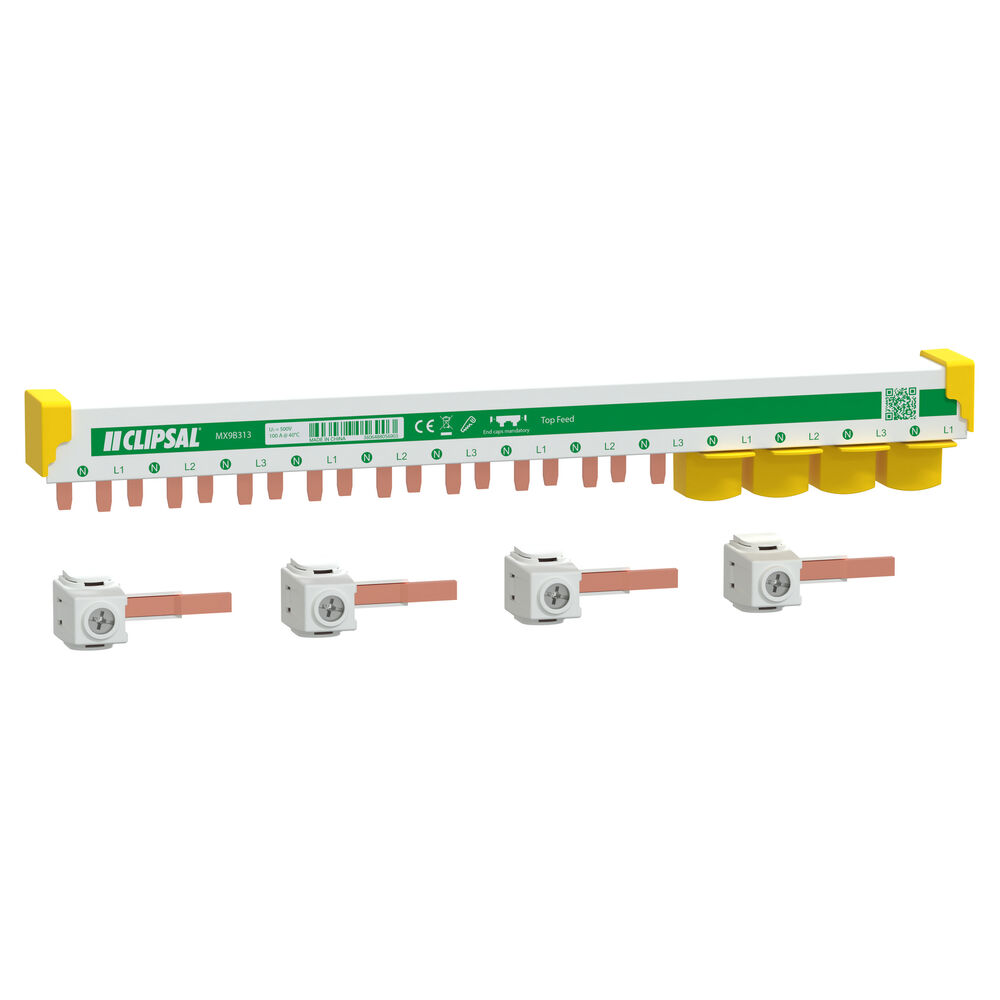

The Clipsal MAX9 MX9B313 3P+N 13 Module Busbar is designed to help electricians achieve a faster, cleaner and more professional MAX9 switchboard installation. Rated at 100A, this top feed MAXBAR is configured for 3 phase + neutral circuit protection layouts across 13 modules, making it a practical choice for compatible three phase MAX9 boards.

Key Features

  • 3P+N Busbar Configuration: Designed for three phase and neutral MAX9 circuit protection layouts, helping distribute supply neatly across compatible devices.
  • 13 Module Capacity: Suits 13 module MAX9 switchboard rows, making it ideal for compact three phase board layouts.
  • 100A Rated Current: Built to support dependable electrical distribution in compatible Clipsal MAX9 installations.
  • Top Feed MAXBAR Design: Designed as a top feed comb busbar, helping create a clean and organised wiring arrangement from the incoming supply.
  • Supplied with Accessories: Supplied with accessories to help support a neat and complete busbar installation.
  • Cleaner Switchboard Wiring: Helps reduce individual cable links between devices, creating a tidier and easier-to-follow switchboard layout.
  • Faster Installation: Saves time during board fit-off by reducing repetitive cutting, stripping and terminating of link cables.
  • Compatible with Clipsal MAX9 Devices: Designed for use with compatible Clipsal MAX9 switchboards and circuit protection devices.
  • Professional MAX9 System Finish: Helps deliver a consistent installation when used with Clipsal MAX9 enclosures, RCBOs and protection accessories.
  • Ideal for Three Phase Applications: Suitable for electricians completing three phase residential, commercial and light industrial distribution boards.

Specifications

  • Model: MX9B313
  • Brand: Clipsal by Schneider Electric
  • Range: MAX9
  • Product Type: MAXBAR / busbar connection accessory
  • Busbar Type: Top feed comb busbar
  • Poles Configuration: 3P+N
  • Number of Modules: 13 modules
  • Rated Current: 100A
  • Compatible System: Clipsal MAX9 switchboards and compatible MAX9 circuit protection devices

Applications

  • Clipsal MAX9 three phase switchboard installations
  • Residential three phase switchboards
  • Commercial distribution boards
  • Light industrial distribution boards
  • Three phase circuit protection layouts
  • RCBO feeding applications
  • Switchboard upgrades
  • New electrical installations
  • Renovation and replacement work
  • Cleaner switchboard wiring layouts

The Clipsal MAX9 MX9B313 3P+N 13 Module Busbar is a practical accessory for electricians wanting a faster and more organised MAX9 three phase switchboard installation. With its 13 module layout, 100A rating, top feed design and supplied accessories, it is a strong choice for compatible residential, commercial and light industrial circuit protection applications.

Q. What is the Clipsal MX9B313 used for?
A. The MX9B313 is used to feed compatible Clipsal MAX9 circuit protection devices in a 3P+N switchboard layout, helping reduce individual wiring links and improve board presentation.

Q. How many modules does the MX9B313 suit?
A. The MX9B313 is designed for 13 modules, making it suitable for compatible 13 module MAX9 switchboard rows.

Q. What current rating is the MX9B313?
A. The MX9B313 is rated at 100A.

Q. Is the MX9B313 for single phase or three phase installations?
A. The MX9B313 is a 3P+N busbar, making it suitable for compatible three phase and neutral MAX9 circuit protection layouts.

Q. What is the difference between MX9B313 and MX9B313N?
A. The MX9B313 is the 3P+N 13 module busbar supplied with accessories. The MX9B313N version includes an additional neutral terminal block / N block and accessories.
