Clipsal MAX9 PRO DB Kit with 3 Phase 15 Way Comb Busbar
suits MAX9 PRO Distribution Boards
SKU: CLMX9DBKCB
Low Stock
RRP $295.00
$132.00
55% OFF
$120.00 ex GST
Low Stock
Buy Now, Pay Later with
24 Hour Dispatch
On All Orders
Australian Company
Owned & Operated
20+ Years
Industry Experience
Easy Returns
30 Days Peace Of Mind
The Clipsal MAX9 PRO MX9DBKCB Distribution Board Kit is a purpose-built solution designed to streamline three-phase power distribution within MAX9 PRO chassis installations. This kit features a 15-way, 3-phase pin-type comb busbar specifically engineered to support direct connection of 50–63A MCBs to the bottom DIN rail of the chassis—enabling safe, efficient, and standards-compliant load-side distribution in commercial and light industrial switchboards.
It comes complete with neutral and phase link cables and a neutral link terminal, offering a preconfigured setup that eliminates the need for time-consuming wiring while delivering a robust and tidy power distribution system.
Key Features
- Supports 50–63A MCBs – Designed for bottom DIN rail installations where higher current protection is required
- 3-Phase 15-Way Comb Busbar – Pin-type busbar allows fast, clean connection of triple pole devices
- Direct Chassis Integration – Connects directly to the bottom of the chassis to distribute power without additional cabling

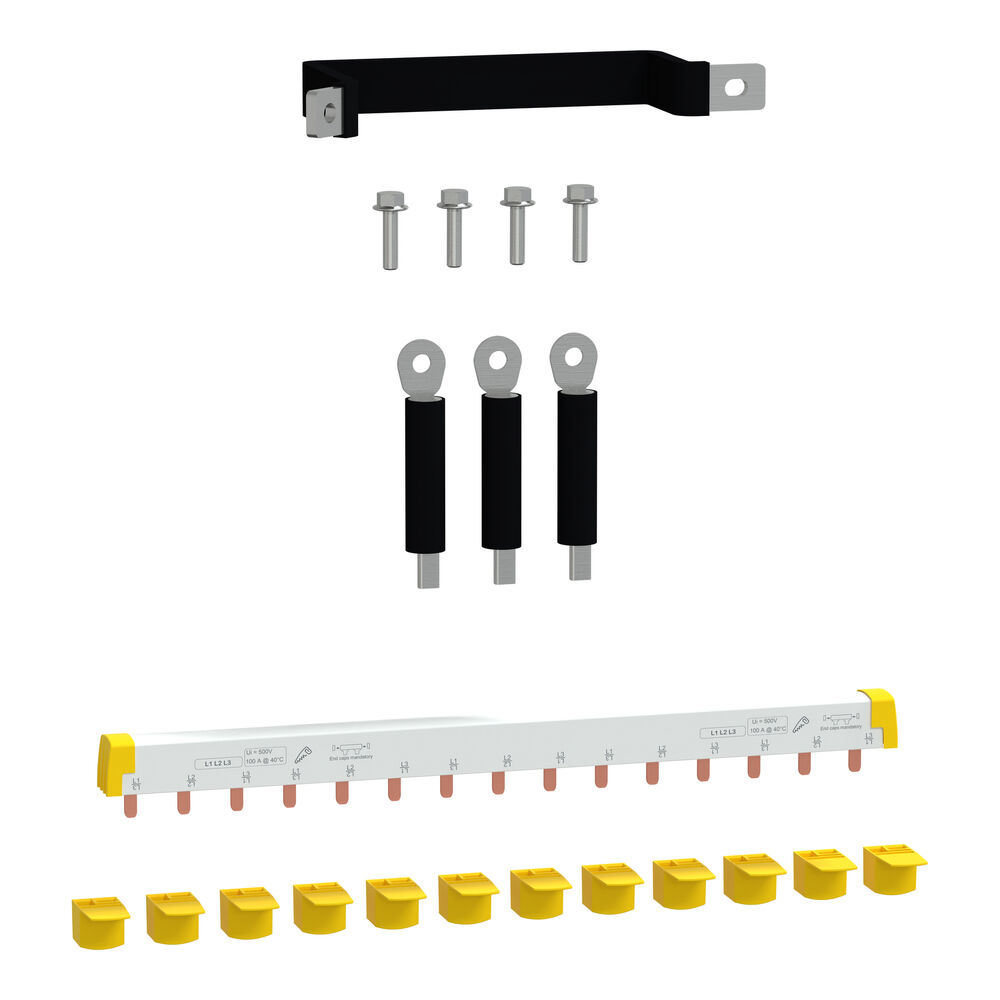

- Complete Kit – Includes neutral link, 3 × phase connection cables with lugs, and 12 × tooth covers
- Cuttable Busbar – Can be trimmed to suit specific board layouts
- Insulated and Safe – Touch-safe components designed to meet Australian safety standards
- AS/NZS 61439.3 Compliant – Engineered to meet local regulatory requirements for switchboard assemblies
Specifications
- Model: MX9DBKCB
- Series: Clipsal MAX9 PRO
- Configuration: 3P × 15 Ways (45 total DIN slots at 18mm pitch)
- Rated Operational Current: 100A
- Rated Voltage: 415V AC
- Insulation Voltage (Ui): 500V
- Impulse Withstand Voltage (Uimp): 4kV
- Mounting Position: Horizontal (Bottom DIN rail)
- Device Compatibility: 50A–63A MCBs, MAX9 PRO series
- Included Accessories:
- 1 × 15-way 3-phase comb busbar
- 1 × neutral terminal link
- 3 × phase connection cables with lugs
- 12 × safety tooth covers
- Colour: White (RAL 9003)
- Material: Insulated components with touch-safe design
- Standards Compliance: AS/NZS 61439.1, AS/NZS 61439.3
Applications
- Load-side distribution for 3-phase switchboards
- Commercial, retail, or light industrial main and sub-boards
- Pre-configured setups requiring fast connection of 50–63A MCBs
- Upgrades to existing Clipsal MAX9 PRO installations
- Projects demanding safe, standards-compliant, time-saving wiring solutions
The Clipsal MAX9 PRO MX9DBKCB Kit offers a fast, professional-grade solution for distributing three-phase power to high-current MCBs. With its pre-configured design and compliance with Australian standards, it's the perfect fit for efficient and safe installations in any modern switchboard.
Q. Can I use this kit with single-pole breakers?
A. No, this comb busbar is designed specifically for 3P MCBs rated at 50–63A and is intended for use on the bottom DIN rail only.
Q. How does the kit connect to the chassis?
A. The phase connection cables and neutral link are designed to wire directly from the chassis terminals to the comb busbar on the bottom DIN rail.
Q. Is the comb busbar cuttable?
A. Yes, the comb busbar can be trimmed to suit shorter installations where fewer ways are required.
Q. Is this kit compatible with all MAX9 PRO boards?
A. It is designed specifically for use within the Clipsal MAX9 PRO range and integrates with their distribution chassis and modules.
All products must be installed by a licensed electrican. DIY electrical work is illegal and very dangerous.
Change of Mind
All products purchased from MJS Electrical Products & Supplies are backed by a thirty (30) day Peace of Mind Return Policy. All products returned must be in perfect unused condition, with all components, complete with original packaging. We will not allow returns on damaged or incomplete products. Proof of purchase is required. Should the product not be in original condition, please contact us before returning it as this may save you some unnecessary costs.
Damaged / Faulty Goods
If you find that the goods were damaged in transit or were faulty in some manner, please contact us within 24 hours of receiving the goods. We will organise for the return of the goods and arrange a credit towards your next purchase or send a replacement product. Customer will incur the cost of return postage and be credited the purchase price only. We recommend that you return your unwanted items using registered post or trackable courier. We can not be held responsible if returned items are lost in transit.
Warranties
Product warranties are governed by the respective manufacturers and / or suppliers warranty terms and conditions (available on request). We will not be liable to you or any third party for any loss suffered due to product failure. We will process product warranty claims through the respective manufacturers and/or suppliers. All warranties are void if the product is not installed by a licensed electrician.
| Range | Clipsal MAX9 PRO |
| PRODUCT INFO | |
| SKU | CLMX9DBKCB |
| Model # | MX9DBKCB |
| Barcode # | 3606487909491 |
| Brand | Clipsal |
| SHIPPING INFO | |
| Shipping Weight | 1.0000kg |
| Shipping Width | 0.082m |
| Shipping Height | 0.042m |
| Shipping Length | 0.215m |
