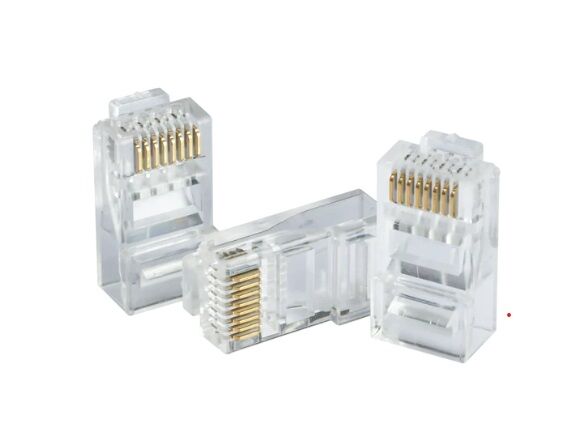

        The Dahua DH-PFM976-631-PT is a high-performance, unshielded CAT6 RJ45 pass-through connector designed for reliable and efficient network terminations. Ideal for both professional and DIY installations, this connector simplifies the process of creating custom-length Ethernet cables, ensuring optimal signal integrity and durability.

        Key Features:

        • Pass-Through Design: Allows conductors to pass through the connector, making it easier to verify wire alignment before crimping, reducing errors and installation time.
        • High-Quality Materials: Constructed with a combination of durable PC plastic and trident brass contacts, ensuring longevity and consistent performance.
        • 15μ" Gold Plating: Each contact is coated with 15 microinches of gold plating, enhancing conductivity and resistance to corrosion.
        • CAT6 Compatibility: Supports high-speed data transmission, suitable for Gigabit Ethernet applications.
        • 750 Insertion Cycles: Engineered for repeated use, offering up to 750 mating cycles without compromising performance.
        • UL94V-2 Flammability Rating: Meets safety standards for flammability, ensuring safe operation in various environments.

        Specifications:

        • Model: DH-PFM976-631-PT
        • Material: PC + Brass
        • Gold Plating Thickness: 15μ"
        • Operating Voltage: 150 VAC RMS
        • Operating Current: 1.5 AMP
        • Contact Resistance: ≤ 20 mΩ
        • Insulation Resistance: ≥ 1000 MΩ @ 500 VDC
        • Withstand Voltage: 1000 VDC/VAC PEAK @ 0.5 mA for 1 minute
        • Retention Strength: 50 N for 60 seconds ± 5 seconds
        • Insertion Force: ≤ 30 N
        • Operating Temperature: –25°C to +55°C
        • Storage Temperature: –10°C to +40°C
        • Storage Humidity: < 80%
        • Storage Time: 12 months
        • Cable Compatibility: 21–23 AWG single-strand cables
        • Insulated Cable Diameter: 1.09 mm–1.20 mm
        • Outer Sheath Diameter: ≤ 6.4 mm

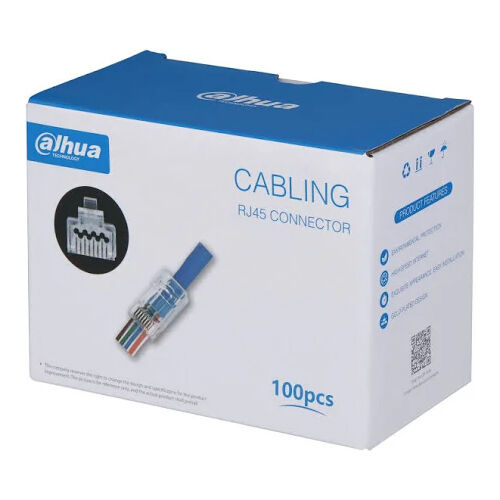

        • Packaging: 100 pcs per carton

        Applications:

        • Custom Ethernet Cable Assembly: Ideal for creating custom-length CAT6 Ethernet cables for networking installations.
        • Data Centers: Suitable for high-density network environments requiring reliable and efficient cabling solutions.
        • Office and Home Networks: Perfect for setting up or upgrading network connections in commercial or residential settings.
        • Surveillance Systems: Ensures stable connections for IP cameras and other security devices.

        For professionals and enthusiasts seeking reliable and efficient network terminations, the Dahua DH-PFM976-631-PT pass-through RJ45 connectors offer a combination of quality materials, ease of use, and performance, making them a valuable addition to any networking toolkit.

        Q: Can these connectors be used with stranded cables?
        A: These connectors are specifically designed for single-strand (solid) CAT6 cables ranging from 21 to 23 AWG.

        Q: Do I need a special crimping tool for these pass-through connectors?
        A: Yes, it's recommended to use a pass-through RJ45 crimping tool to ensure proper trimming and crimping of the extended wires.

        Q: Are these connectors shielded?
        A: No, the DH-PFM976-631-PT connectors are unshielded, suitable for standard networking environments without high electromagnetic interference.

        Q: What is the benefit of the 15μ" gold plating?
        A: The 15 microinches of gold plating enhance the connector's conductivity and provide better resistance to corrosion, ensuring long-term performance,

        All products must be installed by a licensed electrican. DIY electrical work is illegal and very dangerous.

        Change of Mind
        All products purchased from MJS Electrical Products & Supplies are backed by a thirty (30) day Peace of Mind Return Policy. All products returned must be in perfect unused condition, with all components, complete with original packaging. We will not allow returns on damaged or incomplete products. Proof of purchase is required. Should the product not be in original condition, please contact us before returning it as this may save you some unnecessary costs.

        Damaged / Faulty Goods
        If you find that the goods were damaged in transit or were faulty in some manner, please contact us within 24 hours of receiving the goods. We will organise for the return of the goods and arrange a credit towards your next purchase or send a replacement product. Customer will incur the cost of return postage and be credited the purchase price only. We recommend that you return your unwanted items using registered post or trackable courier. We can not be held responsible if returned items are lost in transit.

        Warranties
        Product warranties are governed by the respective manufacturers and / or suppliers warranty terms and conditions (available on request). We will not be liable to you or any third party for any loss suffered due to product failure. We will process product warranty claims through the respective manufacturers and/or suppliers. All warranties are void if the product is not installed by a licensed electrician.

        Type RJ45 Connector
        PRODUCT INFO
        SKU DH-PFM976-631-PT
        Model # DH-PFM976-631-PT
        Barcode # 6923172588074
        Brand Dahua
        SHIPPING INFO
        Shipping Weight 0.1800kg
        Shipping Width 0.120m
        Shipping Height 0.065m
        Shipping Length 0.090m
