The Aquarius Rubber VWEC1B Black Rubber Flashing Kit is a durable, lead-free roof flashing solution designed to create a secure weatherproof seal around pipe and service penetrations through tiled roofs. Its flexible construction makes it particularly well suited to TV antenna mounts, ventilation pipes, electrical conduits and solar installations, where a dependable seal against water ingress is essential.

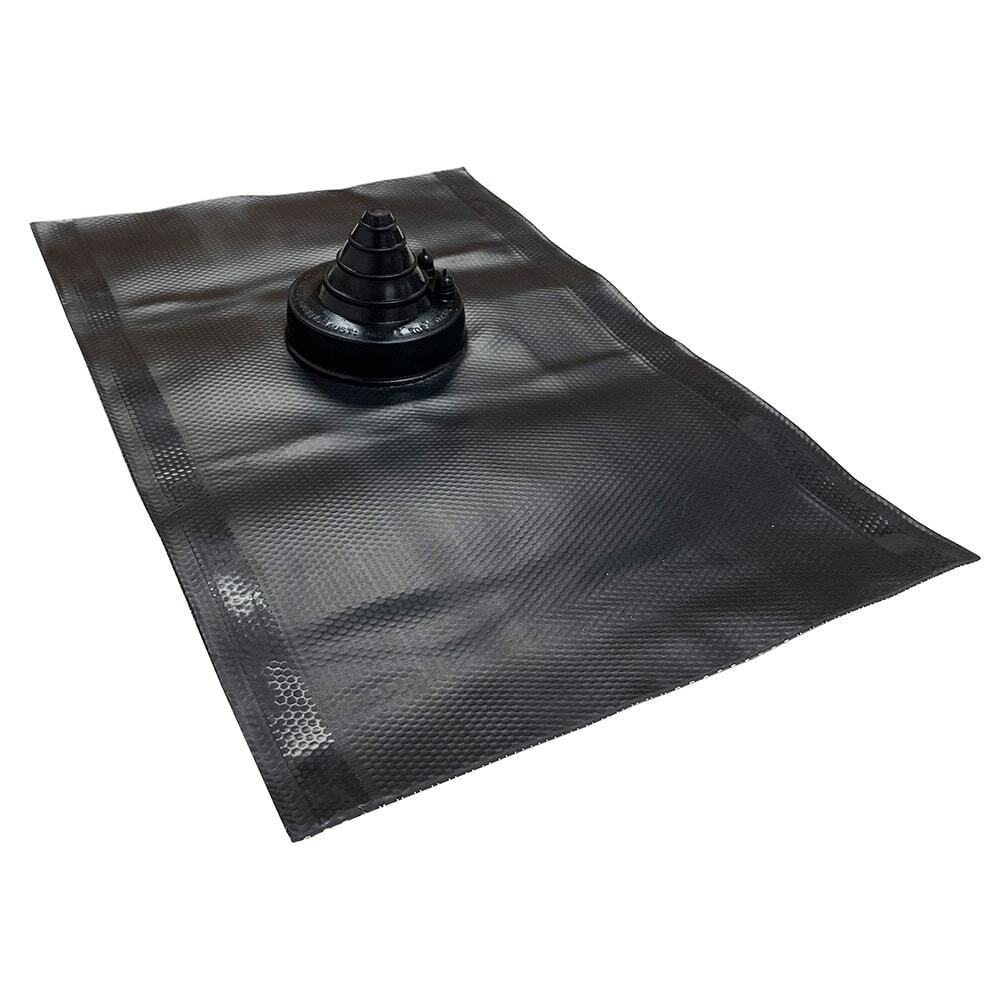

Designed and manufactured in Australia for demanding local conditions, the VWEC1B combines a flexible black EPDM cone with a highly malleable 450 × 280mm base. The material offers excellent resistance to UV exposure, ozone, temperature fluctuations and weathering, helping reduce deterioration, cracking and potential roof leaks over time.

Key Features

  • Designed for Tiled Roofs – Flexible base can be formed to suit a variety of tile profiles for a neat, secure installation
  • 5–40mm Pipe Range – Suitable for a broad selection of smaller roof penetrations, including antenna poles and conduits
  • UV & Ozone Resistant – EPDM construction is engineered to withstand prolonged exposure to demanding outdoor conditions
  • Lead-Free Construction – Provides a lightweight, non-toxic and non-corrosive alternative to traditional lead flashing
  • Drinking Water Safe – Suitable for properties where roof runoff is collected into rainwater tanks
  • BAL Certified – Suitable for use in applicable bushfire-prone installations, subject to the requirements of the roof system
  • Paintable Surface – Can be painted using acrylic house paint to better complement the surrounding roof colour
  • Foxtel Approved – Approved under Foxtel reference F31196, making it particularly suitable for antenna and satellite installations
  • Australian Made & Owned – Developed for Australian roofing and environmental conditions
  • Long-Term Protection – Designed to provide a durable seal around roof penetrations and help minimise the risk of water ingress

Specifications

  • Model: VWEC1B
  • Product Type: Flexible tiled roof flashing kit
  • Colour: Black
  • Cone Material: EPDM
  • Pipe Size: 5–40mm
  • Base Dimensions: 450mm × 280mm
  • Installation: Tiled roof penetrations
  • Temperature Range: -40°C to +115°C
  • UV Resistance: Tested to ASTM D7238

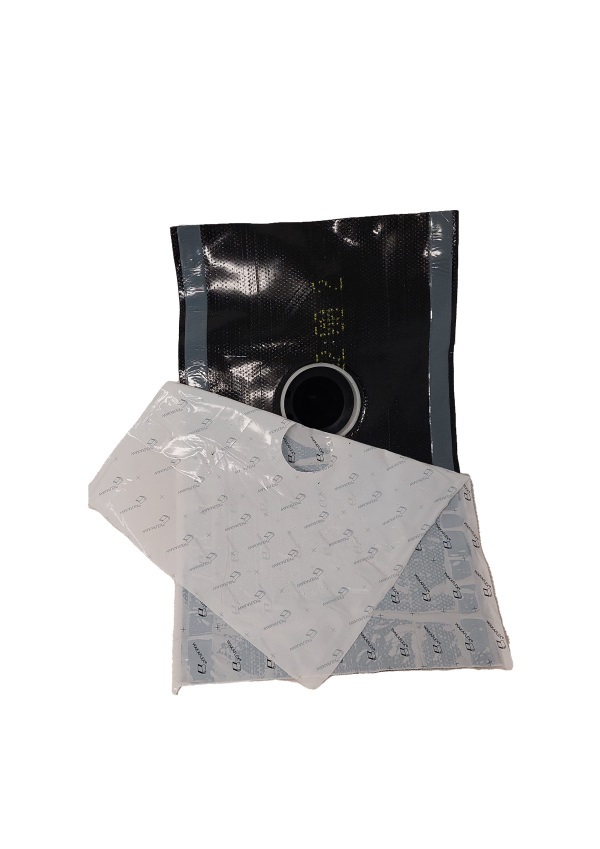

  • Adhesive: Strip adhesive
  • Lead-Free: Yes
  • Drinking Water Safe: Yes
  • BAL Rating: BAL 12.5 rated EPDM cone
  • Foxtel Approval: F31196
  • Country of Manufacture: Australia

Applications

  • TV antenna and satellite dish pole penetrations

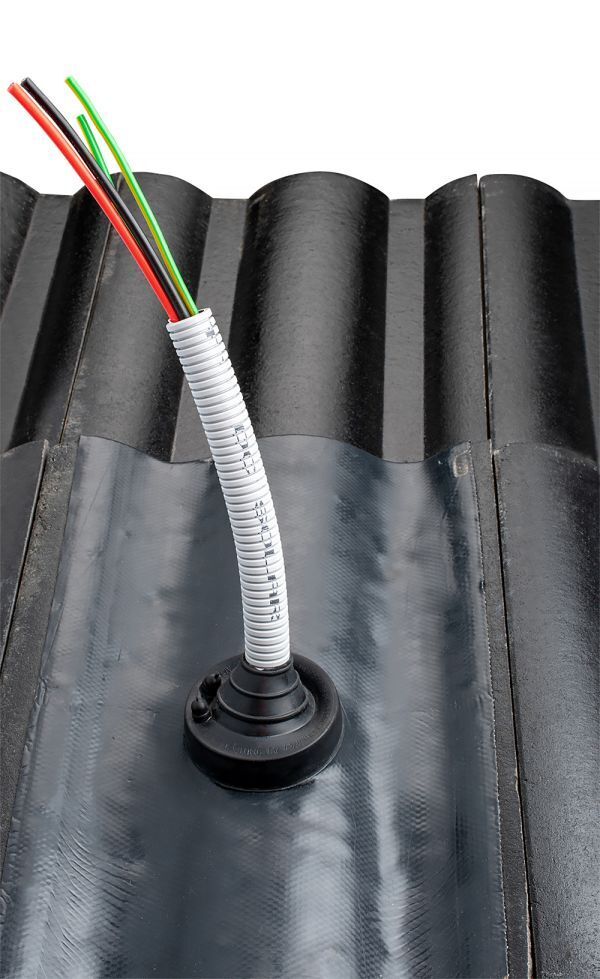

  • Electrical conduit passing through tiled roofs
  • Solar installation roof penetrations
  • Plumbing and ventilation pipes
  • Communications and data installations
  • Residential and commercial tiled roofing applications

The Aquarius Rubber VWEC1B Black Flashing Kit provides a professional, long-lasting way to weatherproof tiled-roof penetrations without traditional lead flashing. With its flexible EPDM construction, UV and ozone resistance, BAL certification and Australian-made quality, it is an excellent choice for electricians, antenna installers, solar installers and other trades requiring a dependable roof seal.

Q. What size pipe or pole will the VWEC1B accommodate?
A. The flashing is designed for penetrations ranging from approximately 5mm to 40mm, making it suitable for antenna poles, conduits and other smaller roof penetrations.

Q. Is the VWEC1B suitable for tiled roofs?
A. Yes. It is specifically designed as a flexible tiled-roof flashing, with a malleable 450 × 280mm base that can be shaped around the roof profile.

Q. Can the black flashing be painted to match the roof?
A. Yes. The flashing can be painted with acrylic house paint, allowing it to blend more closely with the existing roof colour.

Q. Can it be used on homes that collect rainwater from the roof?
A. Yes. The flashing is lead-free, non-toxic and drinking-water safe, making it suitable for installations where roof runoff is collected into a rainwater tank.
