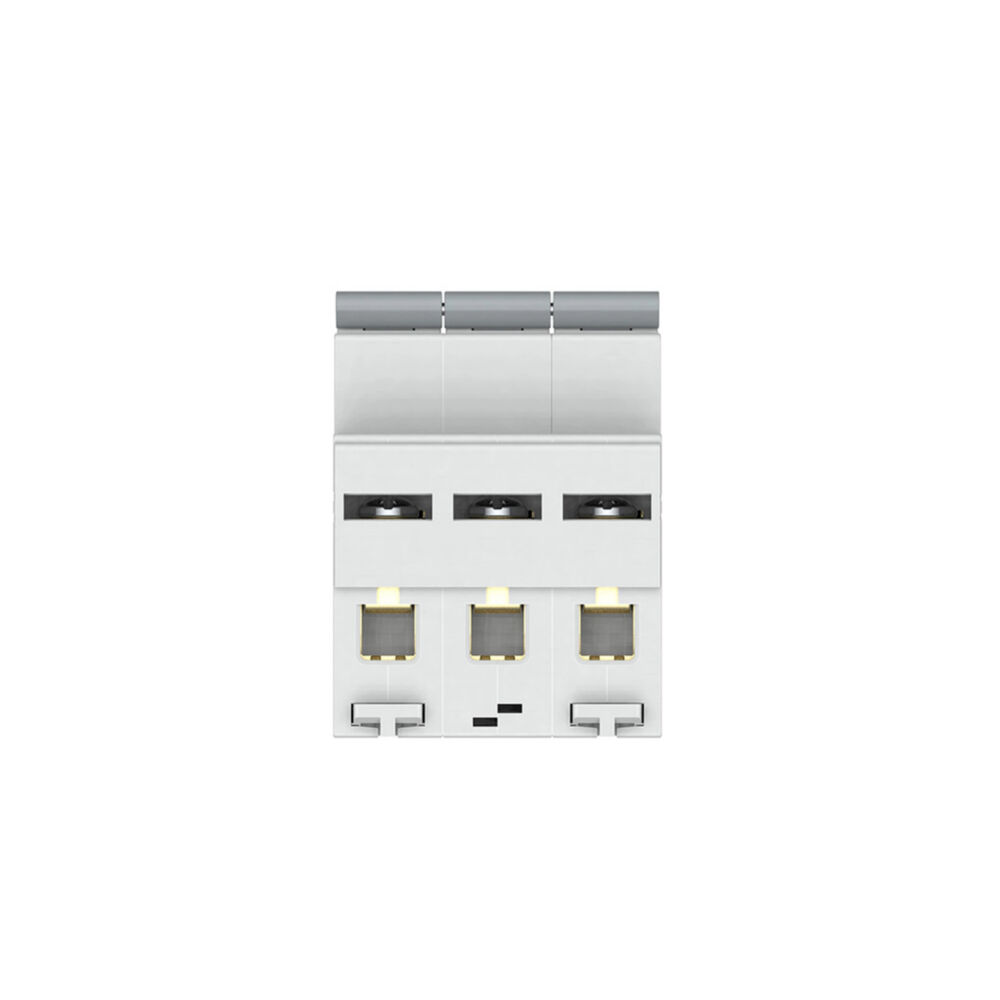

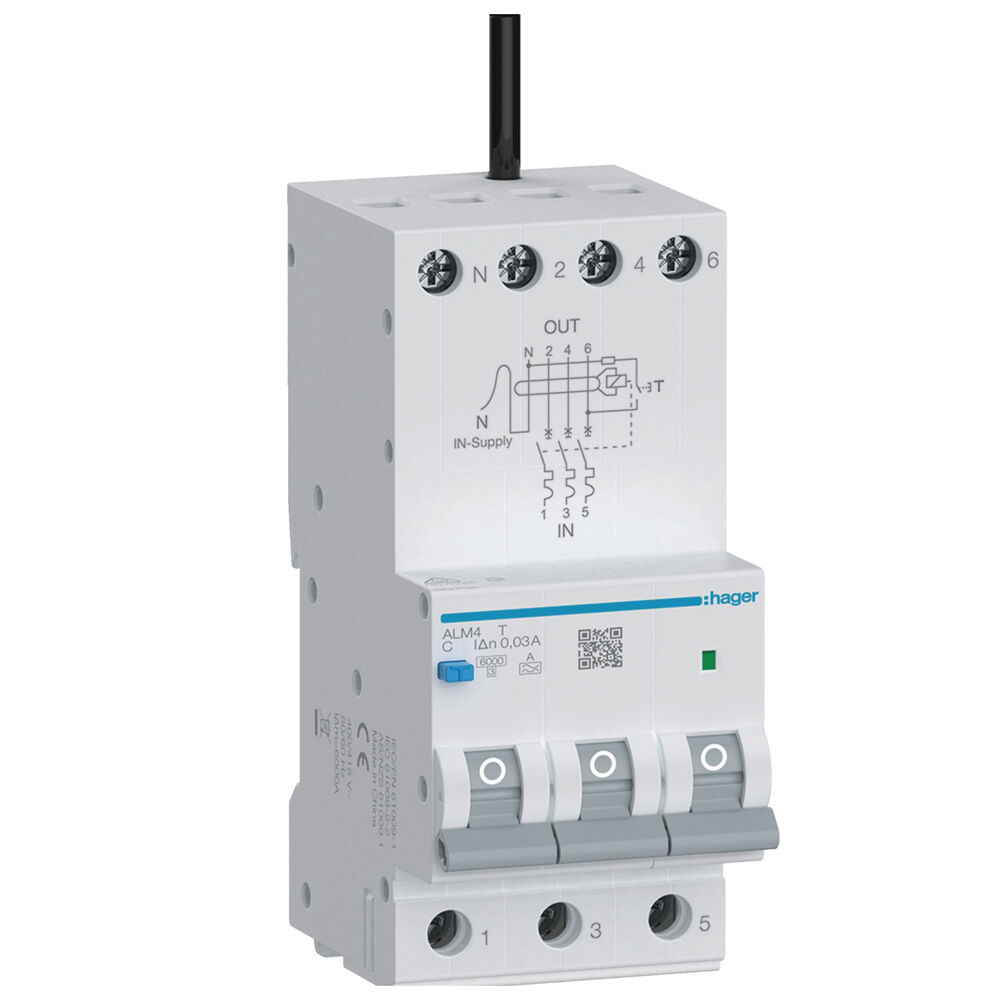

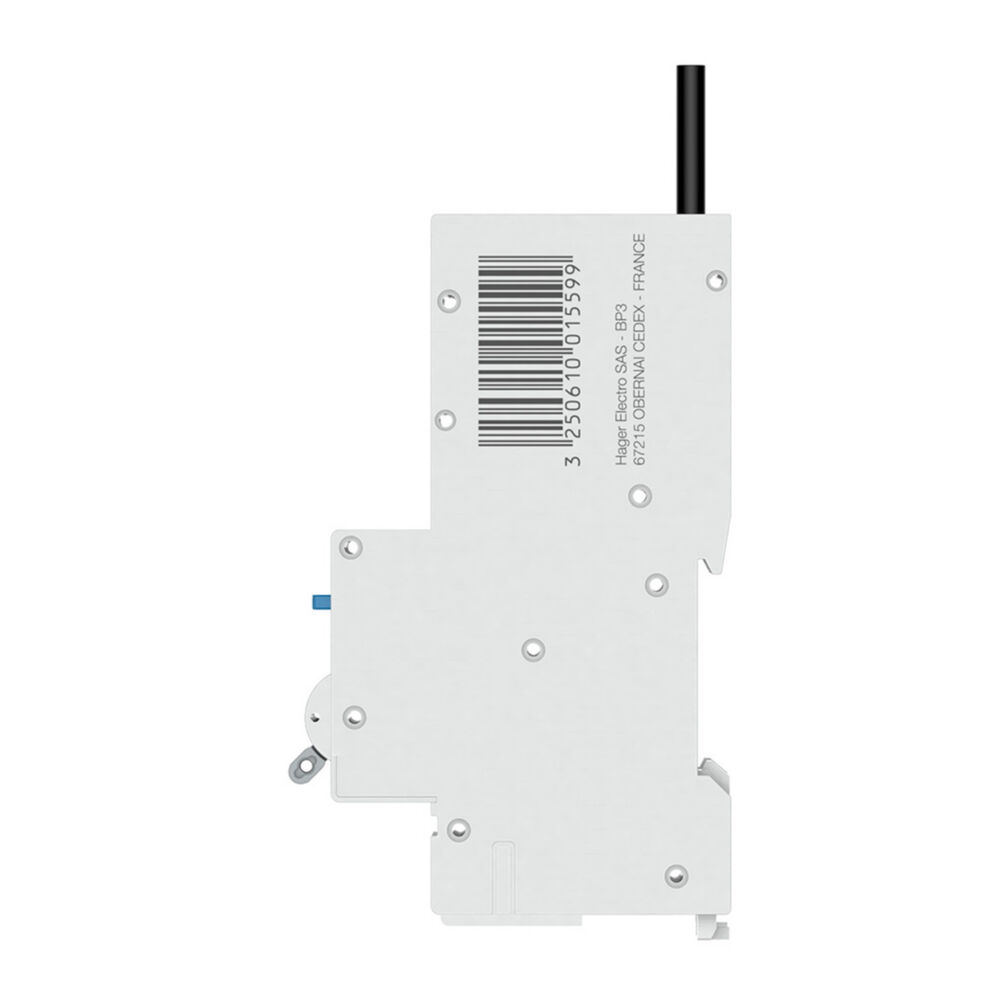

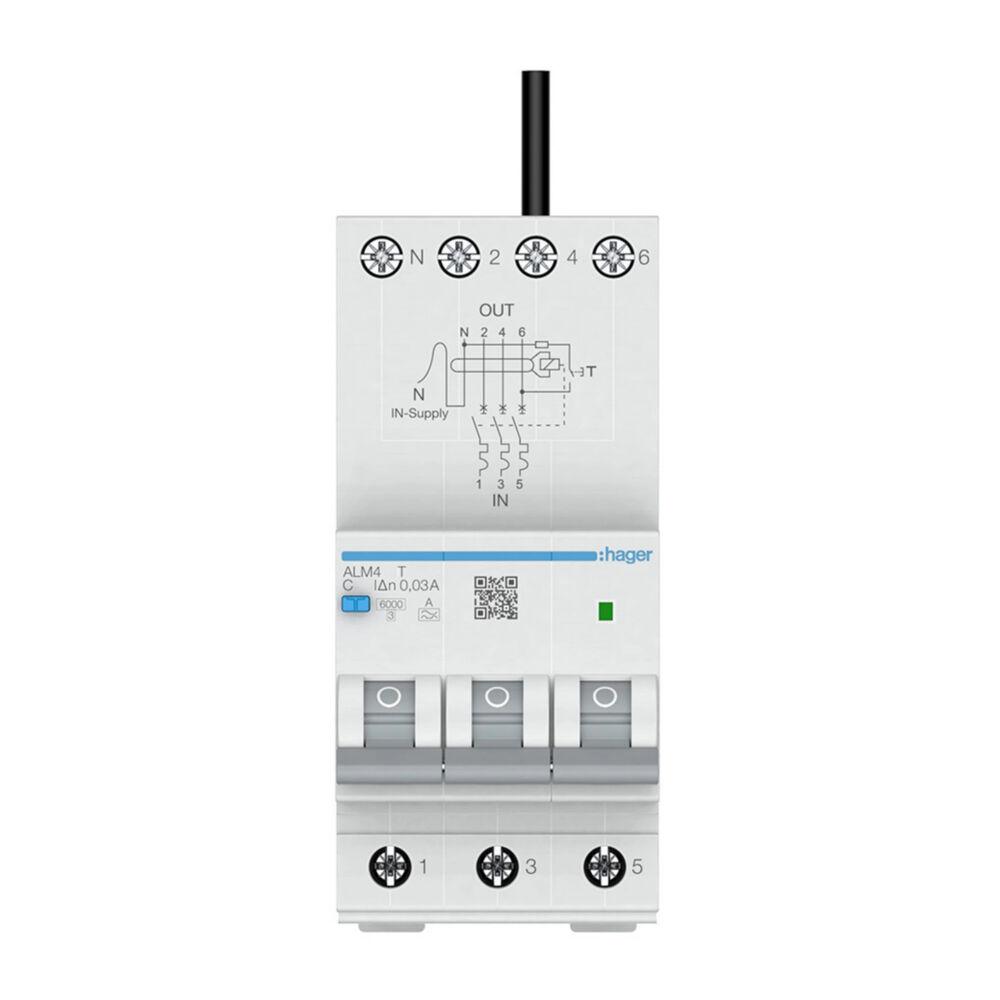

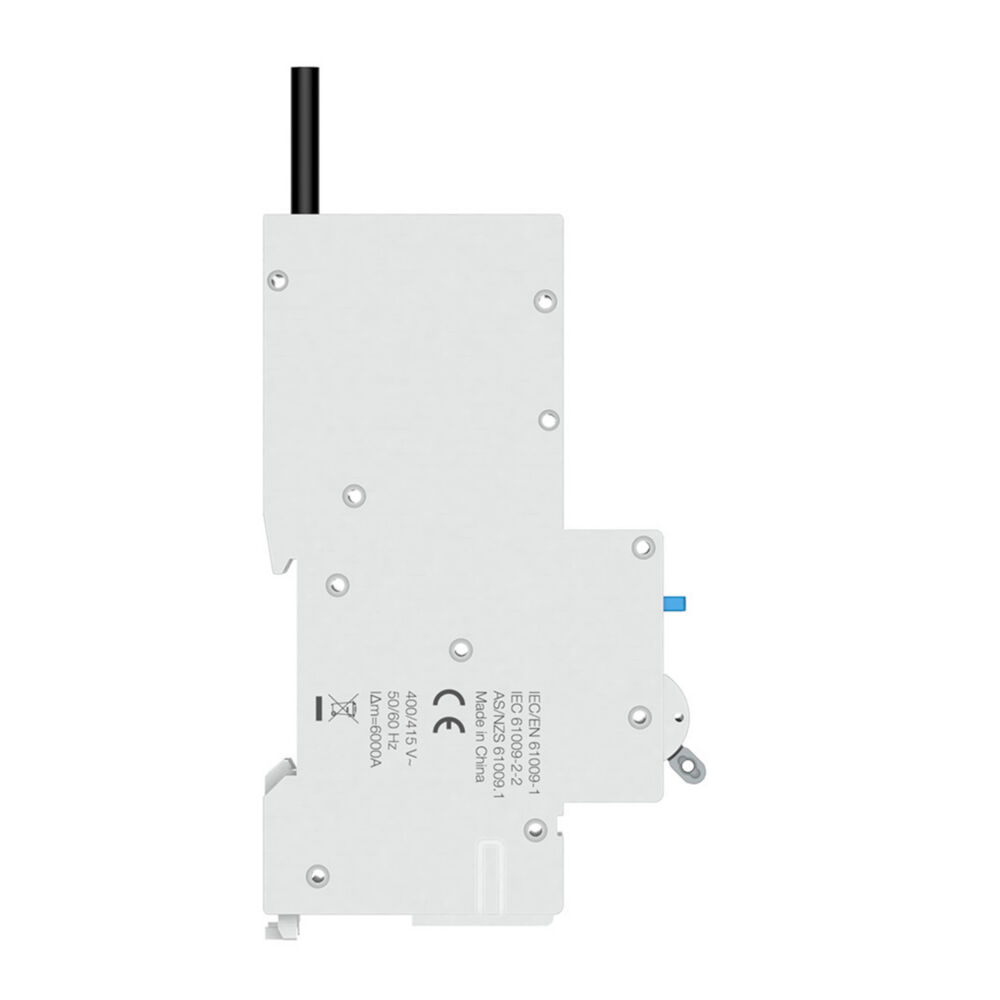

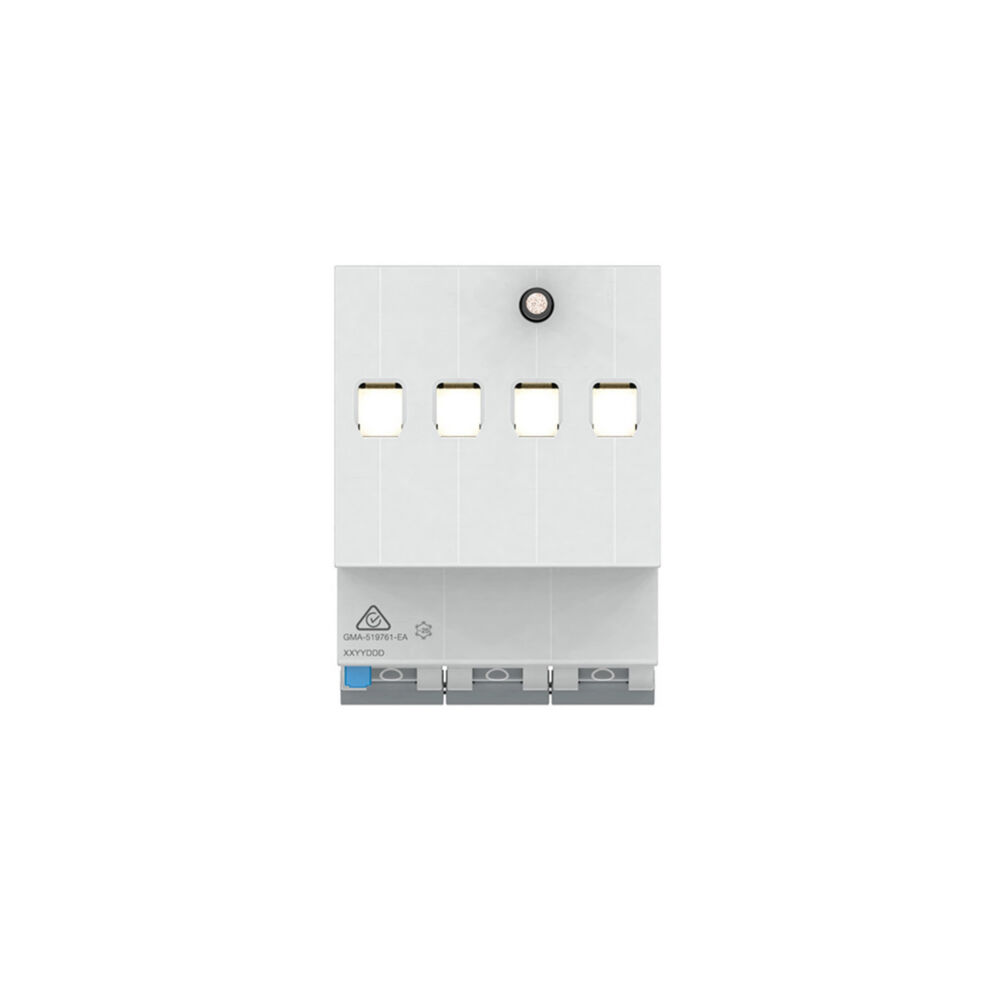

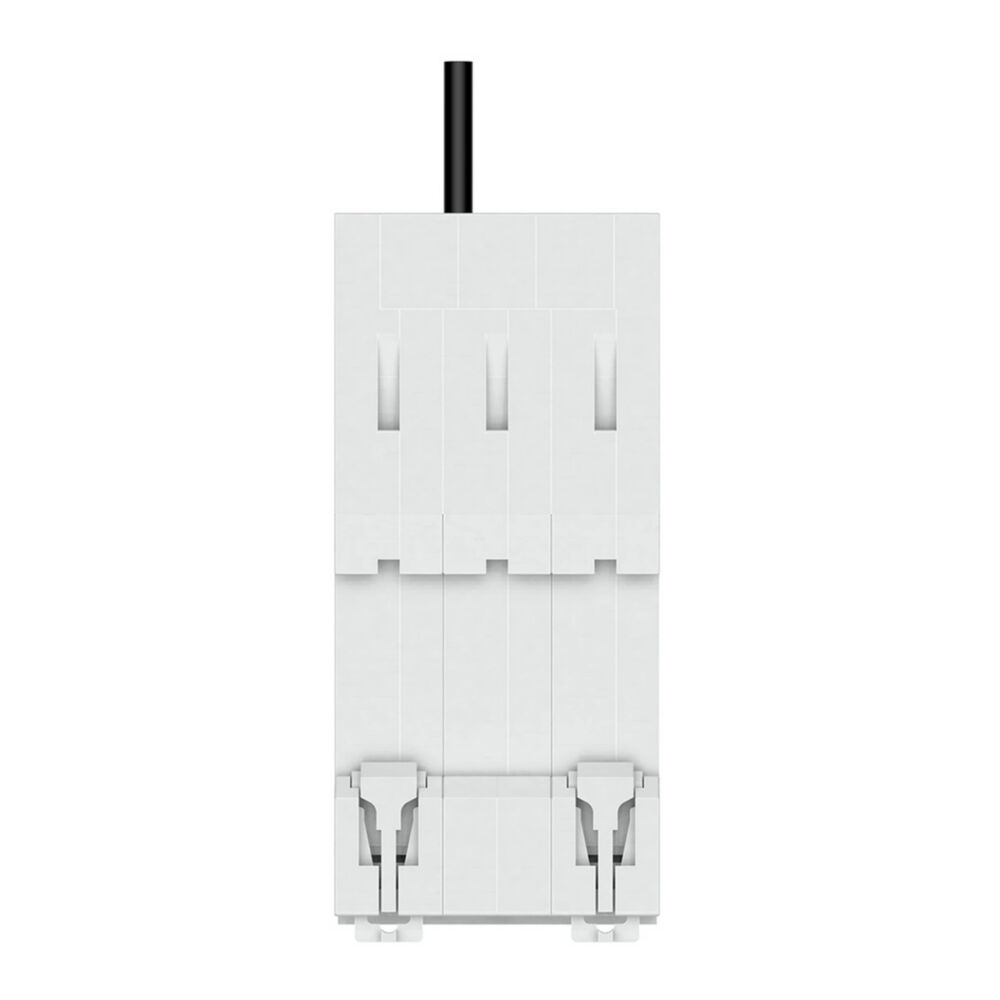

Hager 3 Phase (3P+N) RCBO 6kA 30mA
Type A | C Curve | Neutral Pigtail
SKU: HAALM4T
In Stock
$165.00
$150.00 ex GST
In Stock
Buy Now, Pay Later with
Did You Also Need…?
24 Hour Dispatch
On All Orders
Australian Company
Owned & Operated
20+ Years
Industry Experience
Easy Returns
30 Days Peace Of Mind
The Hager ALM4xxT Series 3P+N RCBO offers combined over‑current and earth leakage protection in a compact three‑phase plus neutral format — ideal for modern three‑phase installations requiring both fault‑current and residual‑current protection in one device. With a 6 kA breaking capacity and 30 mA trip sensitivity, this range is designed for commercial, industrial or larger residential switchboards where discrimination, space efficiency and full compliance are critical.
Key Features
- 3P+N RCBO Combination – Provides MCB and RCD protection in one unit
- 30mA Trip Sensitivity – Personal protection against electric shock and earth faults
- 6kA Breaking Capacity – Suitable for a wide range of switchboard environments
- Wide Current Range – Available in 10A, 16A, 20A, 25A, 32A, 40A, 50A and 63A models
- Type A RCD – Detects both AC and pulsating DC residual currents
- C Curve Trip Characteristic – Ideal for general lighting, power and motor protection
- 3 Module Width – Space-efficient DIN-rail installation
- Fully Switched Neutral – Enhances safety in three-phase systems
- AS/NZS 61009 Compliant – Meets Australian standards for RCBOs
- Compatible with Hager Busbar Systems – Fast and clean switchboard integration
Specifications (typical for 3P+N ALM4xxT series)
- Rated Voltage (Ue): 400 / 415 V AC (three‑phase circuits)
- Rated Impulse Withstand Voltage (Uimp): typically 6 kV or 10 kV depending on breaking capacity variant.
- Rated residual operating current (IΔn): 30 mA
- Breaking capacity (Icn): 6 kA standard
- Number of modules width: 3 modules wide (3M) in DIN‑mounted system.
- Tripping characteristic: C‑curve (standard)
- Range of rated currents: 10 A, 16 A, 20 A, 25 A, 32 A, 40 A, 50 A, 63 A
- Standards Compliance: AS/NZS 61009 (and relevant IEC/EN equivalents) for RCBO devices.
Applications
- Three‑phase commercial installations where combined over‑current and earth‑leakage protection is required (e.g., small industrial boards, apartment building distributors)
- Switchboards servicing workshops, plant rooms, or multi‑unit residential with 3‑phase supplies
- Circuits with mixed loads (motor, general power, lighting) where space‑efficient protection devices are preferred
- Upgrade or retrofit scenarios where board space is at a premium and modular protection devices simplify wiring
Whether you're upgrading a distribution board, specifying protection for three-phase loads, or ensuring AS/NZS 61009 compliance, the Hager ALM4xxT Series delivers smart protection in a sleek, compact form. Trusted by electricians and contractors across Australia, it’s the reliable choice for modern switchboard designs.
Q. Does this series fully switch the neutral conductor?
A. Yes — the ALM4xxT series provides 3 P + N switching so the neutral conductor is also switched, ensuring full circuit isolation when tripped.
Q. Are there different breaking capacity options?
A. Yes — there are standard 6 kA breaking capacity models and higher fault‑level (10 kA) models for more demanding environments.
Q. Can these RCBOs be used for motor loads?
A. Yes, depending on the load. The availability of both C‑curve and D‑curve variants gives flexibility. Check motor inrush current and select appropriate curve.
Q. What size board space do they occupy?
A. These devices are 3‑module (3M) wide in the Hager modular system — meaning three standard DIN modules wide per device.
Q. Are all current ratings covered in this series?
A. Yes — the ALM4xxT series covers 10 A, 16 A, 20 A, 25 A, 32 A, 40 A, 50 A and 63 A, providing a wide selection to match most three‑phase circuit requirements.
