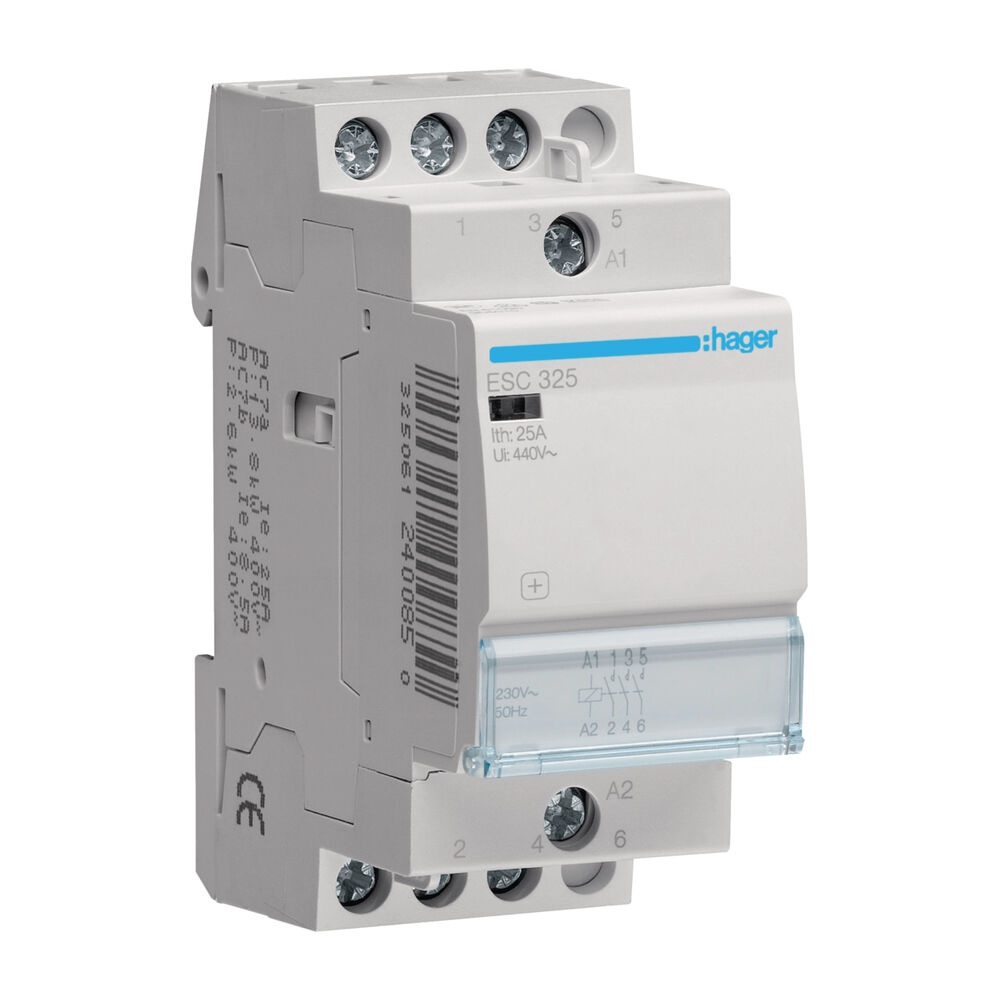

The Hager ESC325 is a 3-pole, 25A modular contactor designed for efficient remote switching of electrical circuits. With its 230V AC coil and three normally open (3NO) contacts, this DIN rail-mounted device is ideal for managing lighting, heating, ventilation, and motor loads in residential, commercial, and industrial settings.

Key Features:

  • Rated Current: 25A (AC1)
  • Contact Configuration: 3 Normally Open (3NO)
  • Control Voltage: 230V AC, 50Hz
  • Compact Design: 2-module width (35.75 mm) for efficient DIN rail installation
  • High Durability: Mechanical endurance of 1,000,000 operations; electrical endurance of 30,000 cycles
  • Low Power Consumption: Operating consumption of 3.4 VA
  • Impulse Withstand Voltage: Rated at 4 kV for enhanced safety
  • Operating Temperature Range: -10°C to +50°C

Specifications:

  • Model Number: ESC325
  • Rated Operational Voltage (Ue): 400V AC
  • Rated Insulation Voltage (Ui): 440V
  • Rated Impulse Withstand Voltage (Uimp): 4 kV
  • Inrush Power Absorbed: 21 VA
  • Total Power Loss Under IN: 6 W
  • Dimensions: Height: 83 mm; Width: 35.75 mm; Depth: 60 mm
  • Mounting: DIN rail (2-module width)
  • Conductor Size: Flexible: 1–6 mm²; Rigid: 1–10 mm²
  • Compliance: RoHS and REACH compliant

Applications:

  • Lighting Control: Automate indoor and outdoor lighting systems
  • Heating Systems: Manage electric heaters or underfloor heating
  • Ventilation: Control fans and air handling units
  • Motor Loads: Operate pumps, compressors, and other motor-driven equipment
  • Home Automation: Integrate into smart home systems for enhanced control

The Hager ESC325 offers a reliable and efficient solution for controlling electrical circuits in various applications. Its compact design, robust performance, and compatibility with standard DIN rail systems make it a valuable component for both new installations and upgrades.

Q: Can the ESC325 be used for inductive loads like motors?
A: Yes, the ESC325 is suitable for inductive loads. However, for high inrush currents, ensure the contactor's specifications align with the application's requirements.

Q: Is there a manual override function?
A: No, the ESC325 does not feature a manual override switch.

Q: What is the difference between AC1 and AC7 categories?
A: AC1 refers to non-inductive or slightly inductive loads, while AC7 pertains to motor loads and other highly inductive applications. The ESC325 is rated for 25A in AC1 and 8.5A in AC7B categories.

Q: Is the ESC325 compatible with other Hager accessories?
A: Yes, it can be integrated with Hager's range of modular devices and accessories for comprehensive electrical solutions.

All products must be installed by a licensed electrican. DIY electrical work is illegal and very dangerous.

Change of Mind
All products purchased from MJS Electrical Products & Supplies are backed by a thirty (30) day Peace of Mind Return Policy. All products returned must be in perfect unused condition, with all components, complete with original packaging. We will not allow returns on damaged or incomplete products. Proof of purchase is required. Should the product not be in original condition, please contact us before returning it as this may save you some unnecessary costs.

Damaged / Faulty Goods
If you find that the goods were damaged in transit or were faulty in some manner, please contact us within 24 hours of receiving the goods. We will organise for the return of the goods and arrange a credit towards your next purchase or send a replacement product. Customer will incur the cost of return postage and be credited the purchase price only. We recommend that you return your unwanted items using registered post or trackable courier. We can not be held responsible if returned items are lost in transit.

Warranties
Product warranties are governed by the respective manufacturers and / or suppliers warranty terms and conditions (available on request). We will not be liable to you or any third party for any loss suffered due to product failure. We will process product warranty claims through the respective manufacturers and/or suppliers. All warranties are void if the product is not installed by a licensed electrician.

Amp 25A
Voltage 240V AC
IP Rating IP20
Poles 3
Module 2
Contact Configuration 3 x NO
PRODUCT INFO
SKU HAESC325
Model # ESC325
Barcode # 3250612400850
Brand Hager
SHIPPING INFO
Shipping Weight 0.2100kg
Shipping Width 0.040m
Shipping Height 0.079m
Shipping Length 0.100m
