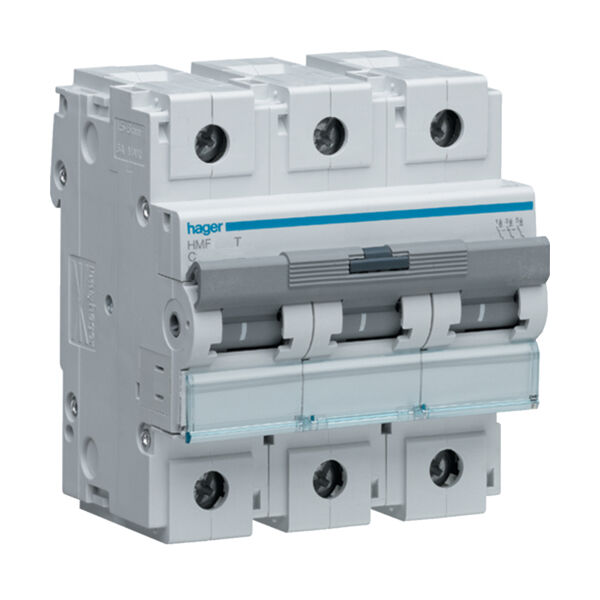

Hager 3 Pole 80 A 10 kA C‑Curve Circuit Breaker
SKU: HAHMF380T
Low Stock
$264.00
$240.00 ex GST
Low Stock
Buy Now, Pay Later with
Did You Also Need…?
24 Hour Dispatch
On All Orders
Australian Company
Owned & Operated
20+ Years
Industry Experience
Easy Returns
30 Days Peace Of Mind
The Hager HMF380T is a robust 3‑pole miniature circuit breaker (MCB) designed for high‑performance three‑phase applications. With an 80 A rated current, C‑curve tripping characteristic, and 10 kA breaking capacity, it is built for serious switchboards and industrial installations. Compatible with DIN‑rail mounting and modular installations, this breaker ensures dependable protection and compliance for commercial and industrial circuits.
Key Features
- 3‑Pole Construction – Three poles switched simultaneously for full three‑phase protection.
- 80 A Rated Current – Suitable for high‑demand circuits where 80 A load capacity is required.
- 10 kA Breaking Capacity – Rated to interrupt fault currents up to 10 000 A (Icn) under 230/400 V AC conditions.
- C‑Curve Tripping Characteristic – Suitable for general power and lighting circuits with moderate inrush loads.
- Rated Operational Voltage 400–415 V AC – Compatible with three‑phase supply systems.
- DIN‑Rail Modular Mounting, 4.5 Modules Wide – Allows compact board installation.
- Wide Cable Capacity – Accepts rigid conductors up to 70 mm² and flexible up to 50 mm² under screw terminals.
- High Mechanical and Electrical Endurance – Rated for 20,000 mechanical operations and 4,000 electrical switching cycles.
Specifications
- Model: HMF380T
- Poles: 3P
- Rated Current (In): 80 A
- Breaking Capacity (Icn): 10 kA AC (230/400 V)
- Tripping Curve: C‑curve
- Rated Operational Voltage (Ue): 400/415 V AC
- Rated Insulation Voltage (Ui): 500 V
- Impulse Withstand Voltage (Uimp): 6 kV
- Modules Width: 4.5 modules (approx.)
- Dimensions: Height 90 mm, Width 80 mm, Depth 70 mm
- Frequency: 50/60 Hz
- Connection Terminals: Screw terminals, top & bottom aligned
- Ambient Operating Temperature: –25 °C to +70 °C
- Standards Compliance: EN 60898‑1, IEC 60947‑2, AS/NZS 60898‑1
Applications
- Main or sub‑distribution boards in three‑phase commercial installations
- Protection of large motors, compressor circuits or HVAC systems requiring 80 A capacity
- Industrial panels where compact modular breakers with high breaking capacity are required
- Switchboard upgrades where space efficiency and fault‑level rating must meet AS/NZS standards
For installers and electrical contractors looking for a compact, high‑capacity, three‑phase protection solution, the Hager HMF380T offers premium performance, space‑saving dimensions and reliable fault interruption capability. Ideal for commercial and light industrial switchboards where safety and compliance cannot be compromised.
Q. Can this breaker be used in a residential board?
A. Yes — if the load and supply are three‑phase and the board design supports a 3‑pole breaker at 80 A and the board’s fault level allows 10 kA, this breaker is compatible. Always ensure the distribution board and upstream protection are correctly rated.
Q. What is meant by “C‑curve” and when is it appropriate?
A. A C‑curve breaker trips between 5 to 10 times the rated current during a short‑circuit event. It is suitable for general lighting, power, and small motor loads with moderate inrush. If you have large motors or heavy inductive loads, a D‑curve may be more appropriate.
Q. Is the 10 kA rating sufficient?
A. The 10 kA rating indicates it can interrupt fault currents up to 10,000 A under standard test conditions. You must ensure the fault level at the circuit is within this rating for safe operation.
Q. Does it switch neutral as well?
A. This model is a 3‑pole breaker (3P), which does not include a separate neutral pole. If full neutral switching is required (3P+N), a different model should be selected.
Q. What size cable can be terminated?
A. It accepts up to 70 mm² rigid conductor and up to 50 mm² flexible conductor under the screw terminals.
