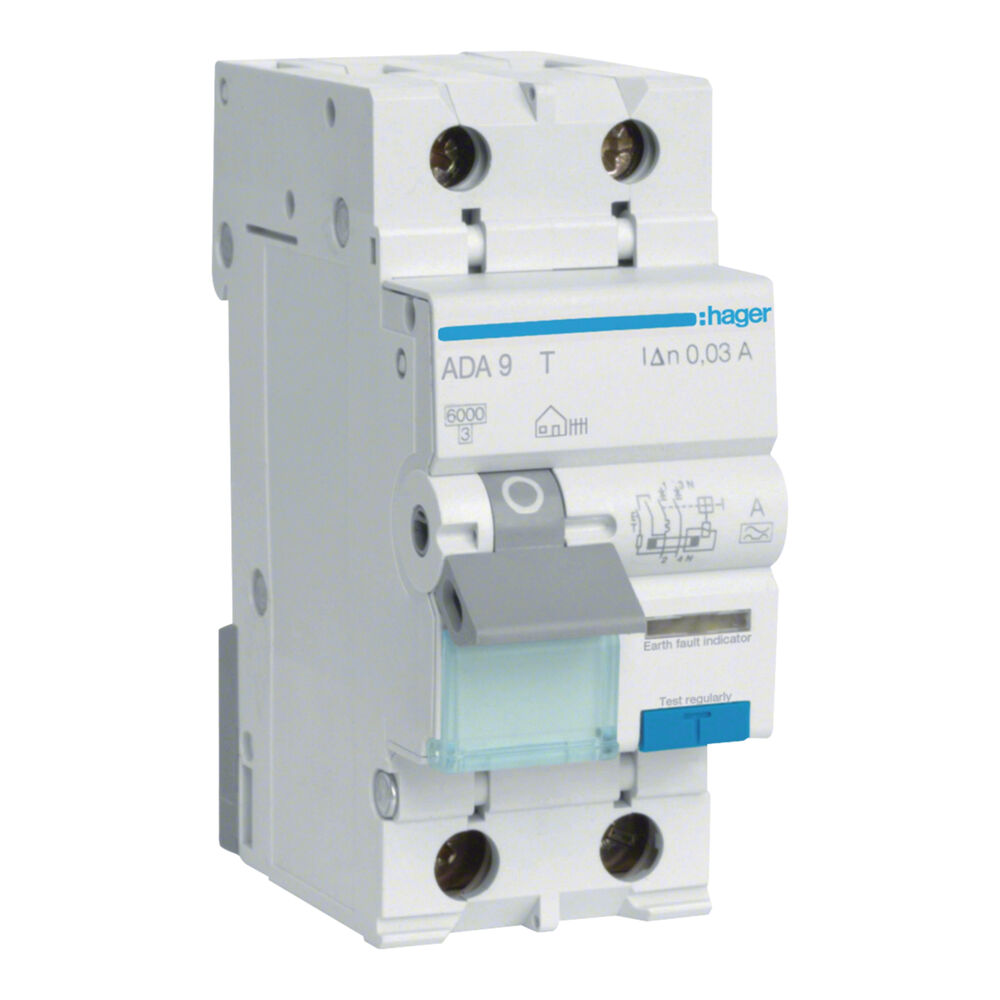

Hager ADA9 T 2 Pole RCBO Safety Switch – 6kA, C Curve, 30mA Type A

Combine circuit protection and residual current safety in one compact device with the Hager ADA9T Series RCBO. This 2-pole RCBO (Residual Current Breaker with Overcurrent protection) has current ratings from 10A to 40A, 6kA breaking capacity, and Type A 30mA RCD protection, making it ideal for safeguarding lighting and power circuits in residential and commercial installations.

Key Features:

  • RCBO Functionality (MCB + RCD): Provides both overload/short-circuit protection and residual current protection in a single module.
  • 2P (1P+N) Configuration: Disconnects both active and neutral conductors for enhanced safety and compliance.
  • Type A RCD: Detects both AC and pulsating DC residual currents, ideal for protecting modern appliances and electronics.
  • C Curve Tripping Characteristic: Designed to handle moderate inrush currents from inductive loads like motors and lighting systems.
  • 6kA Breaking Capacity: High interrupt rating for use in general domestic and light commercial switchboards.
  • Compact DIN Rail Mounting: Slim 18mm module width fits easily into standard DIN rail enclosures.
  • Test Button Included: Allows periodic functional testing of RCD component as per safety regulations.

Specifications:

  • Model: ADA9 T
  • Available in Rated Current: 10A, 16A, 20A, 25A, 32A, 40A
  • Poles: 2 (1P+N)
  • Breaking Capacity: 6kA
  • Tripping Curve: C Curve
  • RCD Sensitivity: 30mA
  • RCD Type: A (AC and pulsating DC)
  • Mounting: DIN rail
  • Standards: AS/NZS 61009.1 compliant
  • Width: 35mm
  • Test Function: Manual test button included

Applications:

  • Residential Installations: Ideal for lighting, small appliance, and power point circuits and high power induction cooktops.
  • Light Commercial: Suited for retail, office, and light industrial switchboards with C Curve protection needs.
  • RCD Compliance: Suitable for installations requiring RCD protection under Australian safety standards.
  • Retrofit & New Builds: Perfect for switchboard upgrades or new fitouts with limited space.

The Hager ADA9 T RCBO is a dependable, compact safety switch solution – combining overload protection and life-saving RCD protection in one trusted device.

Q. Can the ADA9 T be used as the main safety switch?
A. It can protect individual circuits, but a main switch or RCD may still be required depending on your local installation standards.

Q. What does Type A RCD mean?
A. Type A RCDs protect against both AC and pulsating DC earth leakage currents, which are common in modern appliances.

Q. Is this suitable for use with solar installations?
A. Not directly. For solar systems, check with your installer or refer to RCDs rated for DC or Type B as required.

Q. How often should I test the RCD function?
A. Press the test button every 6 months to ensure the safety mechanism is working correctly.

All products must be installed by a licensed electrican. DIY electrical work is illegal and very dangerous.
