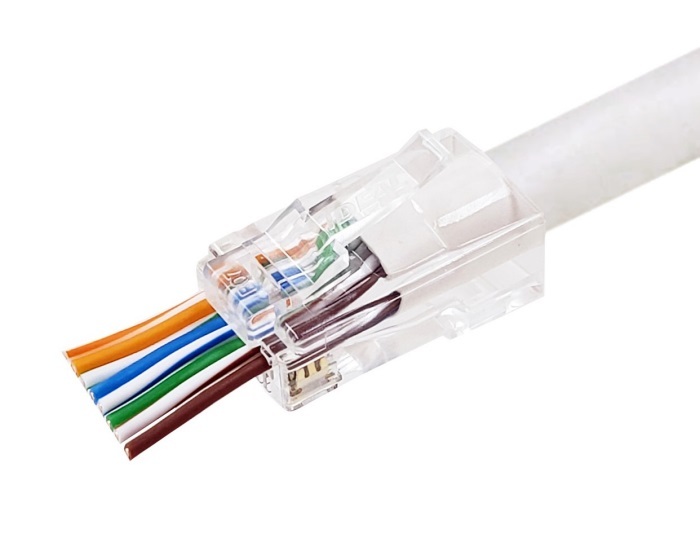

The IDEAL Electrical 85-385 CAT6A/6 RJ-45 Feed-Thru Modular Plugs (Card of 50) are single piece 8P8C RJ-45 connectors designed to work with cable conductors ranging from #22 to #24 AWG solid with an overall diameter of 0.040 in. to 0.048 in. per conductor. The single piece Feed-Thru design simplifies the challenges faced when assembling and terminating twisted pair cables with larger diameter conductors, over 0.041 in., when use of a standard in-line connector is not an option.

A unique staggered conductor hole layout and multi-length contact pins are incorporated to accommodate the larger conductors. The single-piece housing design helps to funnel the conductors through the connector and out of the Feed-Thru end. No precision length trimming, load bars or multi-piece assemblies are required.

Features

  • Feed-Thru modular plug
  • For insulated conductors of 0.040 in. to 0.048 in. diameter
  • CAT6A/6 shielded cable compatible for above diameter range
  • Max. jacket diameter of .320 in.
  • Staggered pin and conductor design
  • Crimp with FT-45™ 30-495 tool
  • 50 micron gold plated contact area
  • UL listed E512035
  • Card of 50

All products must be installed by a licensed electrican. DIY electrical work is illegal and very dangerous.

Change of Mind
All products purchased from MJS Electrical Products & Supplies are backed by a thirty (30) day Peace of Mind Return Policy. All products returned must be in perfect unused condition, with all components, complete with original packaging. We will not allow returns on damaged or incomplete products. Proof of purchase is required. Should the product not be in original condition, please contact us before returning it as this may save you some unnecessary costs.

Damaged / Faulty Goods
If you find that the goods were damaged in transit or were faulty in some manner, please contact us within 24 hours of receiving the goods. We will organise for the return of the goods and arrange a credit towards your next purchase or send a replacement product. Customer will incur the cost of return postage and be credited the purchase price only. We recommend that you return your unwanted items using registered post or trackable courier. We can not be held responsible if returned items are lost in transit.

Warranties
Product warranties are governed by the respective manufacturers and / or suppliers warranty terms and conditions (available on request). We will not be liable to you or any third party for any loss suffered due to product failure. We will process product warranty claims through the respective manufacturers and/or suppliers. All warranties are void if the product is not installed by a licensed electrician.

Type Crimp Connector
PRODUCT INFO
SKU II85-385
Model # 85-385
Barcode # 783250865147
Brand IDEAL Industries
SHIPPING INFO
Shipping Weight 0.0900kg
Shipping Width 0.080m
Shipping Height 0.150m
Shipping Length 0.050m
