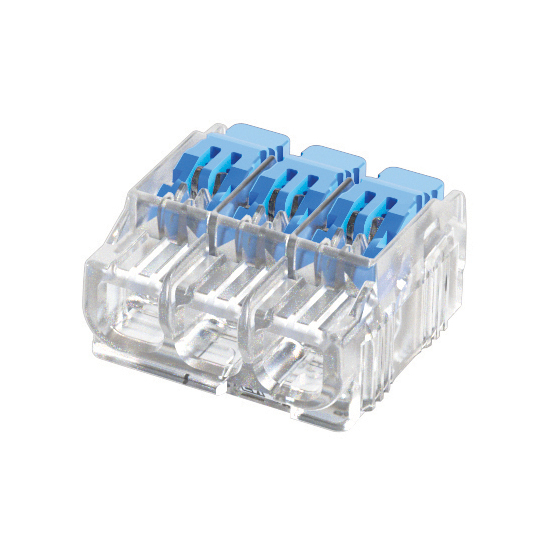

The IDEAL Lever connectors utilise the latest connection technologies and can accommodate multiple wires of different types of sizes.

It offers a fast, simple and cost-effective alternative to terminal strips allowing electrical professionals to save time and money on site while achieving easier, more consistent terminations for wires up to 4mm2 (12AWG) and 32 Amps.

Features

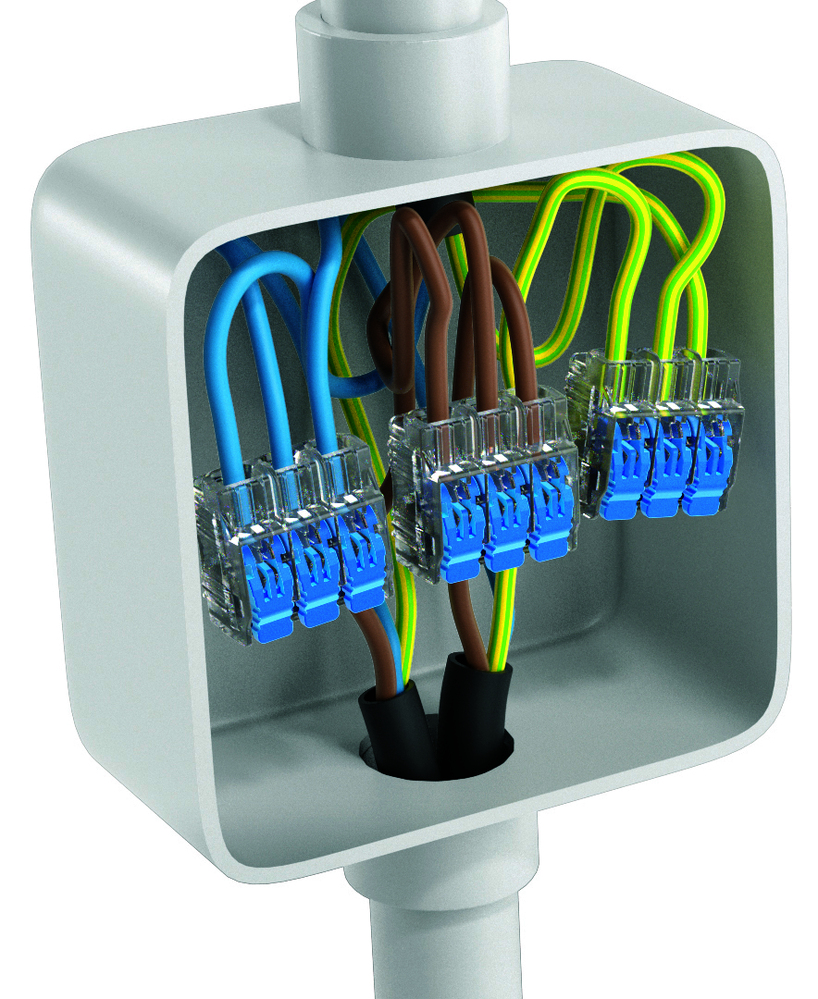

  • For use in all applications up to 32A including lighting, access control, radial and final ring circuits
  • Releasable connector – for solid, stranded and flexible wires
  • Innovative levers – opens in the opposite direction of insertion points
  • Compact design – suits tight spaces
  • Easy to use - no need to lift the levers when using on solid wire
  • Continuity check port - for testing
  • Clear shell - allows for verification of connection

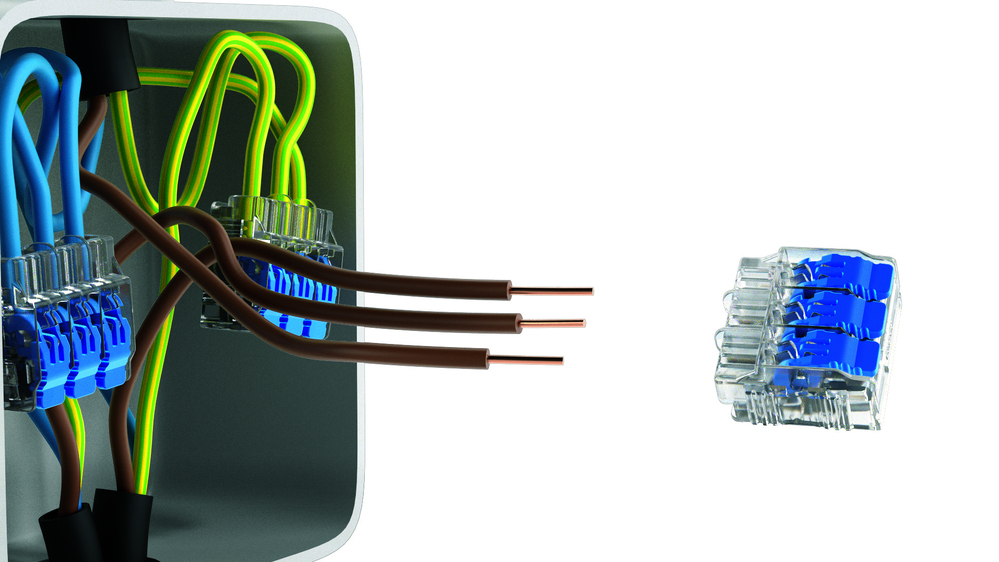

  • Secure your cables in seconds – no screwdriwer, no crimping, just strip, push, connect
  • Wire clamping range:
    • 0.2 mm2 to 4.0 mm2 (24 - 12 AWG for solid and rigid stranded wires (7 strands)
    • 0.14 mm2 to 4.0 mm2 (24 - 12 AWG) for flexible wires
  • Ratings:
    • IEC 60998: 32A | 450V | 85° C (ambient)
    • UL 486C: 20A |600V | 105° C (working)
  • Strip Length: 11-12 mm | 0.45"
  • Compliant with AS/NZS IEC 60998.1 and AS/NZS 60998.2.2 connecting device standards and UL 486C
  • CE, UKCA, UL and ENEC approved
  • 50 Pack in a Jar

All products must be installed by a licensed electrican. DIY electrical work is illegal and very dangerous.

Change of Mind
All products purchased from MJS Electrical Products & Supplies are backed by a thirty (30) day Peace of Mind Return Policy. All products returned must be in perfect unused condition, with all components, complete with original packaging. We will not allow returns on damaged or incomplete products. Proof of purchase is required. Should the product not be in original condition, please contact us before returning it as this may save you some unnecessary costs.

Damaged / Faulty Goods
If you find that the goods were damaged in transit or were faulty in some manner, please contact us within 24 hours of receiving the goods. We will organise for the return of the goods and arrange a credit towards your next purchase or send a replacement product. Customer will incur the cost of return postage and be credited the purchase price only. We recommend that you return your unwanted items using registered post or trackable courier. We can not be held responsible if returned items are lost in transit.

Warranties
Product warranties are governed by the respective manufacturers and / or suppliers warranty terms and conditions (available on request). We will not be liable to you or any third party for any loss suffered due to product failure. We will process product warranty claims through the respective manufacturers and/or suppliers. All warranties are void if the product is not installed by a licensed electrician.

PRODUCT INFO
SKU II30-0093J
Model # 30-0093J
Barcode # 783250757701
Brand IDEAL Industries
SHIPPING INFO
Shipping Weight 0.2800kg
Shipping Width 0.085m
Shipping Height 0.060m
Shipping Length 0.070m
