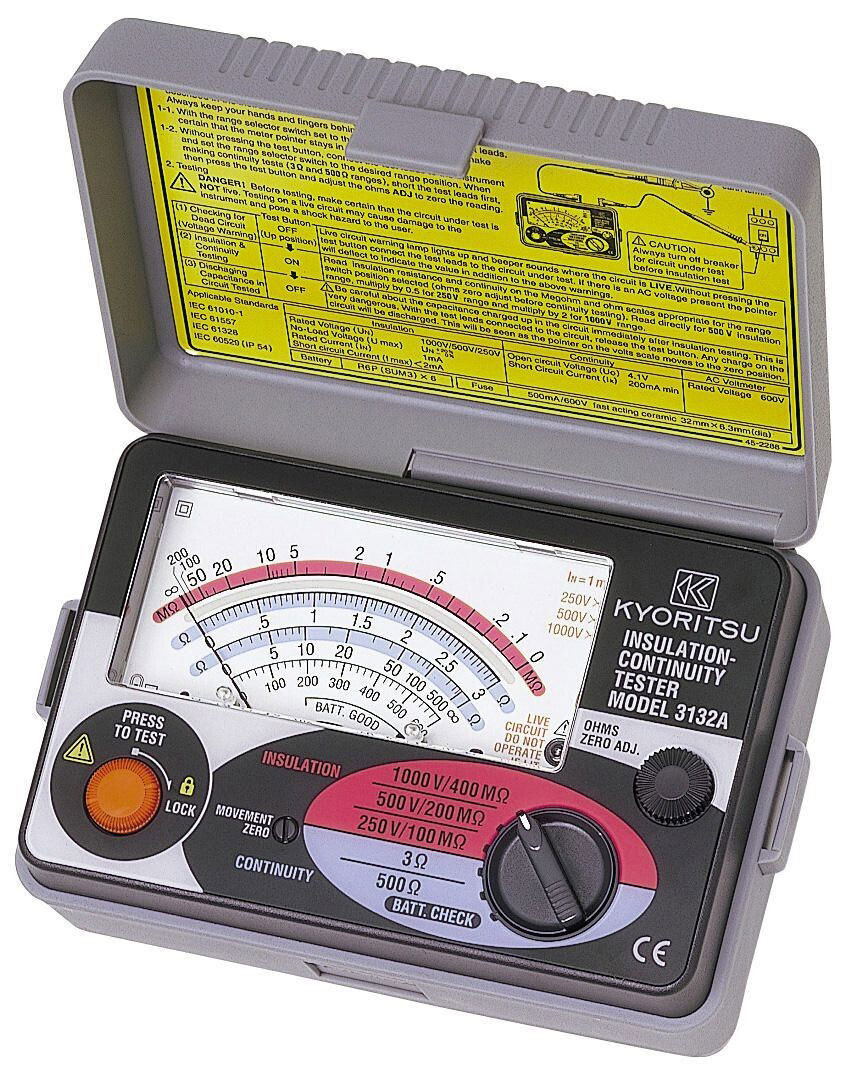

• Dust and drip proof construction. (designed to IEC 60529 IP54)
  • Designed to meet IEC 61010-1 and IEC 61557 safety standard.
  • 1mA rated test current at the minimum resistance.
  • 200mA measuring current on continuity testing
  • Automatic discharge of circuit capacitance.
    (Any charge stored in the circuit under test will be automatically discharged after testing.)
  • Live circuit warning buzzer and neon lamp.
  • Small and lightweight. Shock resistant new case material.
  • AC voltmeter with linear, easy-to-read scale.
  • Operates on AA, R6 × 6 dry batteries.



Insulation Resistance

Test voltage 250V/500V/1000V
Measuring ranges
(Mid-scale value)		 100MΩ/200MΩ/400MΩ
(1MΩ) (2MΩ) (4MΩ)
Output voltage on open circuit Rated test voltage+20%, -0%
Nominal current 1mA DC min.
Output short circuit current 1 - 2mA DC
Accuracy 0.1 - 10MΩ/0.2 - 20MΩ/0.4 - 40MΩ
(Accuracy Guaranteed Ranges) ±5% of indicated value



Continuity

Measuring ranges
(Mid-scale value)		 3Ω/500Ω
(1.5Ω) / (20Ω)
Output voltage on open circuit 4.1V DC approx.
Measuring current 210mA DC min.
Accuracy ±1.5% of scale length

AC Voltage

AC Voltage 0 - 600V AC
Accuracy ±5% of scale length

General

Safety Standard IEC 61010-1 CAT III 600V Pollution Degree 2
IEC 61010-2-031
IEC 61557-1/2/4
IP Rating IEC 60529-IP54
EMC Standard IEC 61326-1
Power source R6 (AA) (1.5V) × 6
Dimensions 106(L) × 160(W) × 72(D)mm
Weight 560g approx.
Included Accessories 7122B (Test leads) Pouch for test leads
8923 (F500mA/600V fuse) × 2
R6 (AA) × 6
9121 (Shoulder Strap)
Instruction Manual
