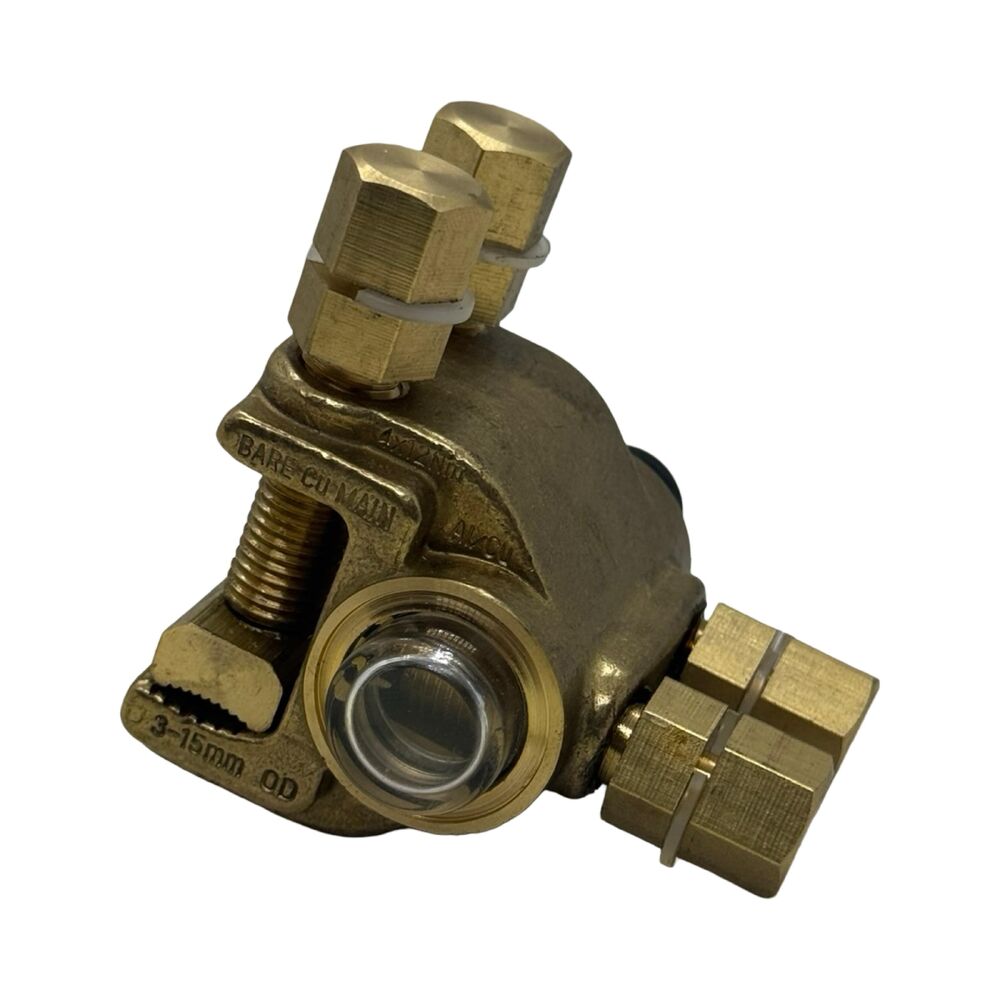

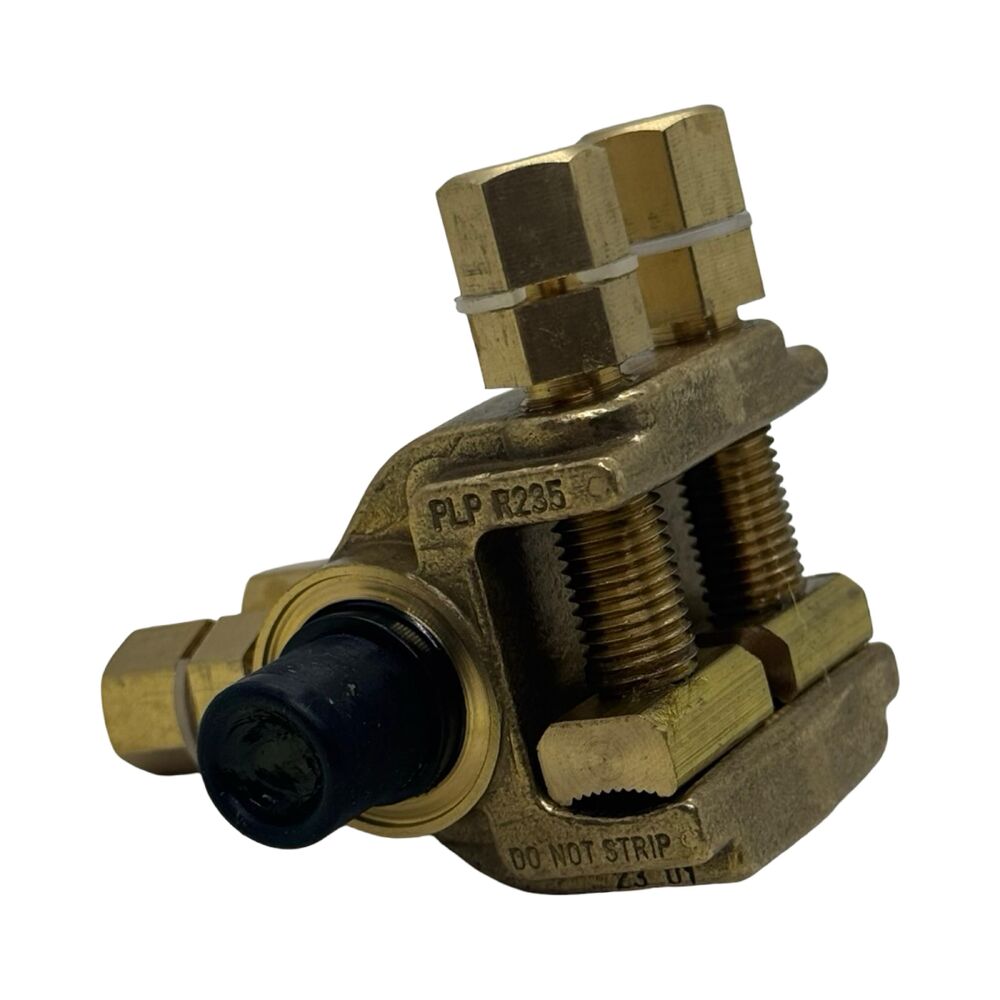

The Preformed Line Products (PLP) R235-4 Double Copper Tap Off Connector is a robust and reliable tap-off connector designed for efficient and secure connections between bare copper mains and service cables. Utilizing insulation piercing technology, it eliminates the need for cable stripping, ensuring a moisture-free and durable connection.

Key Features:

  • Insulation Piercing Technology: Allows for direct connection without stripping the cable, maintaining insulation integrity.
  • Forged Copper Body: Provides enhanced strength and durability for long-term performance.
  • Shear-Head Bolts: Both mains and tap bolts feature shear-head technology, ensuring proper torque application with a standard M8 socket.
  • Visual Connection Confirmation: Polycarbonate windows on tap facilities enable operators to verify the connection visually.
  • Reusability: Connectors can be disconnected and reconnected from the mains with ease, facilitating maintenance and modifications.
  • Standards Compliance: Tested to meet the applicable requirements of AS/NZ4396, ensuring quality and safety.

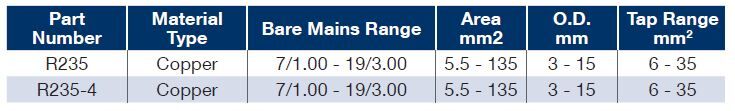

Specifications:

  • Model: R235-4
  • Sicame Equivalent: CCW35DB or CCW35DBE
  • Material: Forged Copper
  • Main Conductor Range: 3–15mm (5.5-135mm²)
  • Tap Conductor Range: 6–35mm²
  • Bolt Type: Shear-head bolts compatible with M8 socket
  • Cable Compatibility: XLPE or PVC Copper Service Cables
  • Main Conductor: Bare Copper
  • Standards Compliance: AS/NZS4396
  • Installation Method: No stripping required (insulation piercing technology)

Applications:

  • Electrical Distribution Networks: Ideal for connecting service cables to bare copper mains in residential and commercial settings.
  • Utility Installations: Suitable for use in utility infrastructure where reliable and moisture-resistant connections are critical.
  • Maintenance and Upgrades: Facilitates easy disconnection and reconnection during system maintenance or upgrades.

For a dependable and efficient solution to connect service cables to bare copper mains, the Preformed Line Products R235-4 Double Copper Tap Off Connector offers superior performance, ease of installation, and compliance with industry standards.

Q: What type of cables can be used with the R235-4 Tap Off Connector?
A: The connector is designed for XLPE or PVC insulated copper and aluminium service cables connecting to bare copper or bare aluminium mains.

Q: Is cable stripping required before installation?
A: No, the insulation-piercing technology eliminates the need to strip the cable, making installation faster and more reliable.

Q: What is the benefit of the shear-head bolt technology?
A: The M8 shear-head bolt ensures a consistent torque-controlled connection, preventing over-tightening and ensuring a secure electrical bond.

Q: Can this connector be used in outdoor installations?
A: Yes, the R235-4 is designed for outdoor applications with moisture-free sealing, preventing corrosion and long-term degradation.
