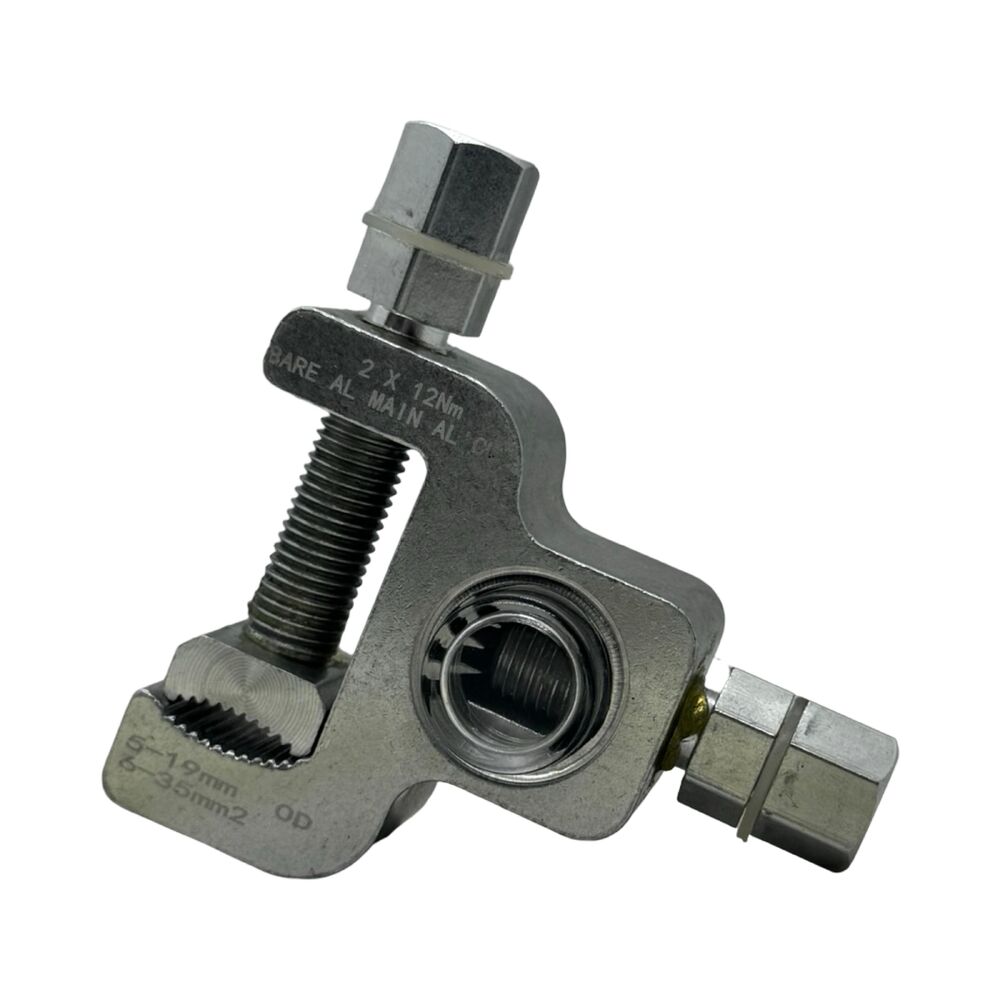

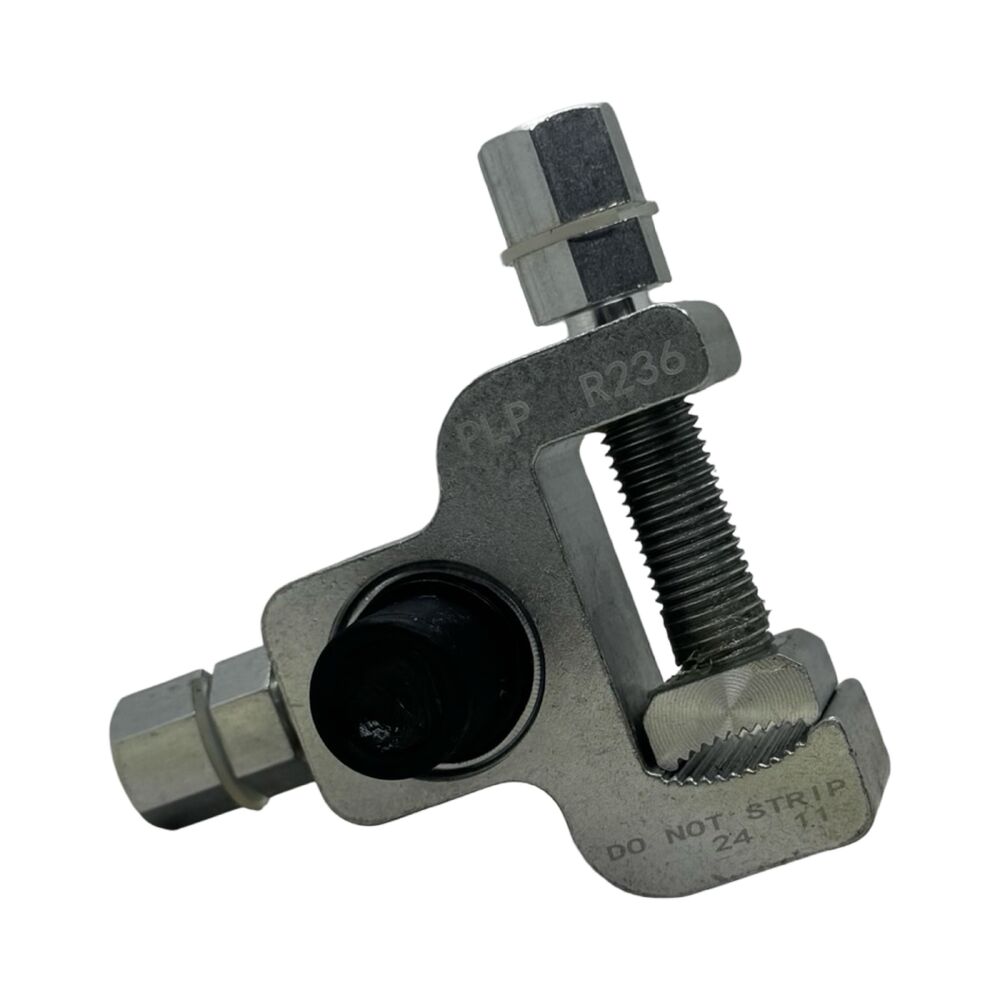

The Preformed Line Products (PLP) R236 Single Aluminium Tap Off Connector is a high-performance, single-bolt tap-off connector designed for reliable and efficient connections between bare aluminium mains and service cables. Utilizing insulation piercing technology, it eliminates the need for cable stripping, ensuring a moisture-free and durable connection.

Key Features:

  • Insulation Piercing Technology: Allows for direct connection without stripping the cable, maintaining insulation integrity.
  • Shear-Head Bolt: Features shear-head technology, ensuring proper torque application with a standard M8 socket.
  • Visual Connection Confirmation: Polycarbonate windows on tap facilities enable operators to verify the connection visually.
  • Reusability: Connectors can be disconnected and reconnected from the mains with ease, facilitating maintenance and modifications.
  • Standards Compliance: Tested to meet the applicable requirements of AS/NZS4396, ensuring quality and safety.

Specifications:

  • Model: R236
  • Sicame Equivalent: CAW35 or CAW35E
  • Main Conductor Range: 5–19mm (approx. 16–210mm²)
  • Tap Conductor Range: 6–35mm²
  • Bolt Type: Shear-head bolt compatible with M8 socket
  • Cable Compatibility: XLPE or PVC Aluminium Service Cables
  • Main Conductor: Bare Aluminium
  • Material: Aluminium alloy body with polycarbonate inspection windows
  • Standards Compliance: AS/NZS4396

Applications:

  • Electrical Distribution Networks: Ideal for connecting service cables to bare aluminium mains in residential and commercial settings.
  • Utility Installations: Suitable for use in utility infrastructure where reliable and moisture-resistant connections are critical.
  • Maintenance and Upgrades: Facilitates easy disconnection and reconnection during system maintenance or upgrades.

For a dependable and efficient solution to connect service cables to bare aluminium mains, the Preformed Line Products R236 Single Aluminium Tap Off Connector offers superior performance, ease of installation, and compliance with industry standards.

Q: Can the R236 connector be used with copper conductors?
A: The R236 is specifically designed for use with aluminium conductors. For copper conductors, alternative connectors should be considered.

Q: Is special tooling required for installation?
A: No special tools are required; a standard M8 socket is sufficient for tightening the shear-head bolt.

Q: Can the connector be reused after disconnection?
A: Yes, the R236 is designed to be disconnected and reconnected from the mains with ease, allowing for reuse during maintenance or system changes.

Q: Does the connector provide a waterproof seal?
A: While the connector creates a moisture-free environment at the connection point, it is essential to ensure that all other connections on the service and consumer's cable are also waterproof to prevent moisture ingress.
