The PAN920SKHD video intercom is a cost effective door entry solution providing HD colour resolution and modern monitor design with touch button controls. The metal IP65 rated door camera and recording function (when optional microSD card fitted) will provide the added door entry security required for all families.

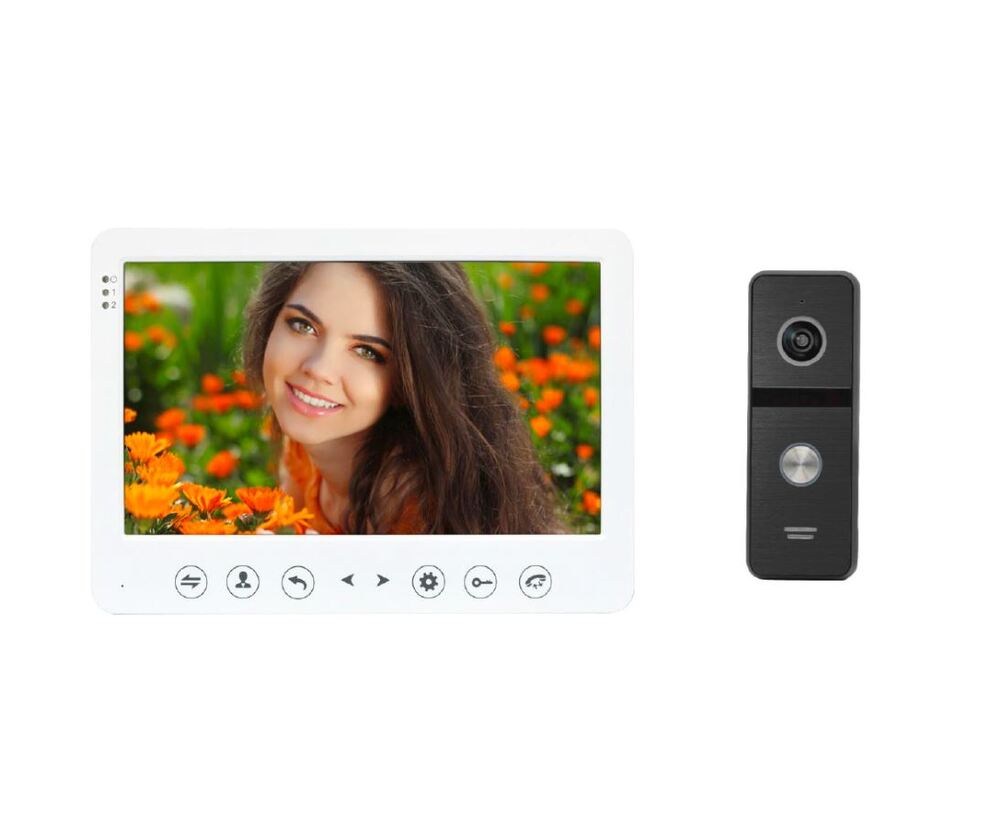

Kit Components:

  • 1 x 7” LCD HD Monitor with power supply
  • 1 x 1.3MP Door Station (IP65) with angle bracket
  • User & Installation Manual
  • Screws & cable connectors

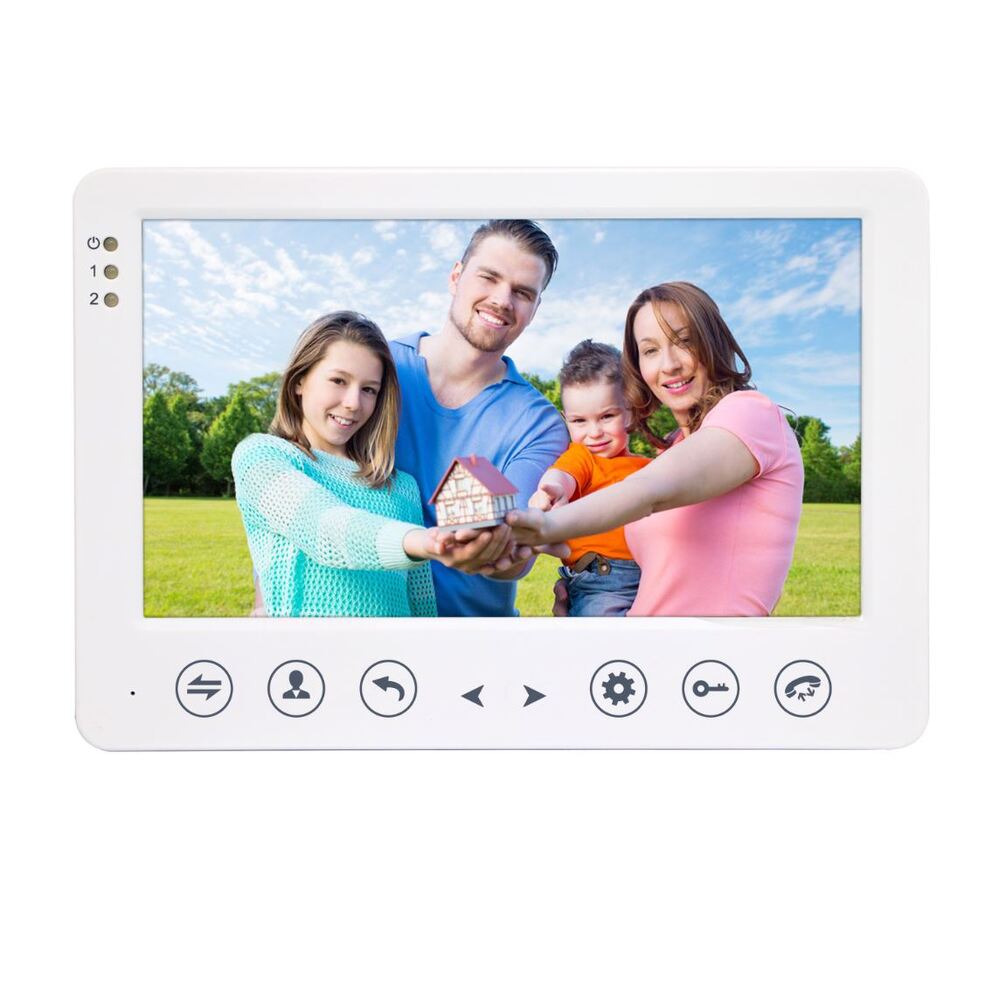

Internal Video Monitor Features

  • 7″ TFT LCD Monitor, white, surface mount
  • Touch button controls for ease of use
  • Intercommunication & call transfer functions
  • Door release (12VDC output)
  • Analog or AHD CCTV camera and motion detector connection
  • 4-wire system
  • When SD card is inserted (not supplied), the follow features apply:
    • Memory Record (snapshot or video) when doorbell is pressed
    • Digital Photo Frame
    • Movie Player
    • Music Player
    • User defined ring tones
    • Motion detection recording
  • Dimensions 185.3 (W) x 127.3 (H) x 21.5mm (D)

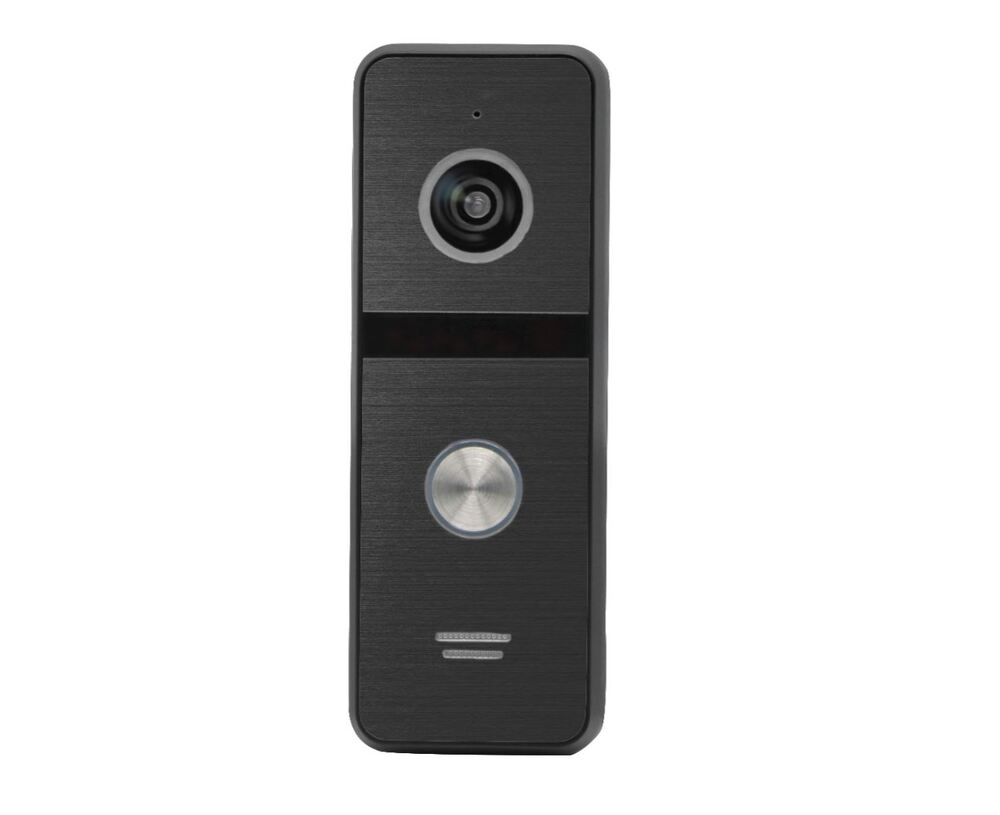

Surface Mount Outdoor Camera Features

  • Single push button with illuminated call button
  • IP65 weatherproof rating
  • 1.3MP resolution
  • Slim 17.5mm profile
  • 45 degree angle bracket included for side wall mounting
  • LED light for night vision
  • Wide angle 120 degree view
  • Dimensions: 48 (W) x 133 (H) x 17.5mm (D)

System Expandability

  • Expandable up to 2 outdoor cameras and 6 internal video monitors & 2 Analogue or AHD CCTV Cameras

Cable Requirements

  • 0m-50m: 1 x CAT-5e or 1 x 4 core 0.5mm2
  • 51-100m: 1 x RG59 Coax + 1 x 4 core 0.5mm2

All products must be installed by a licensed electrican. DIY electrical work is illegal and very dangerous.

Change of Mind
All products purchased from MJS Electrical Products & Supplies are backed by a thirty (30) day Peace of Mind Return Policy. All products returned must be in perfect unused condition, with all components, complete with original packaging. We will not allow returns on damaged or incomplete products. Proof of purchase is required. Should the product not be in original condition, please contact us before returning it as this may save you some unnecessary costs.

Damaged / Faulty Goods
If you find that the goods were damaged in transit or were faulty in some manner, please contact us within 24 hours of receiving the goods. We will organise for the return of the goods and arrange a credit towards your next purchase or send a replacement product. Customer will incur the cost of return postage and be credited the purchase price only. We recommend that you return your unwanted items using registered post or trackable courier. We can not be held responsible if returned items are lost in transit.

Warranties
Product warranties are governed by the respective manufacturers and / or suppliers warranty terms and conditions (available on request). We will not be liable to you or any third party for any loss suffered due to product failure. We will process product warranty claims through the respective manufacturers and/or suppliers. All warranties are void if the product is not installed by a licensed electrician.

Colour White
Type Video Intercom
PRODUCT INFO
SKU PAN920SKHD
Model # PAN920SKHD
Barcode # 9318475001684
Brand PSA
SHIPPING INFO
Shipping Weight 1.2000kg
Shipping Width 0.100m
Shipping Height 0.230m
Shipping Length 0.265m
