The INTIPRDSJ is a single channel video intercom solution ideal for homes and single-premises buildings. It can be operated via a single backlit button or via NFC-capable card, with voice prompts to inform the user about door lock, call & resident status. Also features door sensor and door strike integration, remote unlock via smartphone and visitor audio/video messaging functions.

Product features:

  • 1/4’’ 1.0MP camera with 122° FOV
  • Built-in microphone and speaker for 2-way talk
  • Built-in NFC card reader for keycard access (up to 10,000 NFC cards)
  • Connect with intercom monitor(s) via Ethernet
  • Door control, alarm and RS485 input/output relays
  • Intuitive, easy-to-use interface
  • Power over Ethernet (12VDC, 802.3af)
  • IP65 rated weather resistant matte plastic body (front plate)

* We recommended that Door Stations are mounted in a sheltered location, not exposed directly to weather, as only the front plate is weather resistant.
* When installing the Door Station, apply outdoor silicone sealant between the Door Station & the wall, & seal the hole that has been created for the cable to prevent water ingress. If using a mounting box, ensure the box is sealed, & the included waterproof rubber seals are used when installing the screws.


General

  • Main Processor: Embedded Microprocessor
  • Camera System: 1/4’’ 1.0 Megapixel CMOS (Horizontal FoV: 122°)
  • Low-Light Application: Day/Night ICR
  • Card Support: Built-in NFC Card Reader
  • Keypad: 1 Mechanical Button
  • Tamper Detection: Yes
  • Input / Output: 1 x alarm input / 1 x alarm output / 1 x RS485
  • Audio / 2-Way Talk: Omni-directional Microphone & Embedded Loudspeaker for 2-way talk
  • Internal MicroSD Slot: Yes, up to 64GB
  • Ethernet / Network: 10M/100Mbps Self-adaptive / TCP/IP protocol
  • Max. Additional Door Stations: 20
  • Max. Indoor Monitors: 10
  • App Connection: QR Code


Environmental

  • Vandal Resistant: N/A
  • Ingress Protection: IP65 (Front plate)
  • Installation Options: Surface mount
  • Construction: PC + Acrylic
  • Installation Kit: N/A
  • Power Input: / Use 12VDC 1A, PoE (802.3af) / Operation < 5W

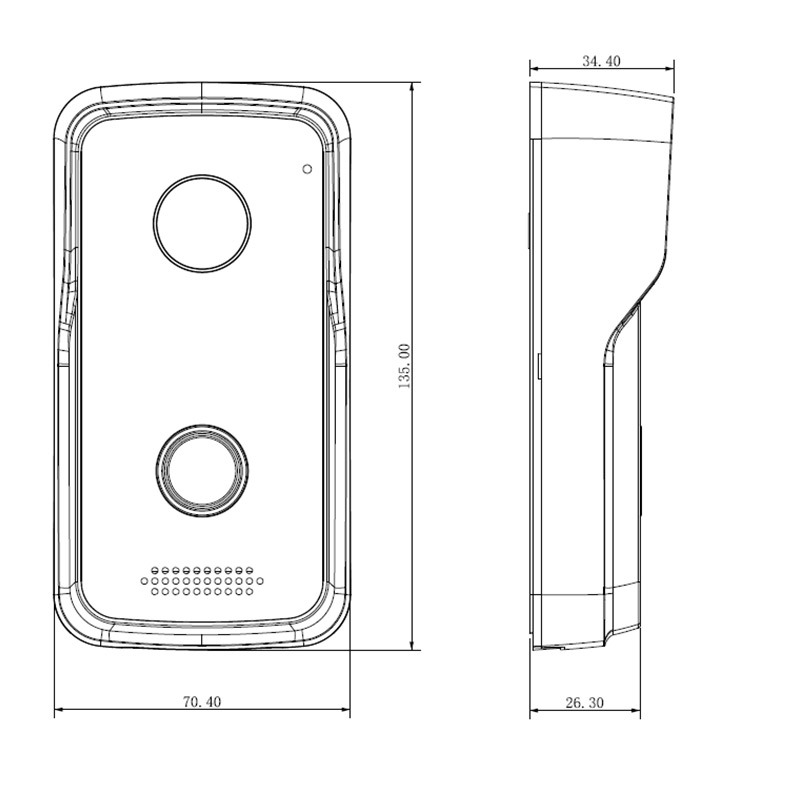

  • Weight / Dimensions: 0.32kg / 71 x 35 x 135mm

All products must be installed by a licensed electrican. DIY electrical work is illegal and very dangerous.

Change of Mind
All products purchased from MJS Electrical Products & Supplies are backed by a thirty (30) day Peace of Mind Return Policy. All products returned must be in perfect unused condition, with all components, complete with original packaging. We will not allow returns on damaged or incomplete products. Proof of purchase is required. Should the product not be in original condition, please contact us before returning it as this may save you some unnecessary costs.

Damaged / Faulty Goods
If you find that the goods were damaged in transit or were faulty in some manner, please contact us within 24 hours of receiving the goods. We will organise for the return of the goods and arrange a credit towards your next purchase or send a replacement product. Customer will incur the cost of return postage and be credited the purchase price only. We recommend that you return your unwanted items using registered post or trackable courier. We can not be held responsible if returned items are lost in transit.

Warranties
Product warranties are governed by the respective manufacturers and / or suppliers warranty terms and conditions (available on request). We will not be liable to you or any third party for any loss suffered due to product failure. We will process product warranty claims through the respective manufacturers and/or suppliers. All warranties are void if the product is not installed by a licensed electrician.

Type Intercom Door Station
Model INTIPRDSJ
Voltage 12V DC
PRODUCT INFO
SKU VIPINTIPRDSJ
Model # INTIPRDSJ
Brand VIP Vision
SHIPPING INFO
Shipping Weight 0.3200kg
Shipping Width 0.170m
Shipping Height 0.167m
Shipping Length 0.173m
