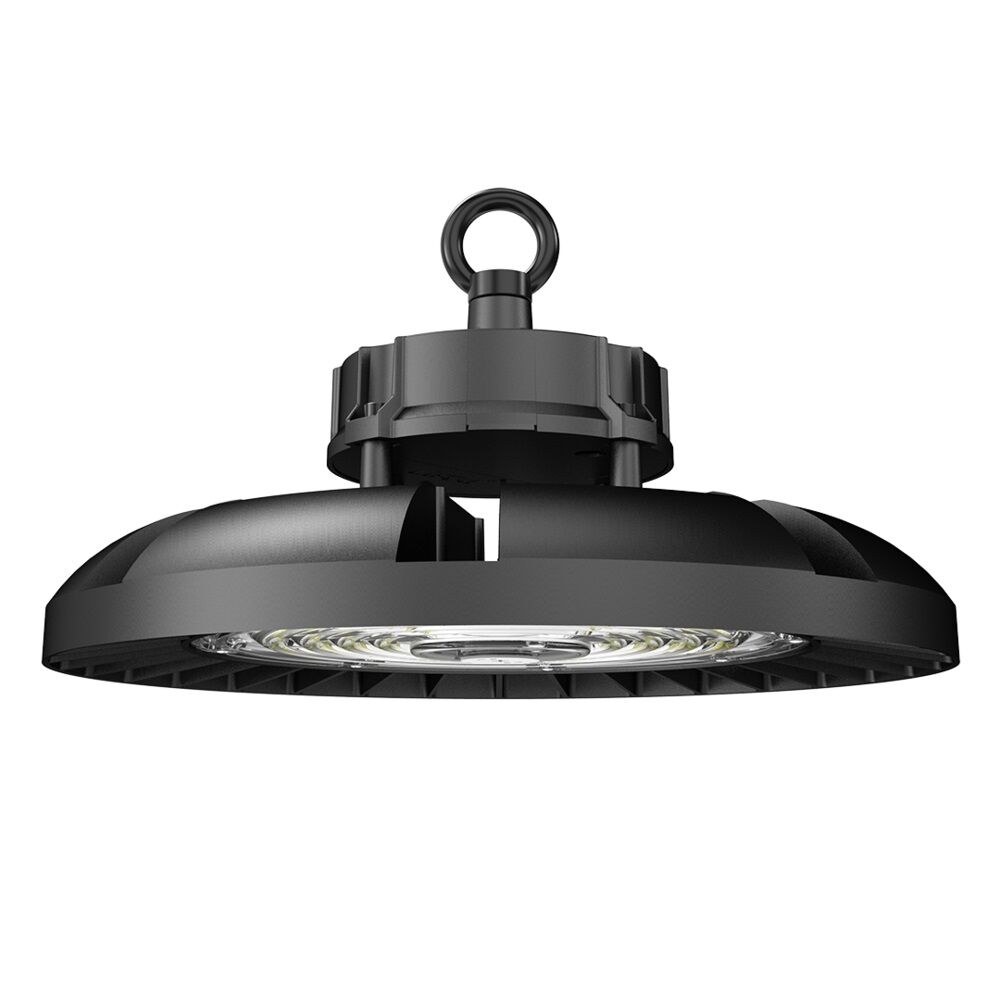

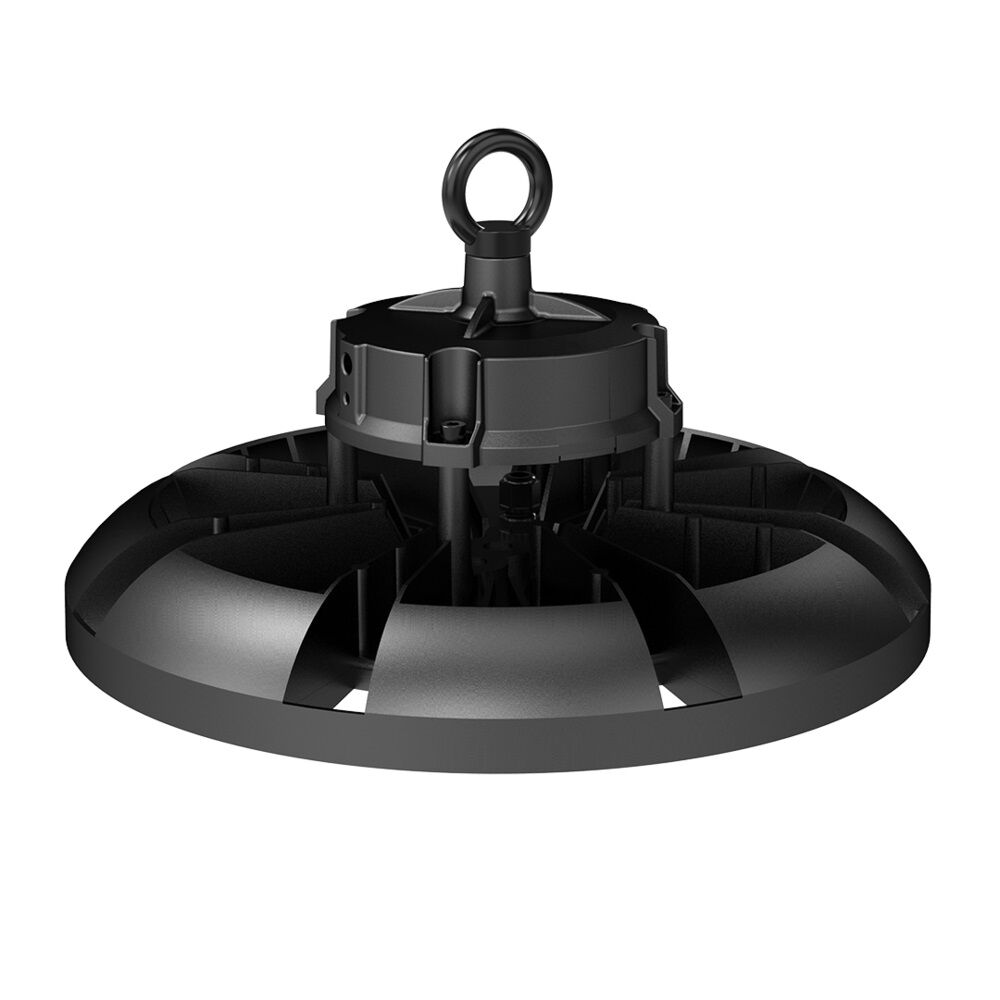

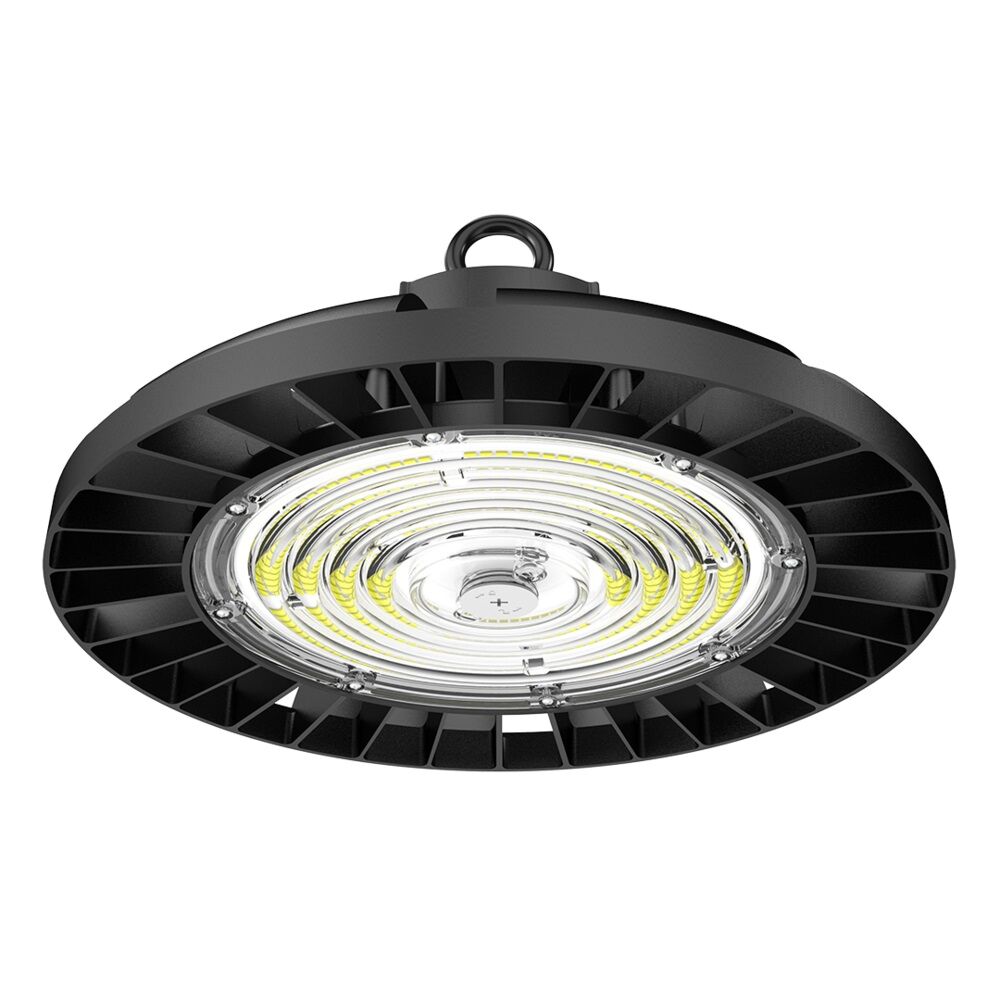

The SAL UFO SHB23MP/150/TC2 LED Highbay is a commercial-grade, super low-profile LED highbay designed for warehouses, factories, workshops, storage areas and large open spaces. With selectable power settings, selectable colour temperature, IP65 protection, 1-10V dimming and high performance output up to 30,000 lumens, it gives installers and customers excellent flexibility from one fitting.

Key Features

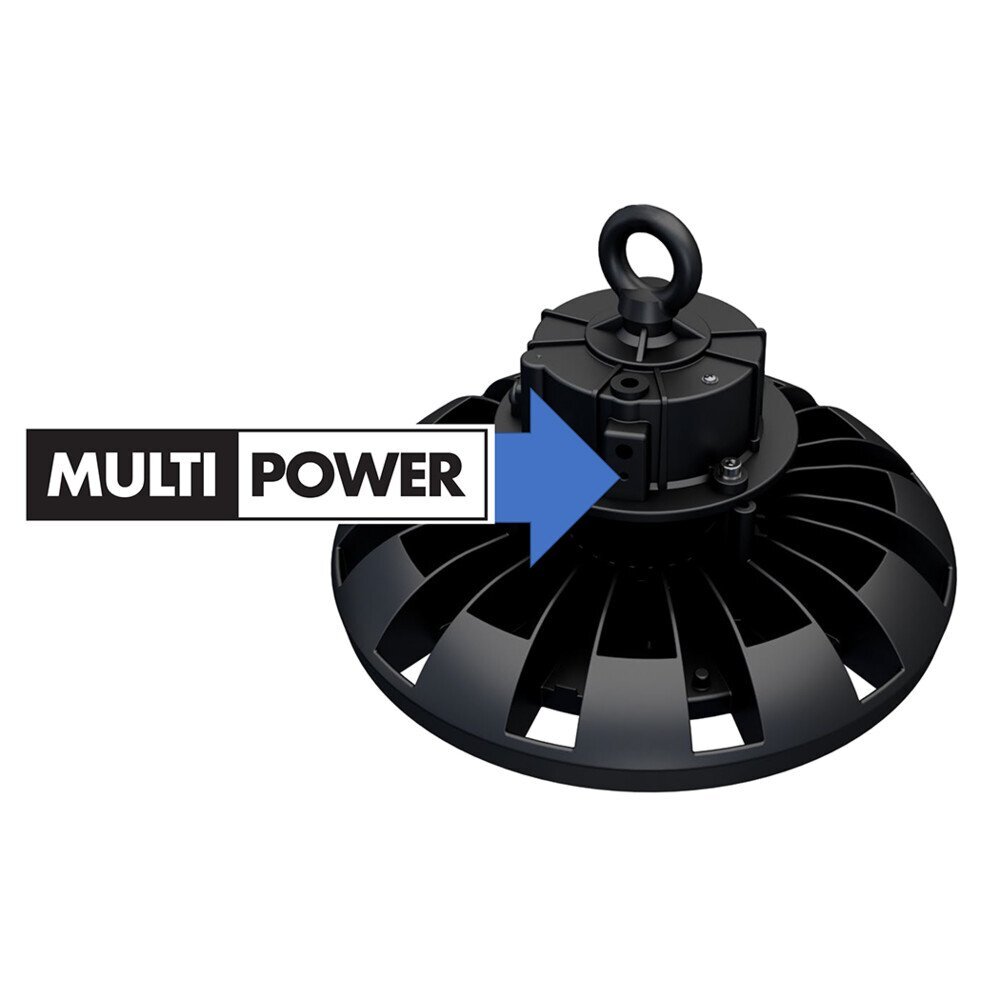

  • Selectable Power Output: Adjustable power settings of 90W, 120W and 150W allow the light output to be tailored to suit the installation area.

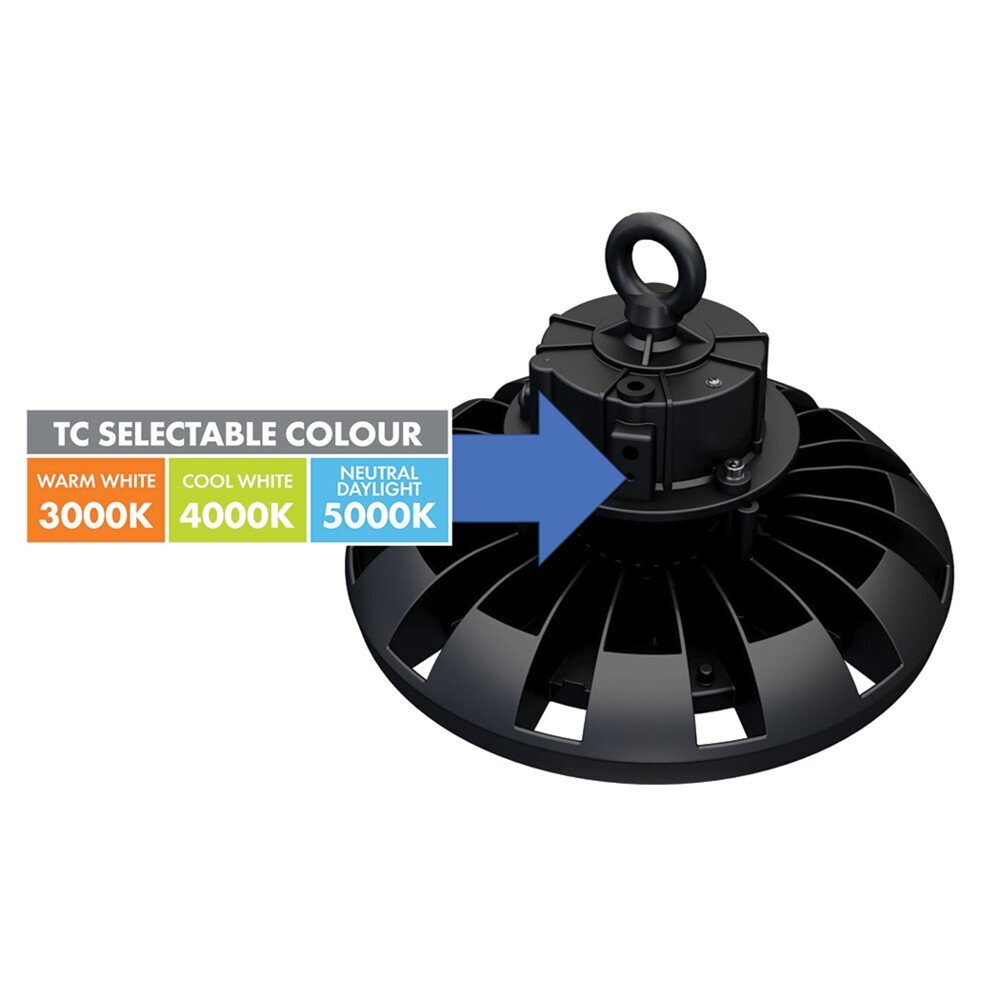

  • Tri-Colour CCT Selection: Choose between 3000K, 4000K and 5000K, giving flexibility for warm white, neutral white or cool white lighting requirements.
  • High Lumen Performance: Produces up to 30,000 lumens, delivering strong illumination for high ceilings, commercial workspaces and industrial environments.
  • 200lm/W Performance: Designed for high efficiency, helping provide excellent light output while keeping energy usage under control.
  • 1-10V Dimmable: Supports 1-10V dimming, making it suitable for projects requiring adjustable lighting levels or integration with compatible lighting controls.
  • IP65 Rated Protection: Built for demanding environments where protection against dust and water ingress is required.
  • Super Low-Profile UFO Design: The compact UFO-style body provides a modern, space-saving alternative to traditional highbay fittings.
  • 90° Beam Angle: Delivers a broad and practical light spread for warehouses, factories, gyms and commercial spaces.
  • Black Body Finish: The black finish provides a professional appearance suited to exposed ceiling installations.
  • Lightweight Commercial Build: With a mass of approximately 2kg, it is easier to handle and install compared with bulkier traditional highbay options.

Specifications

  • Model: SHB23MP/150/TC2
  • Power: 150W maximum
  • Selectable Wattage: 90W / 120W / 150W
  • Input Voltage: 240V AC
  • Dimming Type: 1-10V dimmable
  • Colour Temperature: 3000K / 4000K / 5000K selectable
  • Lumen Output: 27,500lm / 30,000lm / 28,300lm
  • Beam Angle: 90°
  • CRI: 70
  • Body Colour: Black
  • Diameter: 280mm
  • Height: 170mm
  • Mass: 2kg
  • IP Rating: IP65
  • Design Style: Super low-profile UFO highbay

Applications

  • Warehouses
  • Factories
  • Workshops
  • Storage facilities
  • Retail back-of-house areas
  • Indoor sports facilities
  • Commercial units
  • Industrial work areas
  • Loading zones
  • Large open ceiling spaces

The SAL SHB23MP/150/TC2 UFO LED Highbay is a flexible and efficient lighting solution for commercial and industrial projects. With selectable wattage, selectable CCT, 1-10V dimming, IP65 protection and high lumen output, it gives electricians and customers the flexibility to match the lighting performance to the job while keeping the installation clean, modern and professional.

Q. What wattage settings are available on the SAL SHB23MP/150/TC2?
A. This model has selectable power settings of 90W, 120W and 150W, allowing the output to be adjusted to suit the installation.

Q. What colour temperatures can this highbay be set to?
A. It offers selectable 3000K, 4000K and 5000K colour temperature options.

Q. Is this highbay dimmable?
A. Yes. The SHB23MP/150/TC2 supports 1-10V dimming when connected to a compatible dimming control system.

Q. Is the SAL UFO highbay suitable for dusty or damp environments?
A. Yes. It has an IP65 rating, making it suitable for commercial and industrial areas where protection from dust and water ingress is required.

Q. What is the beam angle of this highbay?
A. The fitting has a 90° beam angle, providing a practical light spread for high ceiling and open area lighting.

All products must be installed by a licensed electrican. DIY electrical work is illegal and very dangerous.

Change of Mind
All products purchased from MJS Electrical Products & Supplies are backed by a thirty (30) day Peace of Mind Return Policy. All products returned must be in perfect unused condition, with all components, complete with original packaging. We will not allow returns on damaged or incomplete products. Proof of purchase is required. Should the product not be in original condition, please contact us before returning it as this may save you some unnecessary costs.

Damaged / Faulty Goods
If you find that the goods were damaged in transit or were faulty in some manner, please contact us within 24 hours of receiving the goods. We will organise for the return of the goods and arrange a credit towards your next purchase or send a replacement product. Customer will incur the cost of return postage and be credited the purchase price only. We recommend that you return your unwanted items using registered post or trackable courier. We can not be held responsible if returned items are lost in transit.

Warranties
Product warranties are governed by the respective manufacturers and / or suppliers warranty terms and conditions (available on request). We will not be liable to you or any third party for any loss suffered due to product failure. We will process product warranty claims through the respective manufacturers and/or suppliers. All warranties are void if the product is not installed by a licensed electrician.

Colour Black
Type LED Highbay Lights
Wattage 90W/120W/150W
Voltage 240V
Installation Area Indoor
IP Rating IP65
Colour Temperature Tricolour
Lighting Technology LED
PRODUCT INFO
SKU SHB23MP150TC2
Model # SHB23MP150TC2
Barcode # 9328623135482
Brand SAL
SHIPPING INFO
Shipping Weight 3.3000kg
Shipping Width 0.300m
Shipping Height 0.175m
Shipping Length 0.300m
