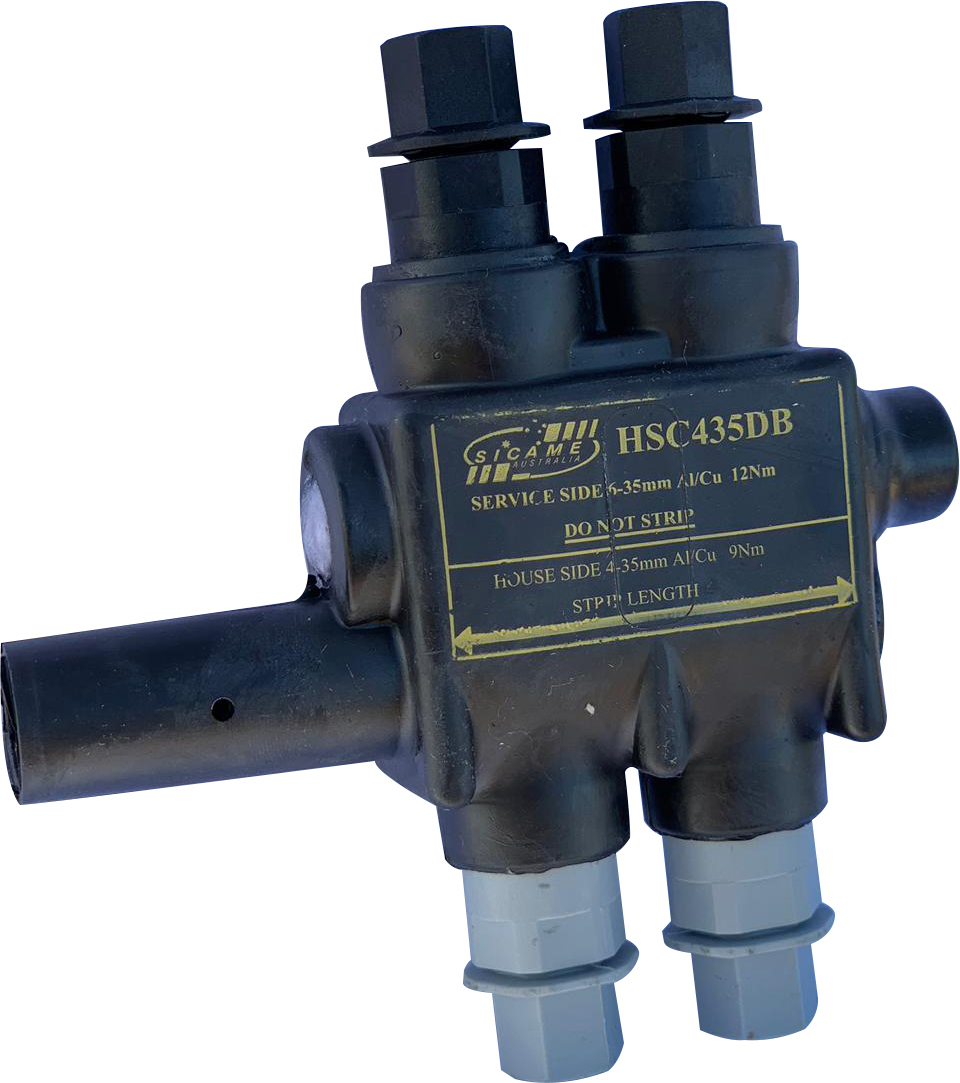

The Sicame HSC435DB House Service Connector Double Bolt joins the consumer mains (house side) to an insulated overhead service main (service side). It is a twin bolt connector designed mainly for the neutral connection, where the extra security of two bolts and two connection points helps guard against an incorrect or loose termination.

The connector is fully insulated and fitted with torque control shear-head bolts, so each connection is made to the correct torque without guesswork. No stripping is needed on the service side, which accepts insulated copper or aluminium conductors from 6 to 35mm², while the house side takes stripped aluminium or copper conductors from 4 to 35mm², as the connector is fully bimetallic. Viewing windows let you confirm the conductors are correctly inserted, and the IP67 rated body is made from UV stable thermoplastic elastomer.

Key Features

  • Double Bolt Design – Two bolts and two connection points for a more secure neutral connection.
  • Shear-Head Bolts – Torque control bolts shear off once the correct torque is reached.
  • No Stripping on Service Side – Teeth pierce the insulation of the overhead service main.
  • Wide Conductor Range – 6–35mm² service side and 4–35mm² house side.
  • Fully Bimetallic – Suits aluminium or copper conductors on both the service and house sides.
  • Viewing Windows – Confirm both conductors are correctly installed before tightening.
  • Fully Insulated – Totally insulated body for safer installation.
  • IP67 Rated – Waterproof and made from UV stable thermoplastic elastomer.
  • Colour-Coded Bolts – Black bolt for the service mains, grey bolt for the customer mains.
  • Fits Sicame Mains Boxes – Can be used on its own or inside a Sicame MCB series mains box.

Specifications

  • Model: HSC435DB
  • Service Side Range: 6–35mm² insulated copper or aluminium
  • House Side Range: 4–35mm² aluminium or copper (stripped)
  • Bolts: Two, torque control shear-head
  • Bolt Torque: 12Nm service side / 9Nm house side
  • Bolt Head: 13mm AF
  • Contacts: Tin plated brass teeth and tunnel
  • Body: UV stable thermoplastic elastomer, fully insulated
  • IP Rating: IP67

Applications

  • Neutral connections between overhead service mains and consumer mains
  • New overhead service connections to homes and small premises
  • Replacement of existing house service connectors

With two shear-head bolts, viewing windows and an IP67 insulated body, the Sicame HSC435DB gives a secure, visibly correct neutral connection between overhead service mains and consumer mains.

Q. What is the double bolt version used for?
A. The HSC435DB is predominantly used on neutral connections, where two bolts and two connection points give extra security against an incorrect or loose connection. Single bolt HSC435 connectors suit both phase and neutral connections.

Q. What conductor sizes does it accept?
A. The service side takes 6–35mm² insulated copper or aluminium, without stripping. The house side takes 4–35mm² stripped aluminium or copper, with about 17mm of insulation removed. The connector is fully bimetallic, so it suits aluminium or copper conductors on both sides.

Q. What tool do I need to tighten the bolts?
A. Use a 13mm AF six-point hexagon socket. The shear-head bolts break off once the correct torque is reached.

Q. Can it be used with flexible cables?
A. No. The HSC series is not suitable for multi-stranded flexible cables. Service connections must also comply with your local network's service and installation rules.

All products must be installed by a licensed electrican. DIY electrical work is illegal and very dangerous.
